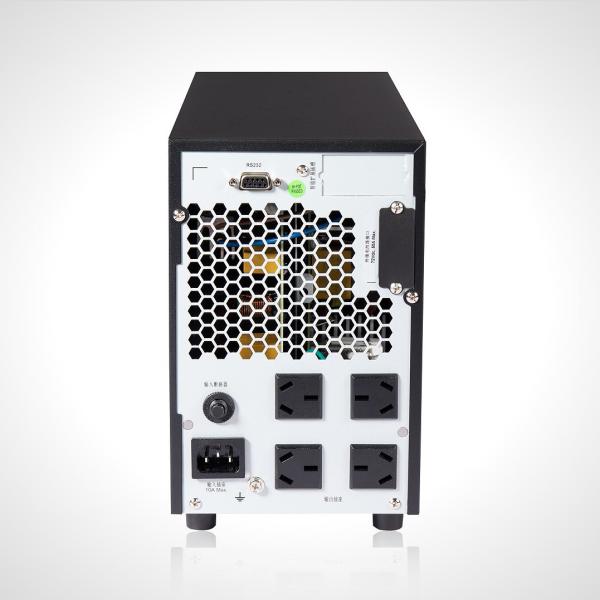

Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Double Conversion High Frequency Online Ups Single Input Single Output
Specifications
Brand Name :
SZDXZH
Model Number :
H2KL
Place of Origin :
CHINA
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
15-25 days
Packaging Details :
Woodcase/ Paper box
Model :
H2KL
Battery voltage :
36v
Size :
397*145*220
Description
Double Conversion High Frequency Online Ups Single Input Single Output
Product Introduction / Introduction

Power Range: 1- 10K VA

Working mode: single input and single output, double conversion online operation.

Application scope: Widely used in various industries such as government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical care, energy and electricity, etc.

Features:

·True online double conversion
·Microprocessor control ensures high reliability
·Input power factor correction
·Output power factor can reach 0.8
·Wide mains input range (110 V – 300 V)
·Efficient frequency conversion mode
·Generator compatible
·Optional exquisite SNMP card can be perfectly monitored alone or with USB, RS232
·Simple operation control through the display, and comprehensive display monitoring UPS status
·ECO mode provides energy saving effect
·Emergency power off (EPO)
·Models above 6K use DSP technology, built-in maintenance bypass switch (optional)
·Smart battery charging design extends battery life and performance
·Built-in isolation transformer (optional)

Technical Parameters

model H2KL
Phase Single-phase grounding
capacity 2000VA / 1600W
enter
Voltage range 110 -300VAC at 50% load
160 -280 VAC at 100% load
Frequency range 40Hz ~ 70 Hz
Power Factor ≧0.99
Output
Output voltage 200/208/220/230/240VAC
Voltage range (battery mode) ± 1%
Frequency range (synchronous correction range) 47~53 Hz or 57~63 Hz
Frequency range (battery mode) 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Surge ratio 3:01
Harmonic distortion ≦ 3% THD (Linear Load)
≦6% THD (non-linear load )
Conversion time AC to DC 0ms
Inverter to Bypass 4 ms (under standard conditions)
Waveform (Battery Mode) Pure sine wave
efficiency
Mains mode 88%
Battery Mode 85 %​
Battery
Standard Machine Battery Model 12V / 9AH
quantity 4
Maximum charging current 1.0A (max)
Long-acting machine Battery Model Depends on battery configuration
quantity 6
Maximum charging current 1A/2A/4A/6A (adjustable)
Appearance
LCD or LED display Load size, Battery capacity, AC mode, Battery mode, Bypass mode, Fault indication
Dimensions
Standard Machine Dimensions, depth x width x height (mm) 421 x 190 x 318
Net weight (kg) 27.4
Long-lasting models Dimensions, depth x width x height (mm) 397 x 145 x 220
Net weight (kg) 6.8
Usage Environment
Temperature and humidity Relative humidity 20-90 % and temperature 0- 40°C (non-condensing)
noise Less than 50dBA @ 1 meter
Control Management
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management supports SNMP management and network management

*When 1-3KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 80%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 80%. When
6/10KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 60%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 90%.
*The above commonly sold models do not support redundant parallel operation.
*200/208/220/230/240VAC is only applicable to long-term machines (200VAC is only applicable to 1-3KVA)
