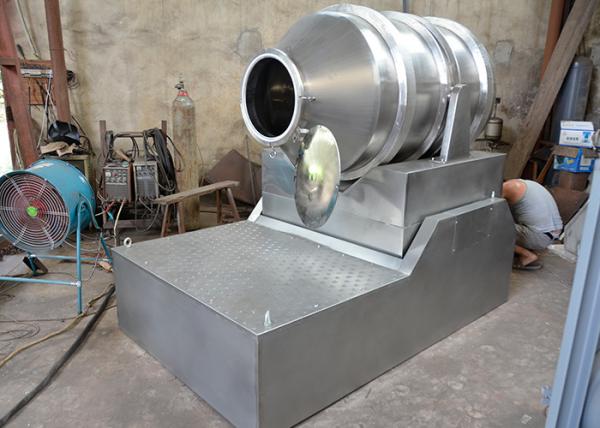

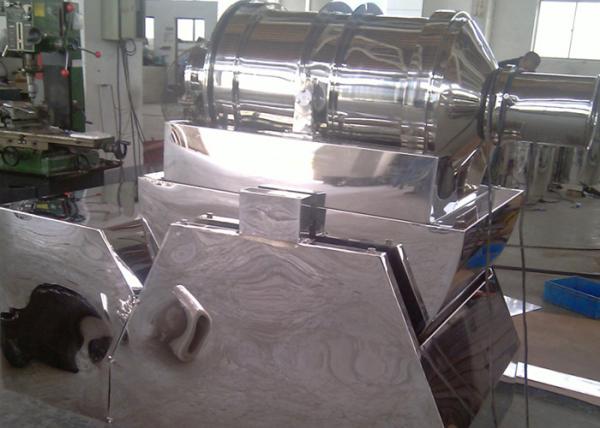

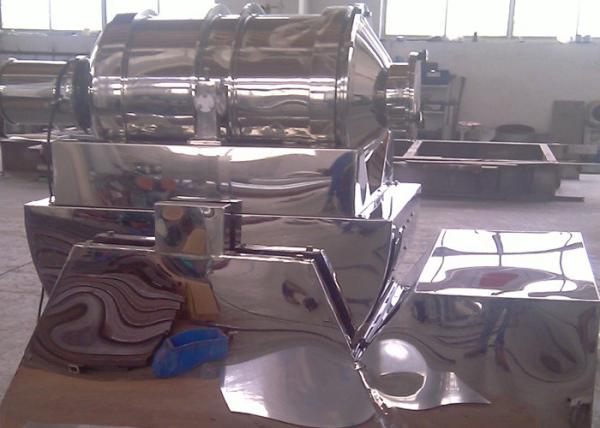

Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
XD
Certification :
CE CQC ISO
Supply Ability :
15 Piece/Pieces per Week
Packaging Details :
to be wrapped by a plastic film then packed in a wooden case according to size of machine, usually packed by seaworthy packing under export standard.
MOQ :
1 Set/Sets
Price :
Negotiable
Mixer Type :
Static Mixers
Max. Loading Capacity :
7500L
Condition :
New
Product Type :
powder
Application :
Powder
Additional Capabilities :
Milling
Voltage :
380V 50Hz
Spec :
SUS 304
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Shanghai
Description

Max Loading 7500L Industrial Powder Mixer EBH Two Dimensional Swing Mixer​

EBH Series Two Diemensional Swing Mixer

Main Application
The machine is widely applied for the mixing of dry powder and granules of pharmaceutical, chemical, foodstuff, fodder,fertilizer and pesticide industries, especially suitable for the mixing of large quantities of materials.
Characteristics
The mixing tank is a cylinder-shape barrel without any agitator inside, which makes the self-rotation around its
symmetry axis and also produces swing movement around its plain axis synchronized. Therefore the target material
inside of the barrel could be mixed diffusely and moveably with the features of short mixing time, high uniformity
and grinding and mixing at the same time.

Technical Data

Model 1000 1500 2000 2500
Mixing barrel volume(L) 1000 1500 2000 2500
Loading volume(L) 500 750 1000 1250
Loading weight(kg) 350 550 750 950
Swing power(kw) 1.5 1.5 2.2 2.2
Rotating power(kw) 2.2 3 3 4
Overall size(mm)
A 2500 2700 2900 3100
B 1390 1550 1670 1850
C 240 240 240 240
D 850 980 1100 1160
M 2040 2340 2540 2760
H 2180 2280 2440 2660

Loading weight is caculated with density of 0.5g/cubmeter, and special density of material should be marked.
