Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Specifications
Brand Name :
ASTAR
Model Number :
Gb/T 1732
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5 - 8 work days
Packaging Details :
Carton
Brand :
ASTAR
Scale length :
0–50 cm, 0–100 cm, 0–120 cm
Weight mass :
1000 g
Diameter of the steel ball :
8 mm
Anvil block edge radius :
2.5–3.0 mm
Total weight :
10 kg, 15 kg, 20 kg
Base dimensions :
210 mm × 210 mm × 200 mm
Description
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester

This Metal Coating Paint Impact Resistance Tester (Gb/T 1732) is designed in accordance with the standard GB/T 1732-1993 "Determination of Impact Resistance of Paint Films." The instrument determines the impact strength of paint films by dropping a weight from a specified height to strike the film surface.

The height of the weight is set by a control screw and can be read on the scale. Pressing the control screw compresses the control spring, aligning the holes in the control slider, control cover, and control base, thereby releasing the connected weight. The falling weight strikes the impact rod, which in turn acts downward on a test panel placed on the anvil block. After impact, the weight is lifted, and the tested panel is removed to examine the condition of the paint film.

Product Specifications
Brand Astar
Part Number Gb/T 1732
Name Filter Tube
Scale length 0-50 cm, 0-100 cm, 0-120 cm
Weight mass 1000 g
Diameter of the steel ball 8 mm
Delivery Time 3 days

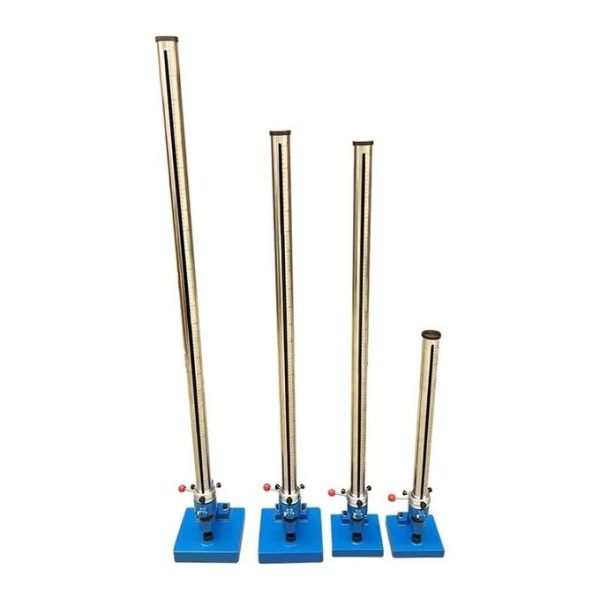

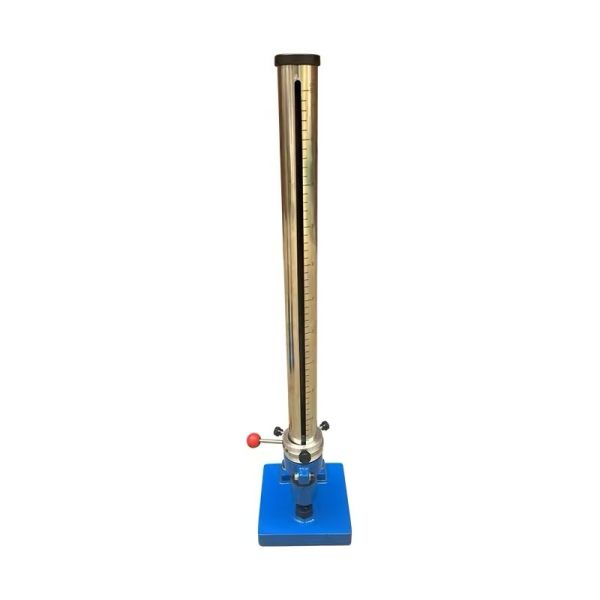

Product Images
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Key Features
  • Compatible with various powder coating systems
  • High quality materials and construction
  • Accurate dimensions for perfect fit
  • Consistent, reliable performance
Packaging

Paper box packaging

Product Demonstration
Gb/T 1732 Paint Film Impact Tester / Drop Hammer Impact Tester - Metal Coating Paint Impact Resistance Tester
Manufacturer Information

Astar Machinery Co., Ltd. is a comprehensive service provider in production, R&D and sales, specializing in electrostatic spraying equipment. Our product range includes electrostatic dust elimination equipment, electrostatic flocking machines, electrostatic powder spraying machines, electrostatic liquid spray machines, electrostatic spraying guns, high voltage modules, circuit boards, powder barrels, powder tubes, HV cables, reciprocators, spraying rooms, control cabinets, ovens, vibration sieves, and wind leaching rooms.
