Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Specifications
Model Number :
Stainless Steel filter
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, T/T, MoneyGram, PayPal
Dimensions :
Diameter 92 mm Length 170 mm
Operating Capabilities :
High temperature resistance
Function :
Powder Stream Fluidization
Place of Origin :
China
Packaging Details :
Cartoon Box
MOQ :
1
Delivery Time :
5 - 8 work days
Maintenance Feature :
Washable, reusable, backwash-friendly
Price :
Negotiable
Main Material :
304 / 316 Stainless Steel
Certification :
CE
Supply Ability :
100 pieces per month
Product Name :
Filter
Brand Name :
ASTAR
Description
Powder Coating Stainless Steel Filter 92×170
92×170 Sintered Mesh Conical Filter / Stainless Steel Fluid Strainer Cartridge
The 92×170 Multi-Layer Sintered Stainless Steel Conical Filter Element is engineered for high-precision industrial fluid filtration. Crafted from premium 304/316 multi-layer woven mesh through a high-temperature vacuum sintering process, it delivers structural stability, excellent high-pressure resistance, and high-temperature tolerance.
Technical Specifications
Product Name Multi-Layer Sintered Stainless Steel Conical Filter Element
Dimensions Outer Diameter 92 mm × Length 170 mm (Customizable)
Main Material 304 / 316 Stainless Steel Multi-Layer Sintered Wire Mesh
Structural Shape Conical Cartridge with Reinforced Open-End Flange Ring
Filtration Features High-precision screening, uniform pore distribution, high flow rate
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Key Advantages
Multi-Layer Sintered Stainless Steel Construction, Superior Structural Strength
  • Constructed from high-quality 304 or 316 stainless steel multi-layer woven wire mesh through high-temperature vacuum sintering
  • Interlocked mesh layers provide exceptional mechanical strength, maintaining stable pore size and geometry under heavy fluid flow
  • Offers outstanding resistance to high pressures, dynamic fluid impact, and extreme temperature variations without deformation
  • Completely eliminates wire migration or media shedding, ensuring pure and contaminant-free filtration performance
Precision Conical Structure with Reinforced Flange for Leak-Free Sealing
  • Engineered in a specialized conical (tapered) geometry to optimize fluid flow paths and increase effective filtration surface area
  • Features a heavy-duty reinforced mounting flange at the open end, ensuring tight, vibration-resistant positioning in filter housings
  • Guarantees 100% airtight and liquid-tight seal, preventing fluid bypass and protecting downstream precision components
  • Standard 92×170 dimensions allow seamless drop-in replacement and universal compatibility across various industrial equipment
High-Precision Fluid Filtration & Efficient Contaminant Interception
  • Uniform pore structure provides reliable micron-rated filtration to effectively trap fine powders, debris, and solid particles
  • Ideal for high-viscosity or high-velocity liquid streams, delivering smooth flow rates with minimal initial pressure drop
  • Highly versatile performance across diverse fluid media, including liquid paints, powder coating slurries, hydraulic oils, and process water
  • Enhances equipment operating stability and reduces maintenance-induced machinery downtime
Washable & Reusable Design, Significantly Lower Operating Costs
  • Fully corrosion-resistant and chemically inert, allowing safe exposure to aggressive acids, alkalis, and organic solvents
  • Supports multiple cleaning methods, including backwashing, chemical solvent rinsing, and ultrasonic cleaning
  • Fully restores filtration efficiency after cleaning, enabling continuous, long-term repeated use
  • Drastically reduces frequent filter element replacement expenses and lowers overall shop floor waste
Product Images

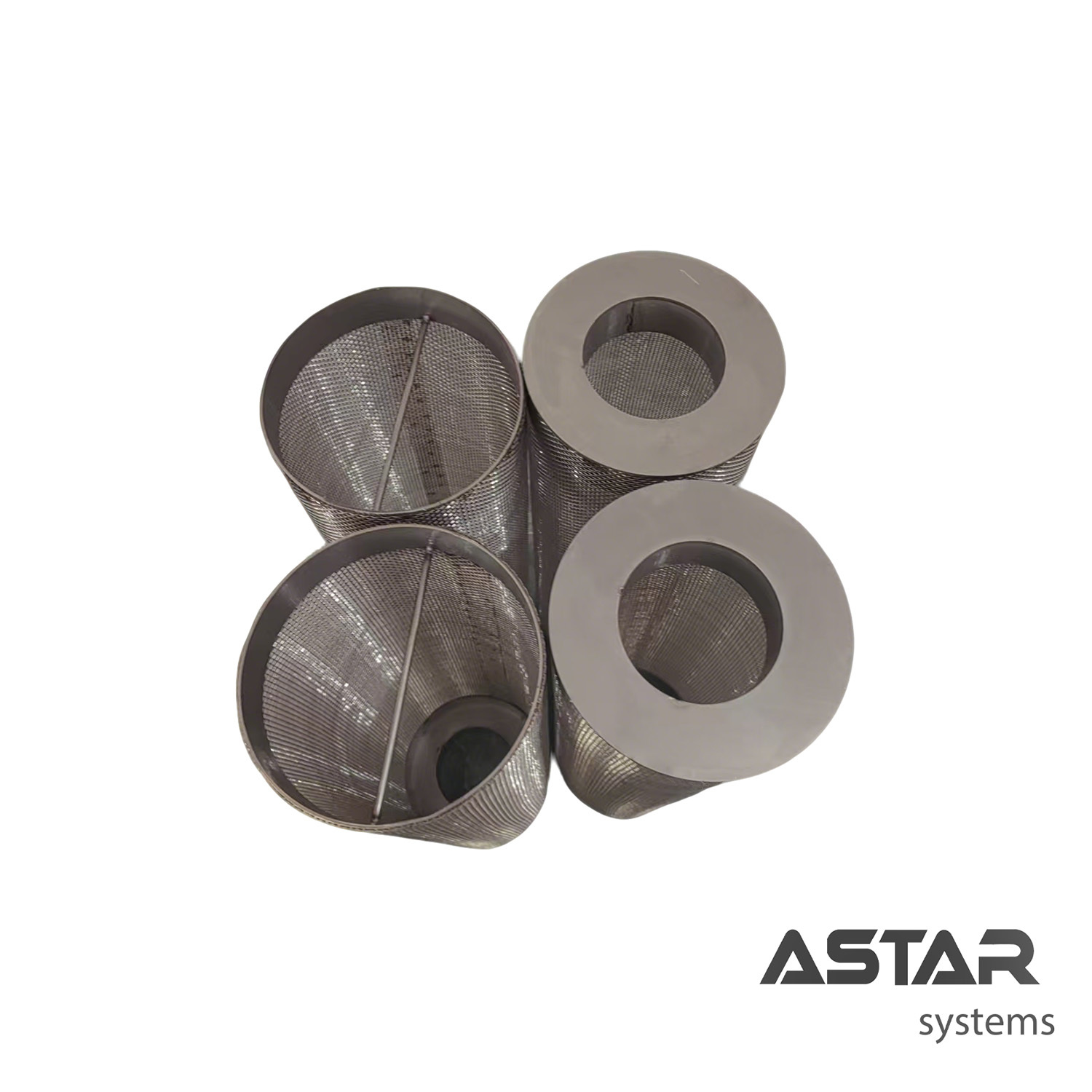

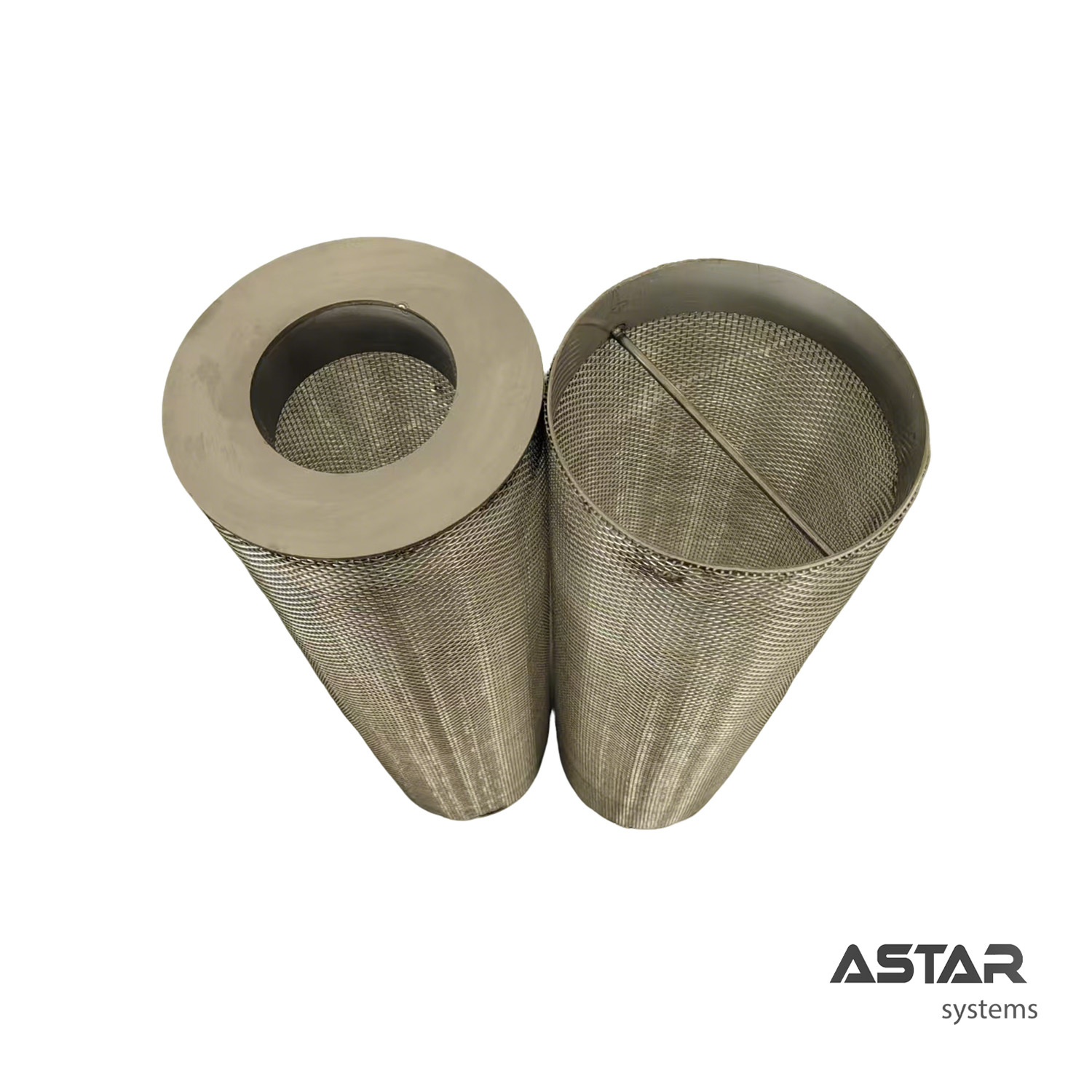

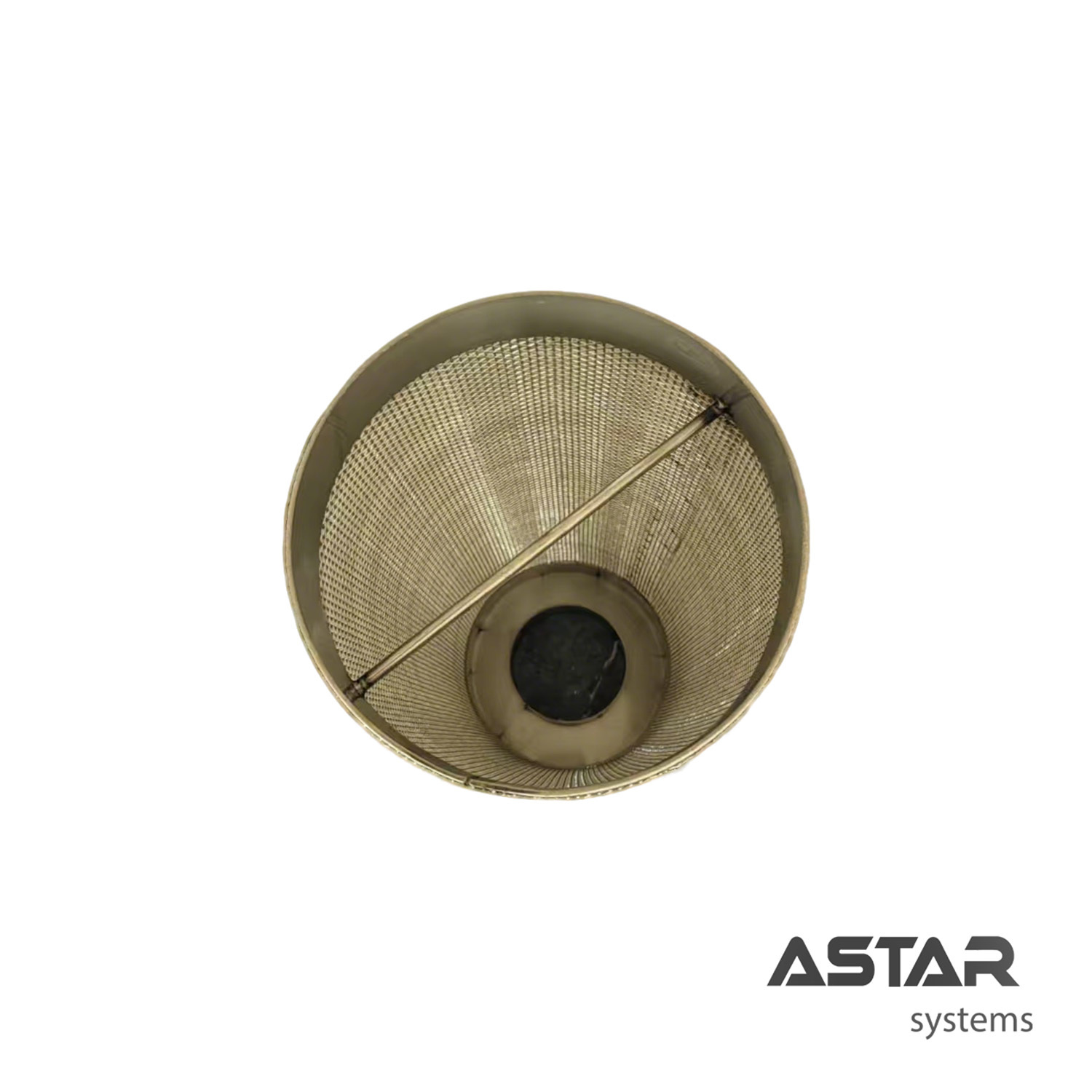

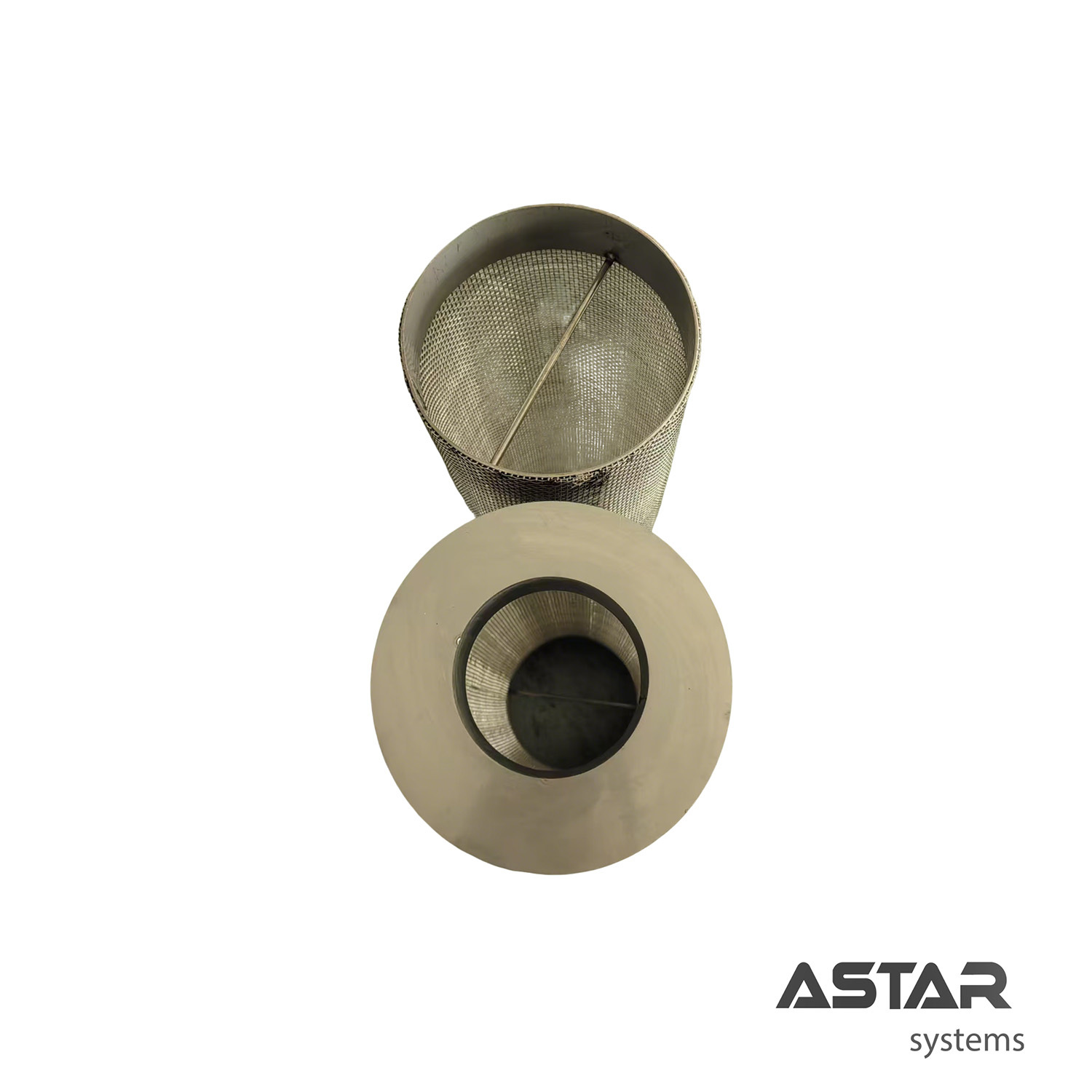

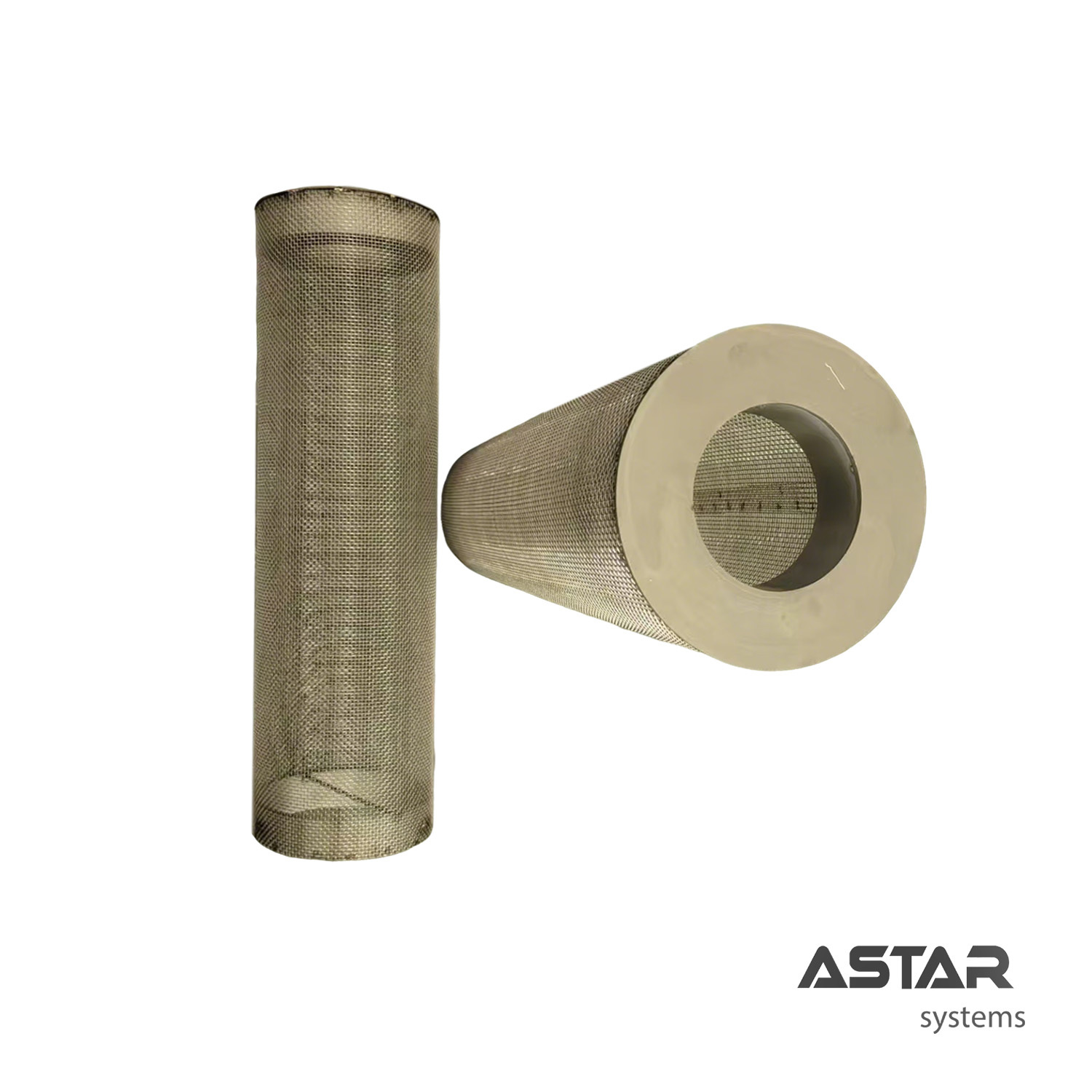

Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Manufacturer Information
Astar Machinery Co., Ltd. specializes in electrostatic spraying equipment including electrostatic dust elimination systems, flocking machines, powder and liquid spray machines, high voltage modules, control cabinets, and complete coating systems. One-stop Service Provider for Electrostatic Powder Coating with over 20 years of experience, providing full-chain supply chain services including production line design, processing, installation, commissioning, maintenance, and equipment spare parts supply.
Powder Coating Stainless Steel filter 92*170 For Powder Coating
Company Departments
Technical Department
7-member core technical team with over 20 years of industry experience
Foreign Trade Department
5-member professional team serving global markets
Production Department
5-member lean team focused on coating equipment installation
After-sales Service Department
2-member dedicated team providing full-process tracking
