QDWF Series Powder Grinding Machine System Equipped With A Special Silencing Device
QDWF Series Powder Grinding Machine System Equipped With A Special Silencing Device
Specifications
Brand Name :
HAOFENG
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
15-30 work days
Packaging Details :
upon request
Safety Features :
Overload protection, Anti-skid base
Features :
High efficiency, Low noise, Easy to clean
Condition :
New
Application :
Food, Chemical, Pharmaceutical industries
Description

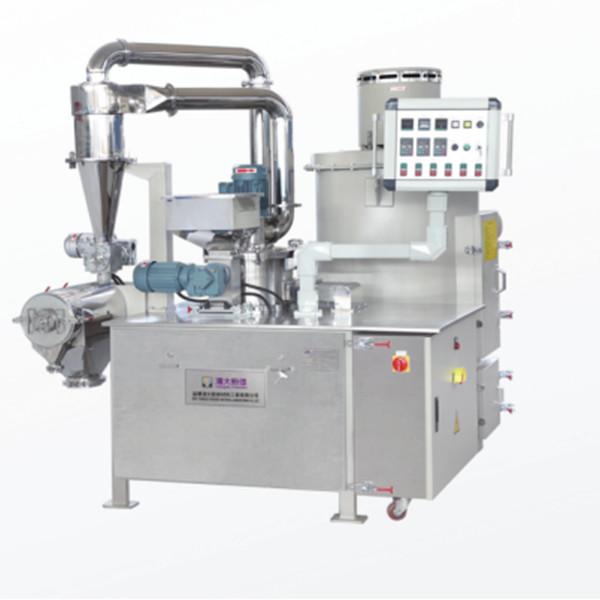

QDWF series grinding system

QDWF series grinder is a key equipment in whole powder coating production line, designed with functions of high speed milling , air classifying , cyclone sifting, and the fine powder collection, it can apply for production of pigment , calcium, carbonate , medicine and food etc.

Main features:

✸Stable particle size distribution, and the uniform particle size distribution can be adjusted.

✸High output and high recovery rate.

✸Low noise. Equipped with a special silencing device, it is easy to clean and maintain.

✸Meet the European ATEX explosion-proof design standard.

✸Safe and convenient operation.

Specification
Mode QDWF-07 QDWF-10 QDWF-20 QDWF-25 QDWF-30 QDWF-40 QDWF-50
Output(kg/h) 80-100 150-200 200-300 300-450 500-600 700-800 800-1000
Main motor(kw) 5.5 7.5 11 15 22 30 37
Main mill speed(rpm) 7500 7000 6000 6000 5000 4500 4000
Classifier motor(kw 1.1 1.1 2.2 3.0 4.0 4.0 5.5
Classifier speed(rpm) 0-2980 0-2980 0-2980 0-2980 0-2980 0-2980 0-2980
Feeding motor(kw) 0.37 0.55 1.1 1.1 1.5 1.5 2.2
Fan motor(kw 5.5 7.5 11 18.5 22 37 45
Overall dimension(m) 4.3×1.2×2.7 6.1×1.3×3.2 8×1.4×3.8 8×1.5×3.8 8×2.2×3.9 8×1.7×4 8×1.8×4
