Specifications
Place of Origin :
zhejiang
Brand Name :
huaxiang
Price :
$755.00/pieces 1-10 pieces
MOQ :
1
Type :
Coating Production Line
Substrate :
Steel
Condition :
New
Machine Type :
powder coating machine, Coating Equipment
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Coating :
Vacuum Coating
Dimension(L*W*H) :
customized
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
Showroom Location :
France, Saudi Arabia, Russia, Spain, Uzbekistan
Weight (KG) :
40
Product name :
spray coating machine
Function :
Metal Surface Powder Coating
Description
Manual Paint Spray Gun for Lightweight Portable Coating Production Line Weight KG 40

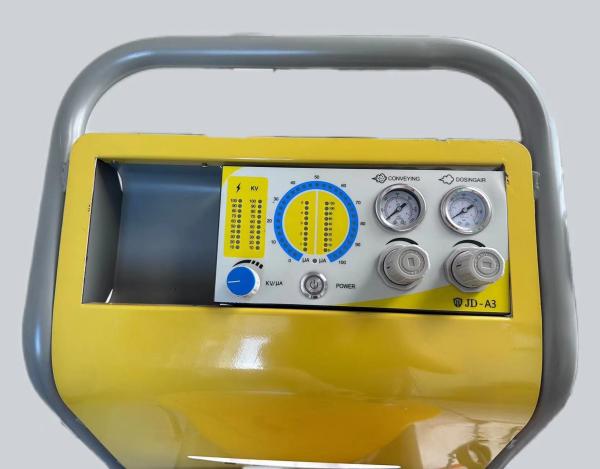

Factory Price Portable stainless steel electrostatic powder paint spray machine with manual paint spray gun fx-991

Electrostatic powder spraying is commonly known as "electrostatic spraying". Electrostatic powder spraying is a coating machine with atomizing nozzle (atomizing the paint) and discharge stage (generating electric current) to make the paint particles, apply an electric charge to it, form an electric field between the electrode and the coated object, and use its electrostatic adsorption to paint. Main features: The spraying method can be manual, automatic or manual + automatic. The spray material is 100% solid powder, the free powder can be recycled, and the paint recycling rate can reach 98%.

Voltage
100~240VAC
Frenquency
50/60HZ
power
50W
Safety Level
IP54
Ambient Temperature
0-40°C
Input Air pressure
0.55MPa(5.5bar,80PSI)
Maximum powder injection
600g/min
Gun weight
480g
Maximum Output Voltage
120kv
Maximum Output Current
120µA
The length of Powder Tube
3.5meters
Accessories included in the machine
Quantity
Gun
1 SET
Controller
1 SET
Low Temperature Soft Powder Pipe
1 SET /3.5Meters
Vertical Powder Pump
1 SET
Stainless Steel Barrel
1 SET /40L-45L
Overflow Pipe
1 SET
Movable Trolley
1 SET
Oil and Water Separator
1 SET
Consumables
Some
Net weight of machine
40KG
package Size ,Weight
500mm(L)*500mm(W)*1020mm(H), 45-50KG
