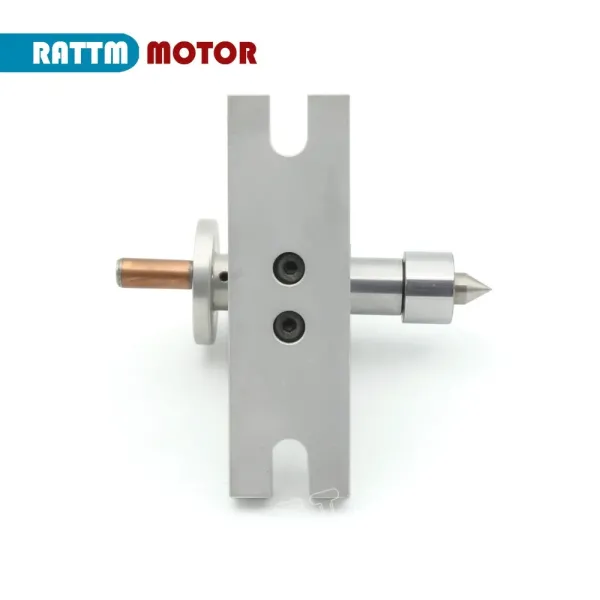

4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
Specifications
Brand Name :
Rattm Motor
Model Number :
K11-65mm
Certification :
CE CCC
Place of Origin :
China
MOQ :
1piece
Price :
$114.3-118.6
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000
Delivery Time :
2-7 work days
Packaging Details :
Independent anti-collision foam+outer box packaging for each product
Chuck :
K01-63mm
Jaws :
3/4
Center height :
44mm
Total height :
85mm
Angle :
0.3°/ step
Reducing ratio :
4:1(belt deceleration mode)
Description

CNC Fourth 4th A Rotary Axis K11-65mm K12-65mm With 3 4 Jaws Chuck With Tailstock For Lathe Accessories

4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck



Engraving machine 4th axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

Chuck type: K11-65mm or K12-65mm

Center height: 44mm

Total height: 85mm

Angle: 0.3°/ step

Reducing ratio:4:1(belt deceleration mode)

Stepper motor: Nema17 2-phase 4 wire

Accessories: Set of Anti-claw and wrenches

The fourth axis parameter settings:

Mach3 system settings: the pulses required for 1°

(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

(200 x 16 x 6) / 360=53.3333)

Weihong system settings: 1 pulse along the angle

360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

360 / (200 x 16 x 6) =0.01875

4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
