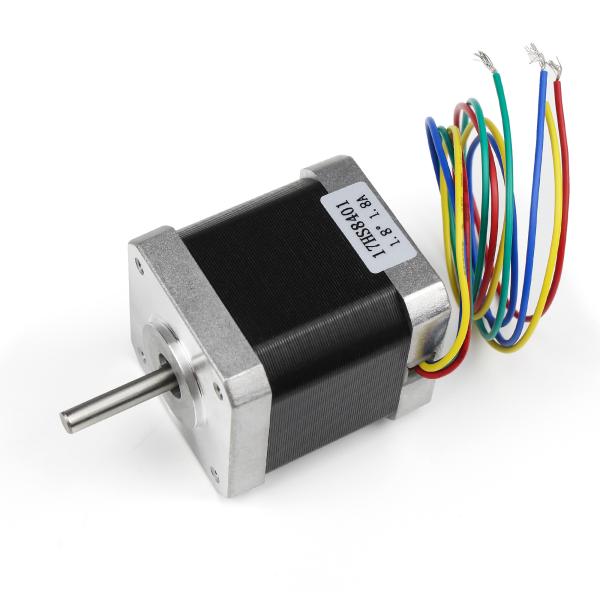

Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer
Specifications
Brand Name :
RATTM MOTOR
Model Number :
Single Shaft Worm Gear Motor
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$12.3-13.6
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100Pieces/day
Delivery Time :
3-5 work days
Packaging Details :
carton case, 42*42*48
Step Angle(°)| Length(mm)| Current(A) :
1.8
Motor length :
48mm
Rated current :
1.8
Inductance :
3.2
Motor weight :
400
Wire :
4
Description

Nema17 stepper motor 17HS8401 2 phase four-wire 48mm For CNC / 3D printer accessories

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(17HS8401,1.8A,78 oz-in or 4.8kg.cm holding torque,5mm diameter shaft):

Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer

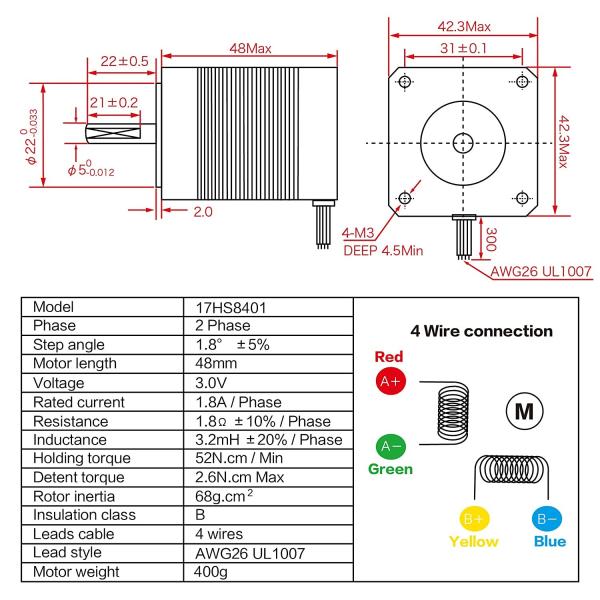

Drawing:

Nema17 CNC Stepper Motor 17HS8401 2 Phase Four Wire 48mm For 3D Printer



Wiring:

Red: A+

Green: A-

Yellow:B+

Blue: B-


Usage or Application

This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,
packaging and other industries automation equipment.
