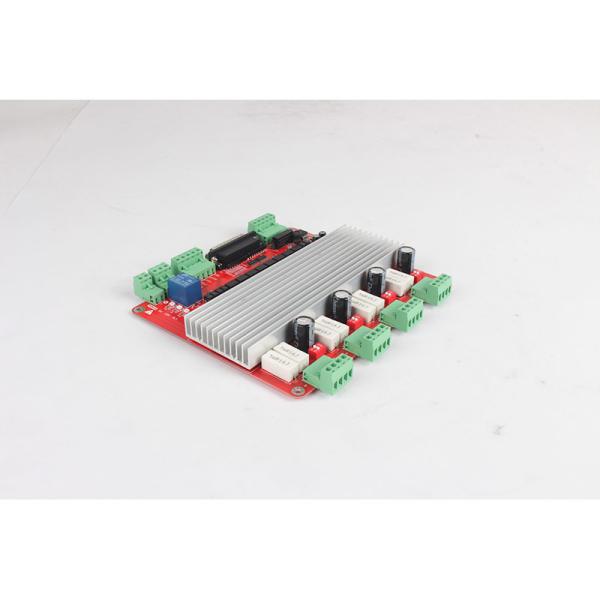

4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving
Specifications
Brand Name :
RATTM MOTOR
Model Number :
TB6560 4V type
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD42/Piece
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100Pieces/day
Delivery Time :
3-5 work days
Packaging Details :
Carton case, 18*18*5cm
Motor Type :
Stepper Motor
Power Supply :
DC
Color :
Red
Size :
18 x 18cm
Weight :
0.80kgs
is_customized :
Yes
Voltage :
12-32V DC
chip :
TB6560
Description

4-Axis CNC TB6560 Stepper Motor Driver Interface Card CNC Control Board V For CNC Router Engraving Milling

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax

Package include:

1 x 4 Axis TB6560 Stepper Motor Driver board

1 x DB25 parallel cable

1 x Fan

4 x M4 screw

English user manual will send by email.

4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving

4 axis CNC controller TB6560 stepper motor driver board Products Features:

1) The advantages of the TB6560AHQ chip

2) Flush type low heat The area of the chip can support itself to cool when the current is low

3) Supports a lot of stepper motors

4) The advantages in the high-speed running condition

4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving

Features:

1) 4-wire 0-3.5A normally 3A , the 3.5A is the peak currentcan be regulated rate current output, bipolar stepper motor driver

2) Standard parallel port , supports Mach2/3,EMC2, KCAM 4 etc.

3) Optical isolated (IO) and DCDC power isolated to protect the PC parallel port and other equipments

4) Limit and emergency stop port ( standard DB9 port)

5) 4 working modes: mixed mode , fast mode, slow mode, standard mode

6) 4-microstep: 1 1/2 1/4 1/16

7) 12-32V single power input uses the switch power chip as the 5V power supply, stable and low heat

8) Adopts RC + 7414 auto semi-flow

9) The relay output can control the main axis

10) 5th axis extension control port

4 Axis TB6560 Stepper Motor CNC Controller Board For CNC Router Engraving

Question and Answer:

Q1:why other supplier's TB6560 driver has 3.5A/3A current,but yours is 2.5A?

A :TB6560 chip average output current is 2.5A,peak current is 3.5A,and can drive small than 3A stepper motor,

ours 2.5A means the top average output current in real,also it is a long time security value,this is not design problem,

it is according to the TB6560 chip self specification.

Friendly Note:

It is not worthy to save small money to buy a driver board but broken mainboard or lose step and skewing when engraving.
