Automatic Poultry Feeding Pan Broiler Farm Floor Raising System

Product Overview

Automatic Broiler Floor Rearing System is a complete cage-free poultry farming solution designed for commercial broiler chicken houses. Our floor raising system allows birds to move freely on the ground while enjoying fully automated feeding, drinking, and environmental control, promoting natural growth behavior and improving flock health.

Suitable for broiler farms ranging from 500 to 50,000 birds per house, our system integrates pan feeding lines, nipple drinking lines, ventilation systems, and intelligent control units to deliver reliable, cost-effective production results.

Automatic Poultry Feeding Pan Broiler Farm Floor Raising System

Automatic Poultry Feeding Pan Broiler Farm Floor Raising System

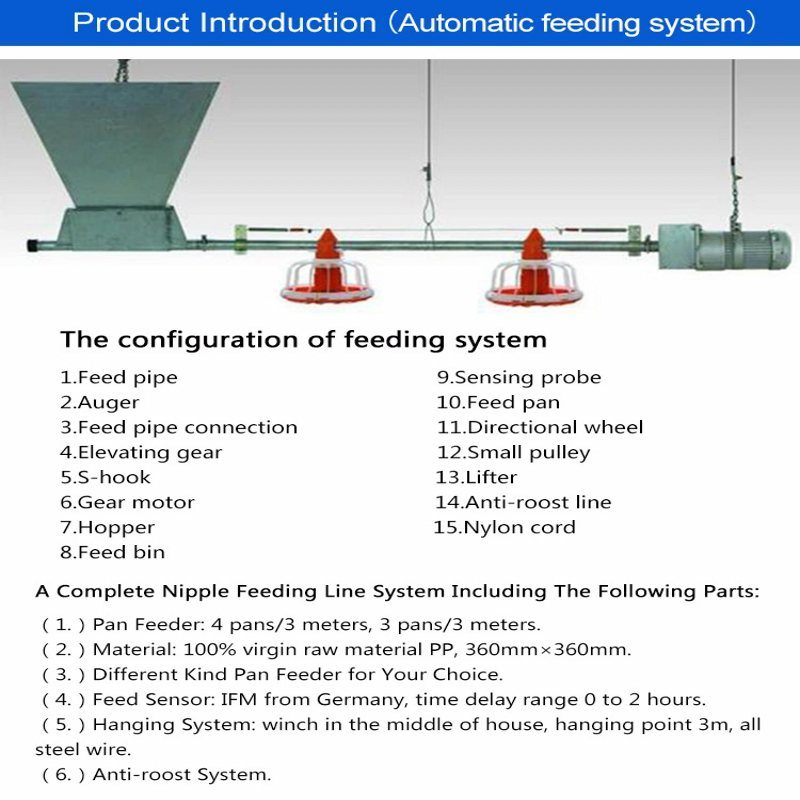

System Components
Component Specification
Pan Feeding Line 14/16/18-grill feed pan, 330mm diameter, 45-65 birds/pan
Auger Conveyor 20/073 model, 0.55kW motor, 0.6T/h feeding speed
Nipple Drinking Line 360° stainless steel nipple, anti-leak design with drip cup
Water Pressure Regulator 0-8 level precise adjustment
Winch Lifting System Height adjustable for different growth stages
Control Unit Automatic feed timing & environment monitoring
Automatic Poultry Feeding Pan Broiler Farm Floor Raising System
Key Features & Advantages
Fully Automatic Feeding
  • Auger delivery system ensures uniform feed distribution
  • 14 individual feeding positions per pan reduce crowding
  • Adjustable feed level minimizes waste and saves cost
  • Winch lifting system adapts to chick to market weight growth
Clean Drinking Water System
  • 360° trigger stainless steel nipples, high sensitivity
  • Drip cups collect residual water, keeping litter dry
  • Reduces ammonia buildup and prevents breast blisters
  • UV-resistant PVC pipe, durable for long-term use
Cage-Free Welfare Design
  • Birds move freely, express natural scratching behavior
  • Lower stress environment improves feed conversion rate
  • Suitable for broiler, breeder, and layer pullet rearing
  • Meets international animal welfare standards
Durable & Easy Maintenance
  • Food-grade PP material, UV and aging resistant
  • Galvanized steel structure, anti-corrosion
  • Modular design for quick installation and replacement
  • 1-year warranty with lifelong technical support
Automatic Poultry Feeding Pan Broiler Farm Floor Raising System
Technical Parameters
Item Parameter
Feed pan capacity 150kg live weight / pan
Feeding speed 0.6 ton/hour
Motor power 0.55kW - 1.1kW
Stocking density 8-12 broilers per m²
Voltage 220V / 380V, 50/60Hz
Material PP raw material + galvanized steel pipe
Package size 60cm × 60cm × 60cm / carton
Gross weight 22kg / carton
Application Scenarios

Our floor rearing system is widely used in:

  • Commercial broiler chicken farms
  • Breeder poultry houses
  • Layer pullet rearing farms
  • Duck and goose floor raising farms
  • New farm construction and existing house renovation

We provide custom design services based on your house dimensions, bird quantity, and local climate conditions. Free layout design available upon inquiry.

About Qingdao Suwang

QINGDAO SUWANG ANIMAL HUSBANDRY EQUIPMENT CO., LTD. is a professional manufacturer specializing in poultry farming equipment. With ISO9001 and SGS certification, we supply complete poultry house solutions to over 30 countries worldwide. Our factory ensures strict quality control and fast delivery for every order.
