AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
Specifications
Brand Name :
AA4C
Model Number :
LS110
Certification :
ISO
Place of Origin :
Shanghai, China
MOQ :
5pcs
Price :
$1,000.00 - $2,000.00/Cases
Supply Ability :
10000 Carton/Cartons per Year
Packaging Details :
AA4C tint meter LS110 optical transmittance meter light transmittance meter
Warranty :
12 Months
Product name :
tint meter LS110 optical transmittance meter light transmittance meter
Color :
Red
Function :
tint meter
Model :
LS110
Payment term :
T/T 30% Deposit
Voltage :
AC 220V 50Hz
Material :
optical transmittance meter
Weight :
12.8kg
MOQ :
1 Set
NAME :
light transmittance meter
Description

AA4C tint meter LS110 optical transmittance meter light transmittance meter

Download User Manual of tint meter LS110 Tint Meter LS110 User Manual.pdf

Overview
Product Description
Descriptions:

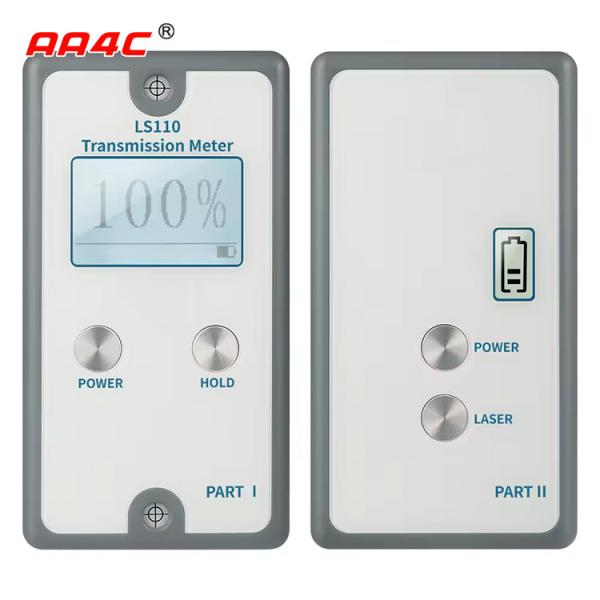

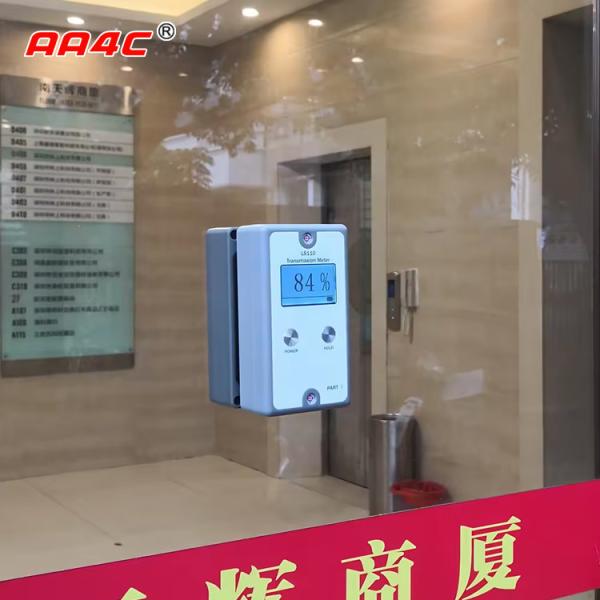

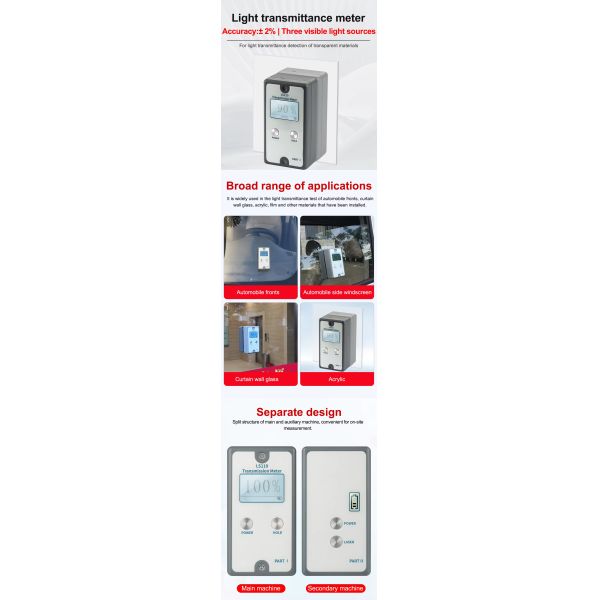

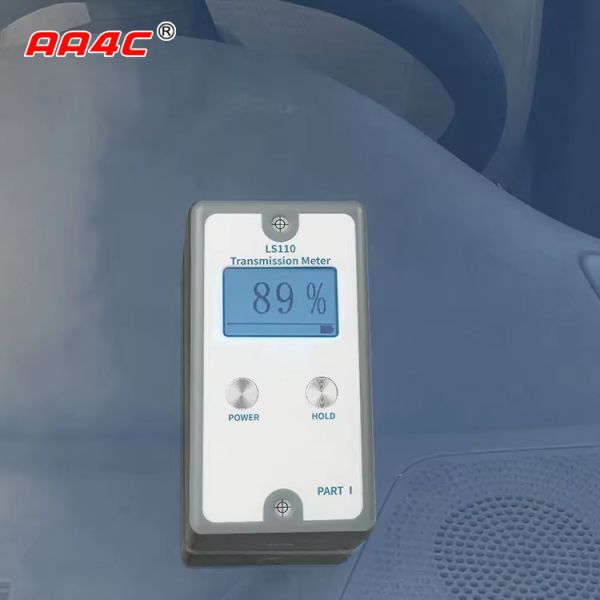

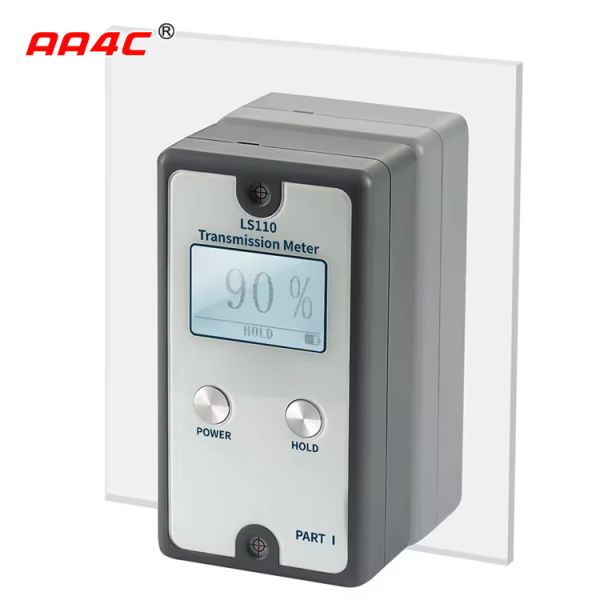

LS110 light transmittance meter adopts split design, which consists of two parts: main unit and auxiliary unit. The main machine and sub machine come with super strong magnetic force, which can be automatically suctioned together. It is widely used in the light transmittance test of automobile fronts, curtain wall glass, acrylic, film and other materials that have been installed. Measured with three visible light sources, the displayed value is the average of the three measurements. Data locking function, easy to remove from the sample under test to view the data.
Features:
1. Split structure of main and auxiliary machine, convenient for on-site measurement.

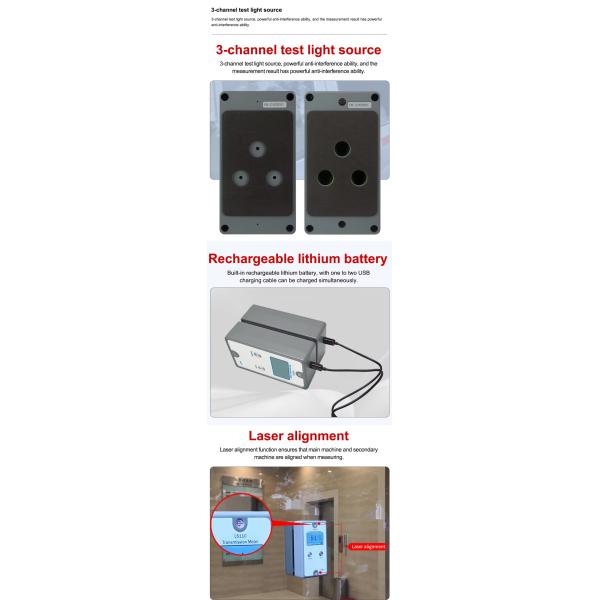

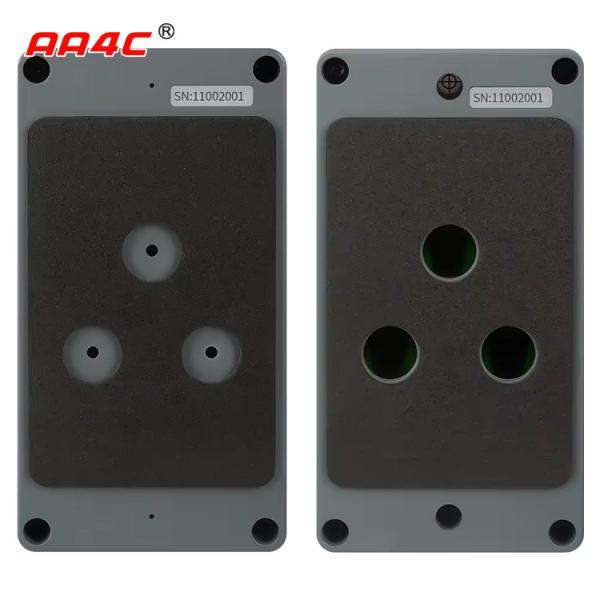

2. 3-channel test light source, powerful anti-interference ability.
3. Built-in rechargeable lithium battery, with one to two USB charging cable can be charged simultaneously.
4. Laser alignment function ensures that main machine and secondary machine are aligned when measuring.

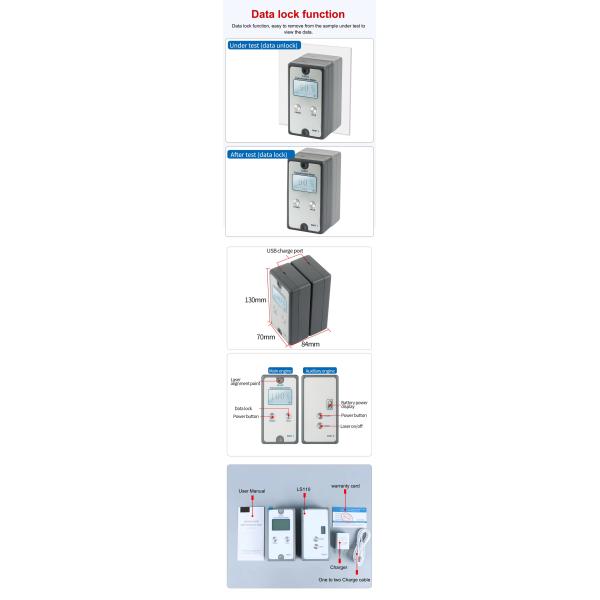

5. Data lock function, easy to remove from the sample under test to view the data.
6. High precision, to ensure that it can pass the test of the authoritative metrological institute.
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
AA4C Tint Meter LS110 Optical Transmittance Meter Light Transmittance Meter
High precision
High precision, to ensure that it can pass the test of the authoritative metrological institute.
Specifications
Parameter
Value
Spectral range
380nm-760nm full wavelength, in line withCIE photopic luminosity function
Measurement accuracy
± 2% (colorless and uniformtransparent materials)
Resolution
0%~10%: 0.1%; 10%~100%: 1%
Test samplesize
Greater than 40mm*40mm
Power supply
Built-in lithium rechargeable battery
Dimension
130mm × 70mm × 84mm (L*W*H)
Weight
630g

Note

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
2. Please allow 1-2cm measuring deviation due to manual measurement.
No.
Description
Quantity
Unit
1
LS110 transmission meter
1
Set
2
User Manual
1
Pcs
3
Certificate / warranty card
1
Pcs
4
Charger
1
Pcs
5
One to two Charge cable
1
Pcs
6
Packing box dimension 25*21*7 cm(L*W*H)
1
Pcs
