Parameters

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), bending steel without covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

Main System

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.426mm thick steel, anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,300mm high,quadrate steel support,5 rows of grills

-2 ramps,external setting,900*2000mm(W*L)/pc

Ventilation system

Inlet fan

2*4kw double-intake centrifugal fans, model: YDW4.5L1, air capacity:12500m³/h for each set

Outlet fan

1*5.5kw double-intake centrifugal fans, model: YDW4.5S, air capacity:16000m³/h for each set

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .

-Cabinet for the fan*1unit ,air duct*2m long*1unit,

-Elbow:90°*1 unit

Airflow speed

0.35m/s,ventilation rate:280time/h

Heating system

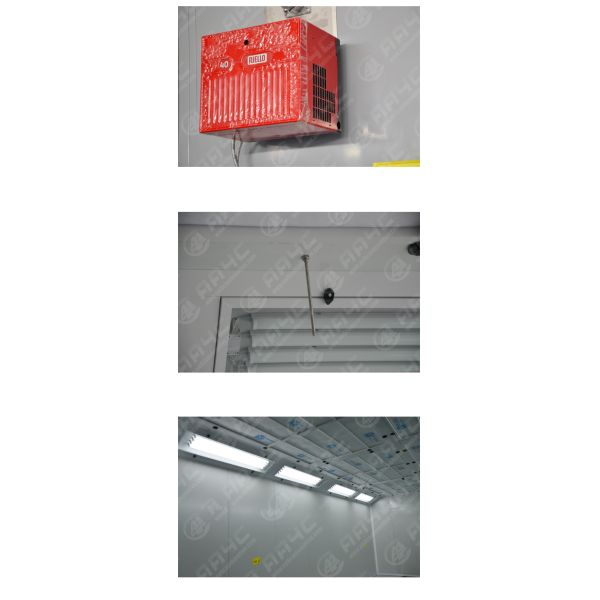

Burner

Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h, with BELIMO 10N electric damper

Heat Exchanger

1.2mm thickness SUS304 stainless steel

Cabinet

Rock-wool insulation*1 unit

Lighting system

Ceiling lights

32pcs*36w Philip tubes with electronic ballast .

Side lights

16pcs*36w Philip tubes with electronic ballast .

Filtering system

Primary filter

Grade G2 plate type , filtering rate>83%

Ceiling filter

EU5 grade high efficient filter,filtering rate>98%

Floor filter

Multi-layer fiberglass filter,filtering rate>70%

Active carbon

Grade G4,purifying rate of bug dust≥85%

Control system

Control panel

Intelligent control system

Function

Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc

Total power

15.5KW

Voltage/Frequency

380V,50HZ,3 phase

Trade Terms

FOB / CFR

MOQ

3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)

Port

SHANGHAI

Shipment

BY SEA /AIR

Payment Terms

T/T

Payment condition

30% prepayment,balanced againt BL copy&L/C at sight.

Supply Capability

1000units/month

Sample Availability

Yes ,But all freight(Inland freight +seafreight) covered by buyer

Sample package

Post :2900*500*720mm ; Power unit: 940X280X370mm

Sample Time

5-10days(depends on whether have in stock)

Lead Time

25-30days(Rush season 5-10days longer)

Packing

Metal frame&Carton

Delivery time

30-45days shipping time (depends on destination position)

Service

1% free parts;1year warranty after port of destination
