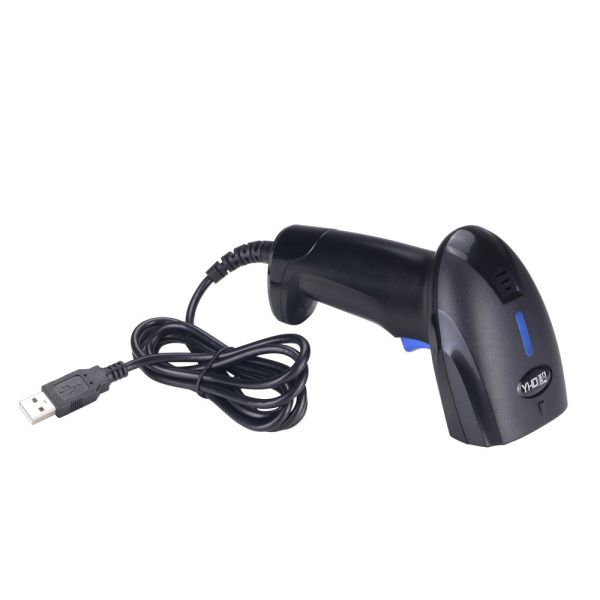

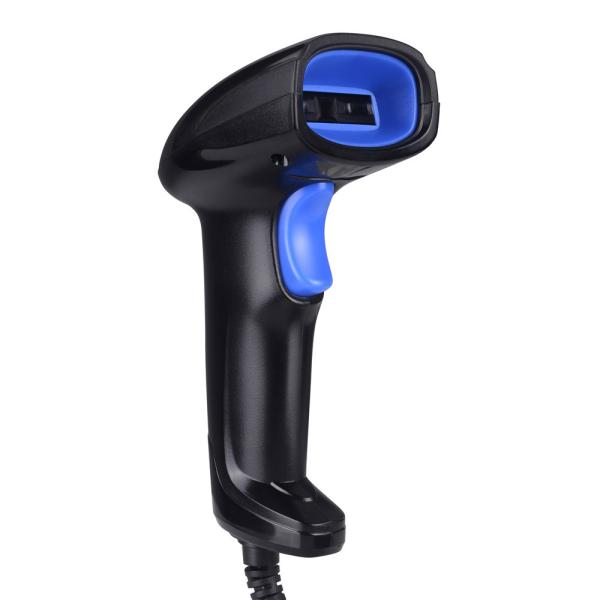

IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
IP54 Handheld Wireless Barcode Scanner 1D 2D Automatic Barcode Reader
Specifications
Brand Name :
hui life
Model Number :
sq4
Certification :
ce,fc
Place of Origin :
china guangzhou
MOQ :
10
Price :
10 dollars
Payment Terms :
T/T
Supply Ability :
300000
Delivery Time :
5-8work days
Packaging Details :
carton
Name :
Handheld Wireless Barcode Scanner
Storage: :
100,00 barcodes
Distance： :
500m
CPU： :
ARM 32-bit Cortex
Sensor： :
640*480 CMOS
Optional Sensor： :
CMOS 1280*800
Resolution  ： :
4mil
Battery: :
3.7V-2600mAh
Indication： :
Buzzer & LED
Field of View： :
36 °(H) X27 °(V)
Decode Capability： :
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5， Coda bar，MSI Plessey，RSS，etc. 2D: QR Code, Data Matrix，PDF417，Aztec code，Maxicode，etc.
Light Source： :
617LED
Trigger Mode： :
Handheld,Continuous,Auto-Induction
Scanning angle： :
Scanning angle：Angle of rotation±360°，inclination± 65°，declination ± 60°
Working current： :
38mA--185mA(max peak)
Standby current  ： :
18uA-5mA
Anti interference: :
0-100000 Lux Max
Interface : :
USB，USB-COM
Button life ： :
5000,000 times
lumination： :
6500K LEDs
LED life： :
100000 hours
Transmission： :
Bluetooth/2.4G/Wired
Description

Factory Direct Sales Wireless 1D 2D Handheld Barcode Scanner Automatic Barcode Reader for Warehouses Hospitals Scenic Spots Precise Scanning Performance

  • Factory direct sale, Low price high performance.
  • No driver needed, plug and play.
  • Support reading bar codes from screen.
  • Applying CMOS image technology, easy to scan.
  • Powerful decode ability, fast scanning 1D/2D barcodes.
  • Support the multinational language keyboard.
  • Supports Handheld / Continuous / Auto-Induction , 3modes for option.
  • Dopt a highly integrated design, high quality shell, have IP45 protection grade.
  • Support connection with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
  • Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

Scanner parameters:

Product Specification: sq4 2D Wired Barcode Scanner
CPU:ARM 32-bit Cortex Sensor:CMOS 640*480
Resolution :4mil Light aimer:624nm LED
Printing Contract :≥25% Material:ABS+PC
Indication:Buzzer & LED Interface : USB / RS232 / TTL / KBW
Decoding speed:500scans/sec Anti inference:0-100000Lux Max
Button life :5000,000 times Voltage:5V DC
Depth of Field 13mil-EAN13 40-250mm
4mil-code39 50-90mm
20mil-QR 40-290mm
10mil-PDF417 40-260mm
Decode Capability:

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,RSS,Codabar,ISBN,ISSN,GS1 DataBar(RSS14)etc.

2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.
Trigger Mode:Handheld,Continuous, Auto-Induction
Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60°
Current: 80mA(working current), 30mA(standby current )
Temperature: -20℃-50℃(Working) -40℃-60℃(Storage)
Drop test :2m
Operating Humidity: 5 - 95% (non-condensing)
Certificate :CE,FCC,RoHS,IP54
