25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Specifications
Material :
High-strength aluminum alloy + wear-resistant rubber
Stopping Distance :
8.7m at 60km/h
Surface Finish :
Outdoor-grade electrostatic spraying
Supply Ability :
300 units per month
Color :
Engineering Yellow / Orange-Yellow
Structure :
Foldable + bottom wheels
Price :
USD 2700/unit
Certification :
ISO 9001
Weight :
25kg
Brand Name :
RMHs
Model Number :
Tomarukun
Place of Origin :
CHINA
Payment Terms :
L/C,T/T
Delivery Time :
30
Packaging Details :
Packed in cartons, 208 units per 40' container
Operating Dimensions :
W830 × L860 × H1080mm
MOQ :
50 units
Folded Dimensions :
W830 × L1090 × H365mm
Description
Lightweight Mobile Vehicle Barrier Stopping Device 25kg for Construction Safety
Product Overview

Tomarukun is a lightweight vehicle interception device designed for low-speed scenarios such as municipal road construction and temporary work zones. Made of high-strength aluminum alloy and weighing only 25kg, it features a foldable structure with bottom wheels, allowing one person to handle both deployment and storage. The device combines high-visibility engineering yellow warning with physical braking - upon vehicle impact, it lifts the front wheels through lever principle and brakes via the bottom rubber pad friction, achieving a stopping distance of only 8.7 meters at 60km/h, effectively protecting construction workers and drivers.

25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Technical Specifications
Item Specification
Product Name Tomarukun Stopping Device
Weight 25kg
Material High-strength aluminum alloy + wear-resistant rubber
Surface Finish Outdoor-grade electrostatic spraying (rust-proof and weather-resistant)
Color Engineering Yellow / Orange-Yellow
Operating Dimensions W830 * L860 * H1080mm
Folded Dimensions W830 * L1090 * H365mm
Structure Foldable + bottom wheels
Optional Accessories LED light guide plate / LED arrow indicator board
Applicable Scenarios Municipal construction, road maintenance, temporary work zones
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Braking Performance
Speed Stopping Distance (Dry Asphalt Road)
40km/h Approx. 3.0m
60km/h Approx. 8.7m
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Key Advantages
  • Warning + Interception - Dual Protection: High-visibility engineering yellow appearance alerts drivers from a distance while providing effective physical braking when vehicles improperly enter restricted areas.
  • Efficient Braking - Stops Within an Extremely Short Distance: Only 8.7 meters stopping distance at 60km/h, effectively preventing vehicles from rushing into work zones.
  • Lightweight Design - One Person Can Handle It: Weighing only 25kg, one person can deploy and store without mechanical equipment assistance.
  • Foldable Storage - Saves Space and Reduces Costs: Height reduces from 1080mm to 365mm when folded, saving two-thirds of space for transport and storage.
  • Bottom Wheels - Flexible and Effortless Relocation: Equipped with bottom wheels for easy on-site adjustments without lifting or carrying.
  • Outdoor Coating - Durable and Low-Maintenance: Outdoor-grade electrostatic spraying provides rust resistance, corrosion resistance, and UV resistance.
  • Optional LED - Equally Visible at Night: Optional LED indicator board for active illumination during nighttime or low-visibility conditions.
  • Aluminum Alloy Material - Safe and Eco-Friendly: High-strength aluminum alloy is non-flammable and recyclable, meeting environmental requirements.
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety 25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety 25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Competitive Comparison
Comparison Item Tomarukun Traffic Cones Concrete Barriers
Warning Function ✅ High-visibility yellow + optional LED ✅ Reflective strips ❌ None
Physical Interception ✅ Stops at 8.7m from 60km/h ❌ Collapses upon impact ✅ Rigid interception
Weight 25kg Lightweight Hundreds of kilograms
Mobility ✅ Push and go ✅ Carry by hand ❌ Requires crane
Foldable Storage ✅ Height reduces by nearly two-thirds ❌ Non-foldable ❌ Non-foldable
Operators Required 1 person 1 person Crane + multiple personnel
Deployment Time 1 minute 1 minute Several hours
Eco-Friendly Material ✅ Aluminum alloy, recyclable ❌ Plastic, hard to degrade ✅ Recyclable but energy-intensive
Secondary Risk Non-flammable No interception function Rigid impact causes severe damage
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
User Guide

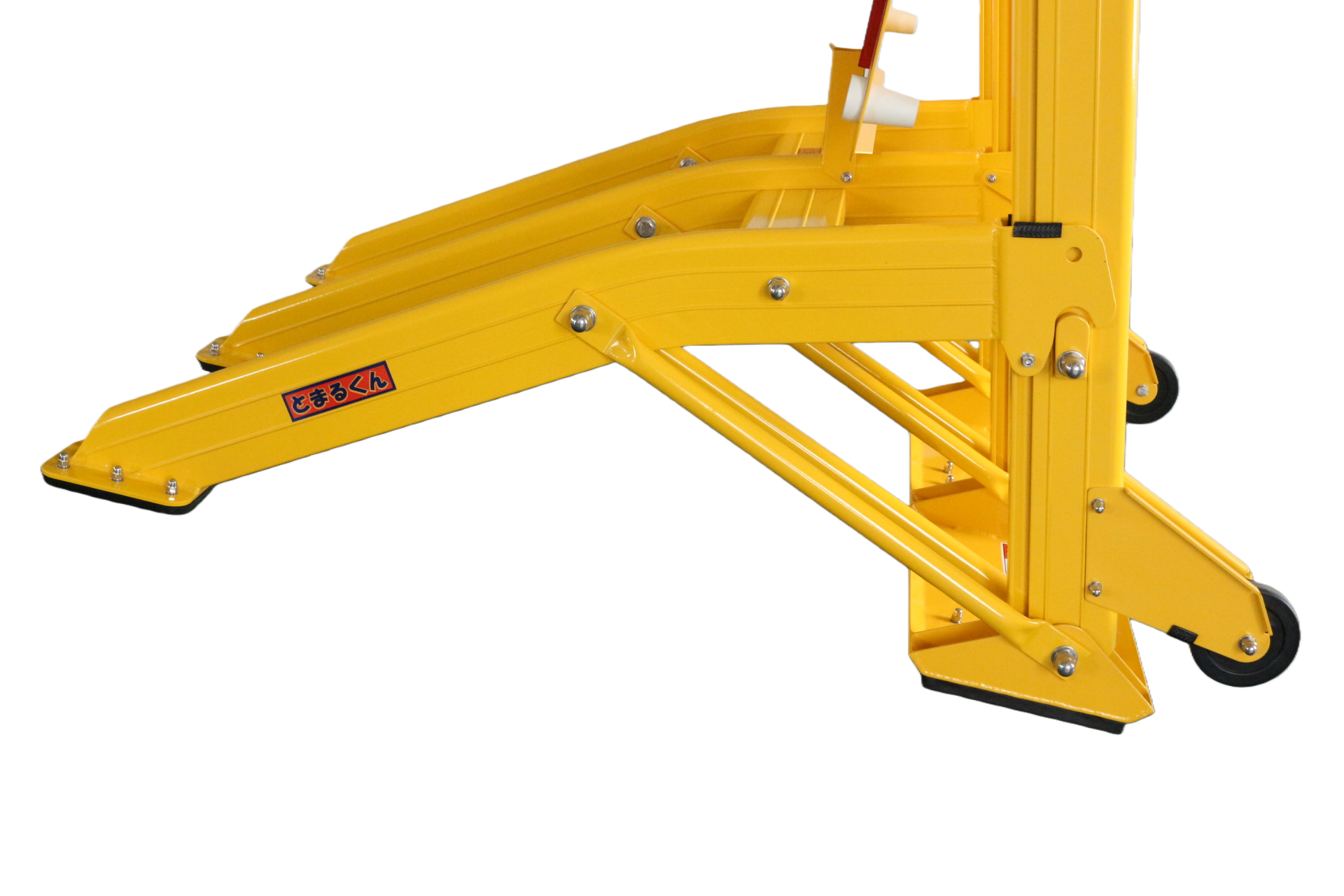

Product Structure Overview
Component Description
Main Frame High-strength aluminum alloy structure, providing overall support
Front Support Arm Foldable, deployed to form interception posture
Bottom Rubber Pad Contacts the ground, provides braking friction
Bottom Wheels Facilitates movement and pushing
Folding Lock Buckle Locks/unlocks the folded state
Deployment Process (Unfolding)
1 Push Tomarukun to the designated perimeter of the work area (recommended placement: approximately 20 meters behind the safety area), and adjust the direction according to the traffic flow.
2 Locate the folding lock buckle, unlock it, and release the front support arm.
3 Fold the front support arm down to the working position, ensuring the structure is fully in place.
4 Ensure the specially designed rubber pad at the bottom makes full contact with the ground. If the ground is uneven, adjust the position to ensure complete contact.
5 The device is now on standby, providing both warning and interception functions.
6 If equipped with an LED indicator board, install it in the designated position and turn on the light as needed to enhance warning effectiveness (suitable for nighttime or low-visibility conditions).
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety

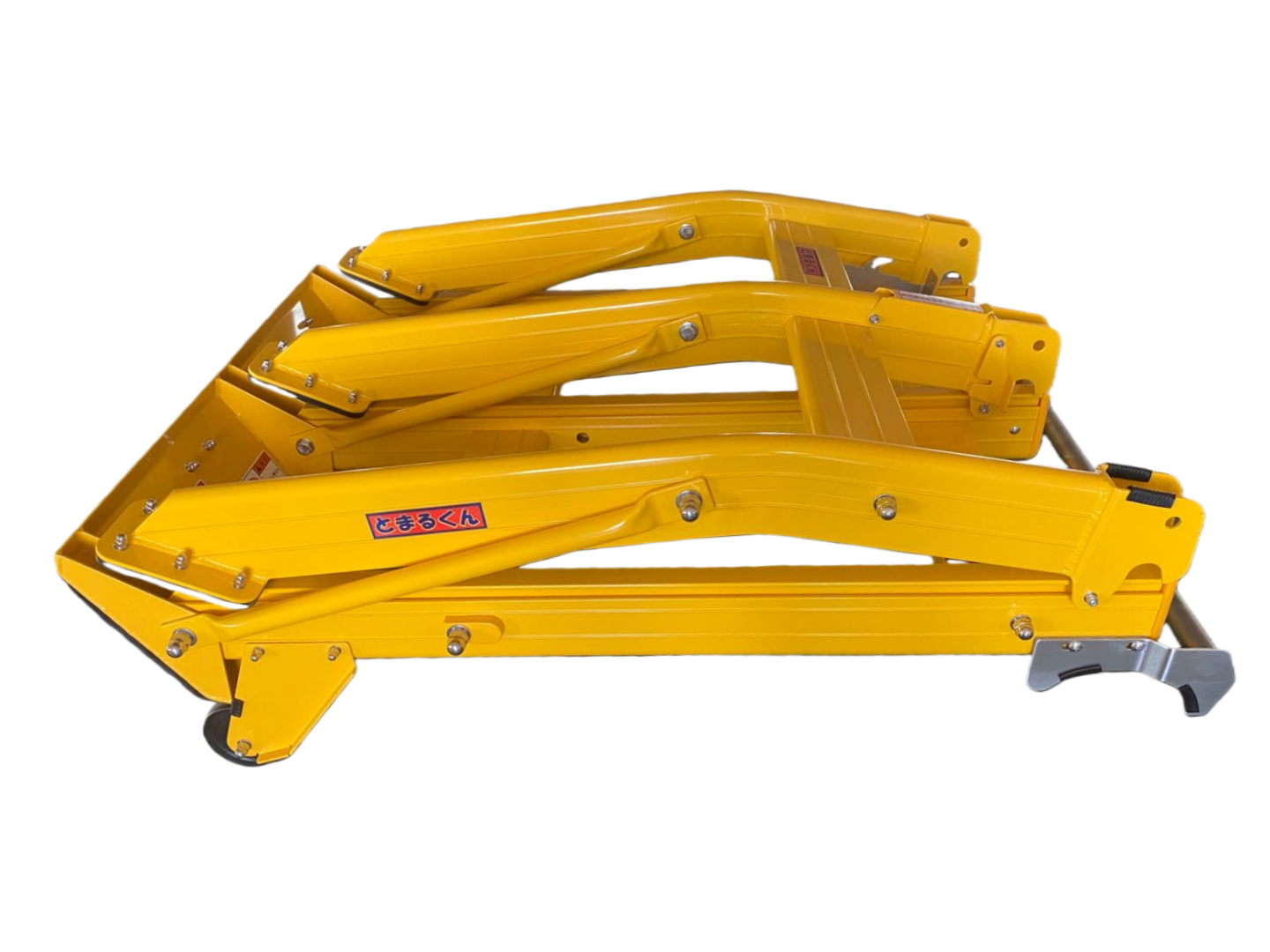

Storage Process (Wrap-Up)
1 Remove the optional LED indicator board from the device and store it properly.
2 Lift the front support arm upward, disengaging it from ground contact.
3 Secure the folding lock buckle, ensuring the support arm is firmly locked in the folded position.
4 Push the device to the warehouse or designated storage area.
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety

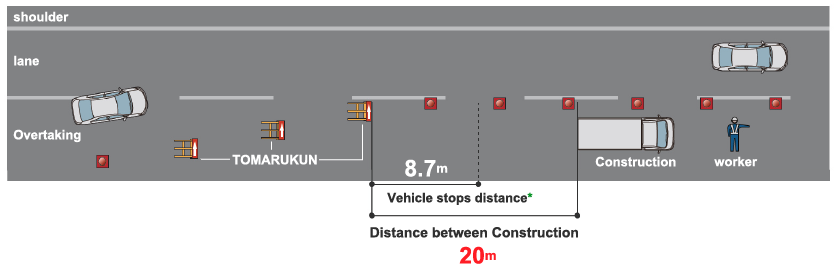

Placement Position Recommendations
Scenario Recommended Position
General construction sections Approximately 20 meters behind the work area
Highway/expressway construction Increase distance according to speed limits
Curved or sloping road sections Place further ahead to allow more buffer distance
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Important Notes
No. Important Notes
1 Ensure the bottom rubber pad makes full contact with the ground - do not leave it suspended, otherwise braking effectiveness will be affected
2 Recommended for use on dry and level asphalt or concrete surfaces; soft or slippery surfaces may affect braking performance
3 Recommended placement: approximately 20 meters behind the safety area to allow sufficient buffer distance
4 Additional ordinary cones may be placed in front of the device as early warning based on actual site conditions
5 At night or in low-visibility weather, LED indicator board must be used to enhance warning effectiveness
6 Regularly check the wear condition of the bottom rubber pad; replace if excessively worn
7 Regularly check the tightness of the folding lock buckle to ensure it remains secure during use
8 Conduct a trial deployment before first use to master the correct unfolding and storage procedures
9 After a severe collision, thoroughly inspect the product structure for any deformation or damage
25kg Lightweight Foldable Vehicle Barrier with Electrostatic Spraying for Construction Safety
Frequently Asked Questions
Q1: What is this product?
A: Stopping Device, designed for warning and vehicle interception at construction sites.
Q2: Where is it mainly used?
A: Low-speed scenarios such as municipal road construction, temporary work zones, traffic flow guidance, etc.
Q3: How heavy is it? Is it easy to move?
A: 25kg. Equipped with wheels at the bottom and foldable design - one person can easily push and move it.
Q4: How does it stop the vehicle?
A: Upon vehicle impact, the device lifts the front wheels through lever principle, redirecting kinetic energy to the ground, combined with friction braking via the bottom rubber pad.
Q5: What is the stopping distance?
A: On dry asphalt roads, approximately 8.7 meters at 60km/h.
Q6: How to use it?
A: Push to site -> release the folding lock buckle -> rubber pad contacts ground -> ready for use. After use, fold up the support arm, fasten the lock buckle, and push it away.
Q7: Can it be used at night?
A: Yes. It features high-visibility yellow color and can be optionally equipped with an LED indicator board for enhanced nighttime warning.
Q8: Can it withstand sun and rain?
A: Yes. The surface uses outdoor-grade electrostatic spraying, which is rust-proof and corrosion-resistant.
Q9: Does it save space when folded?
A: Yes. Height reduces from 1080mm to 365mm, making transportation and storage more convenient.
Q10: Is it environmentally friendly?
A: Yes. Made of aluminum alloy, which is recyclable.
Q11: What are the advantages over traditional traffic cones?
A: Cones provide warning only but cannot intercept. Tomarukun offers both warning and physical braking - stopping distance of only 8.7m at 60km/h. After use, it folds and can be pushed away, taking up little space.
Q12: What are the advantages over concrete barriers?
A: Concrete barriers can intercept but weigh hundreds of kilograms and require cranes for transport. Tomarukun weighs only 25kg - one person can push and deploy it in just 1 minute.
