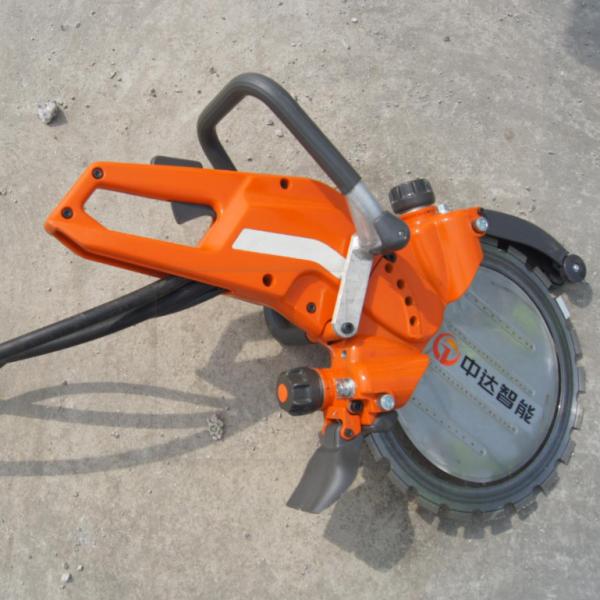

Ergonomic design Hydraulic Ring Saw Low Wear Long Life for Concrete
Ergonomic design Hydraulic Ring Saw Low Wear Long Life for Concrete
Specifications
Brand Name :
Zondar
Model Number :
ZDRS40
Certification :
CE
Place of Origin :
China
MOQ :
1sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000sets/years
Delivery Time :
7-15workday
Packaging Details :
standard wooden case
Name :
Concrete Hydraulic Circule Ring Saw
Model :
ZDRS40
Brand :
ZONDAR
Saw blade diameter :
400mm
Maximum cutting depth :
300mm
Flow :
20-40Lpm
Description

Concrete Hydraulic Circule Ring Saw

Product description:

1. The cutting depth is large, the size is the same, and the cutting depth is much greater than that of a circular saw;

2. Low wear and long life. The parts are lubricated and immersed in hydraulic oil or water, with little wear and long life.


Product features:

• Safety System
• Long lifetime - all parts run in oil
• Ergonomic design - operator comfort
• Easy change of discs
• Lower vibrations and weight

Performance Technology Parameter Configuration

Model ZDRS40
Bare machine weight/kg 10.2
Flow/Lpm 20-40
Working pressure /Mpa 16
Maximum pressure/Mpa 17.5
Maximum cutting depth/mm 300
Saw blade diameter/mm 400
Rotating speed/Rpm 1750-2350
Vibrating strength(m/s²) ＜2.5

Ergonomic design Hydraulic Ring Saw Low Wear Long Life for Concrete
