Specifications
Brand Name :
SADT
Model Number :
-
Certification :
-
Place of Origin :
China
MOQ :
1 pcs
Price :
USD150-1800/Pcs
Payment Terms :
Western Union, T/T, paypal
Supply Ability :
500pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Carrying case with carton
Warranty :
12 months
Key words :
Metal hardness tester
Impact direction :
Auto impact direction with 360 degree
Product name :
HBC portable hammering Brinell hardness tester
Description

Impact device/Probe for IMPACT DEVICE Leeb hardness tester

Various impact devices includes analog impact device, digital impact device, wireless impact device, universal impact device and unique reading probe, they are designed for Leeb hardness testers, which make the testers suitable for testing the hardness of all metals. They are widely used in the industry of power, petro chemistry, air space, vehicle, machine and so on.

IMPACT DEVICE

Analog impact device with cable
Impact Device D
Impact Device DC
Impact Device D+15
Impact Device DL
Impact Device C
Impact Device E
Impact Device G
Universal impact device with cable
Impact Device D
Impact Device DC
Impact Device D+15
Impact Device DL
Impact Device C
Impact Device E
Impact Device G
Digital impact device with cable
Impact Device D
Wireless impact device
Impact Device D
Impact Device DC
Impact Device D+15
Impact Device DL
Impact Device C
Reading impact device
RP Reading Probe

Specification

Impact Device (Probe)Description
DUniversal standard unit for majority of hardness testing assignments.
DCExtremely short impact device, other specs identical with type D.
Application:Highly confined spaces.
Holes and cylinders.
Internal measurements on assembled machines
D+15Slim front section
Application:Grooves and recessed surfaces
DLExtremely slim front section.
Application:Extremely confined spaces
Base of grooves
CReduced impact energy ( compared with type D)
Application:Surface hardened components, coatings
Minimum layer thickness: 0.2mm
Thin walled or impact sensitive components (small measuring indenta­tion)

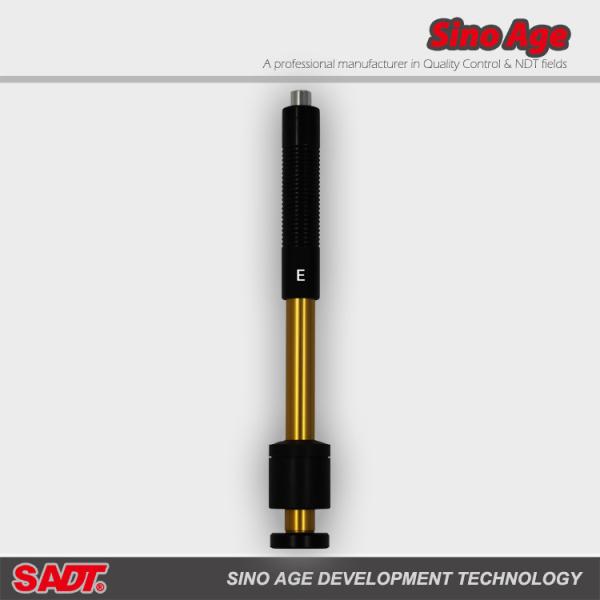

ESynthetic diamond test tip (approx.5000 HV)
Application:Extremely high hardness measurement such as high carbon steel up to 1200 HV
GEnlarged test tip, increased impact energy(approx. 9 times that of type D)
Application:Brinell hardness range only
Heavy cast and forged parts with lower demands on surface finish


Impact Device / Probe Portable Hardness Tester Leeb Hardness TesterImpact Device / Probe Portable Hardness Tester Leeb Hardness Tester

Impact Device / Probe Portable Hardness Tester Leeb Hardness Tester

Impact Device / Probe Portable Hardness Tester Leeb Hardness TesterImpact Device / Probe Portable Hardness Tester Leeb Hardness TesterImpact Device / Probe Portable Hardness Tester Leeb Hardness TesterImpact Device / Probe Portable Hardness Tester Leeb Hardness TesterImpact Device / Probe Portable Hardness Tester Leeb Hardness Tester
