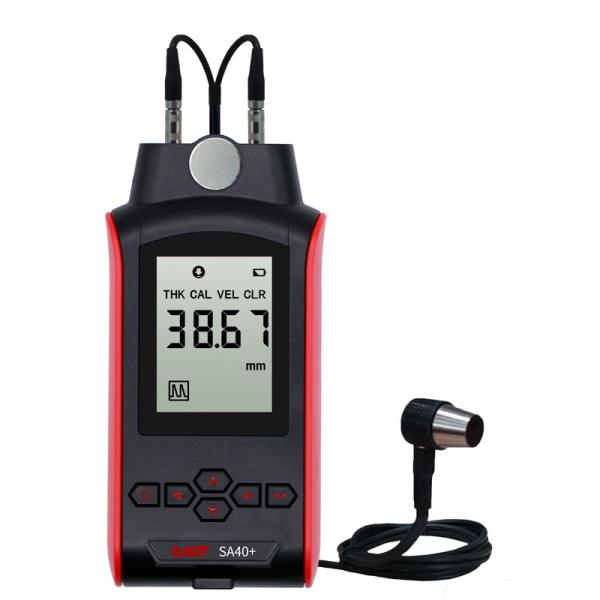

Micro-Processor Ultrasonic Thickness Gauge For Coating , 4 Digits LCD Display SA40+
Micro-Processor Ultrasonic Thickness Gauge For Coating , 4 Digits LCD Display SA40+
Specifications
Place of Origin :
Beijing
Brand Name :
SADT
Certification :
ＣＥ　ＩＳＯ９００１
Model Number :
SA40+
MOQ :
1pc
Packaging Details :
Standard package
Delivery Time :
Within one week after receipt of advanced payment
Payment Terms :
T/T in advance, Western Union
Supply Ability :
50pcs/week
Price :
USD200-400/Pcs
memory :
400
key word :
ultrasonic thickness gauge
Accuracy :
0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm
Velocity :
1000~9999m/s
Memory :
400 data
Working environment :
0~40oC, 20~90%RH
Power supply :
AA battery x 2
Standard probe :
PT-5
Description

SA40+ Ultrasonic Thickness Gauge can measure wall thickness under paint

Using new technique of multiple echo(echo-to-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece. SA40+ has two measuring modes: normal mode and multiple echo(ME) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by ME mode, SA40+ can measure over coatings.

Specifications
Model

SA40+
Display 4 digits LCD
Backlight Yes
Measuring range 0.80~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: <1.2mm
(ME mode)
Resolution 0.80~9.99mm ±0.05
10.00~99.99mm ±(0.5% H+0.01)
100.0~300.0 ±(1% H+0.1)
Unit
mm/inch
Velocity 1000~9999m/s
Coupling indicator Yes
Calibration Auto
Memory
40 data
Low battery indicator Yes
Working environment 0~40oC, 20~90%RH
Power off Auto
Power supply AA battery x 2
Net weight (g) 245
Dimension (mm) 124x67x30
Standard probe PT-5
Optional probes XT-5 / GT-5 / CT2.5
