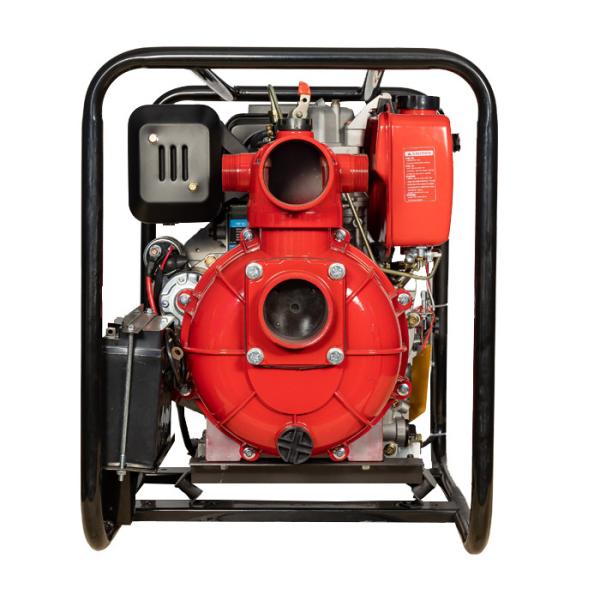

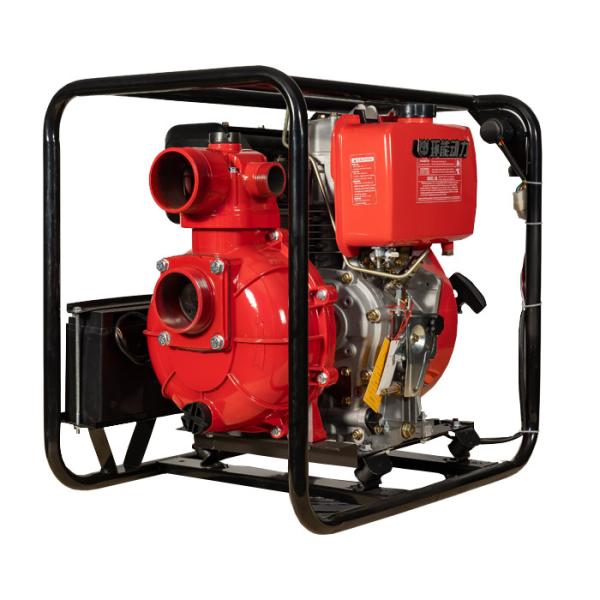

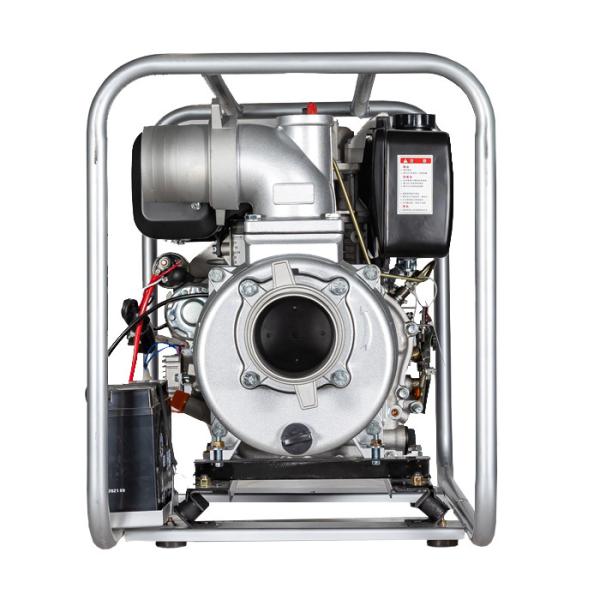

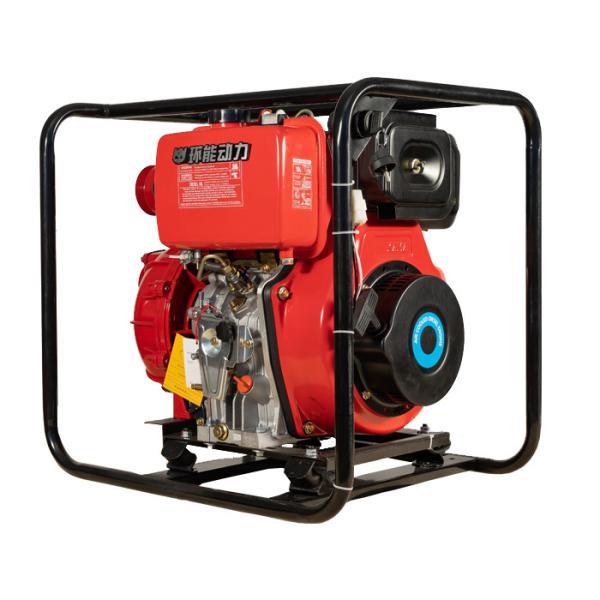

Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Aluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation
Specifications
Brand Name :
HUAN NENG
Model Number :
QGZ100-30
Certification :
CE, ISO 14001, ISO 9001
Place of Origin :
Chongqing, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Carton box packing for each set
L×W×H (mm) :
570*430*500
Net weight (Kg) :
40KG
Shell material :
Aluminum alloy
Type :
Watering
Engine type :
4-strock
Engine :
15hp
Description

High Pressure Small 15HP Farm Irrigation Gasoline Gasoline Water Pump at Best Price

Gasoline Engine Water Pump

  • :

1. Our quality is reliable, performance is stable and durable.

2. We provide one year warranty service in case of any problems

3. Surge power, ample horsepower, strong power, fuel saving and energy saving, stable performance.

4. Fully intelligent protection system with dual protection for oil shortage and overload.

Add:If you want to know more,please contact us.

Application:It is used for irrigation and drainage in the agricultural sector and for water supply and drainage in industrial and mining enterprises and towns.

The technical parameters of the water pump of Huanneng gasoline Single impeller high pressure pump
Brand model number QGZ50-30 QGZ80-30 QGZ100-30 QGZ150-20 KN50HP-50
engine 170F 170F 190F 190F 170F
Genrator Gasoline engine type Single cylinder, four stroke, forced air valve, overhead valve Single cylinder, four stroke, forced air valve, overhead valve Single cylinder, four stroke, forced air valve, overhead valve Single cylinder, four stroke, forced air valve, overhead valve Single cylinder, four stroke, forced air valve, overhead valve
Maximum power output power 7.5/3600hp/rpm 7.5/3600hp/rpm 15.0/3600hp/rpm 15.0/3600hp/rpm 7.5/3600hp/rpm
Ignition system Transistor Magnet Ignition Transistor Magnet Ignition Transistor Magnet Ignition Transistor Magnet Ignition Transistor Magnet Ignition
Bore diameter × stroke (mm) 70×69mm 70×69mm 88×69mm 88×69mm 70×69mm
Displacement (mL) 215cm3 215cm3 420cm3 420cm3 215cm3
Oil volume L 0.6 0.6 1.1 1.1 0.6
Rack (square pipe, round pipe, pipe diameter) The rack can be made of diameter 25/28/32 series The rack can be made of diameter 25/28/32 series The rack can be made of diameter 25/28/32 series The rack can be made of diameter 25/28/32 series The rack can be made of diameter 25/28/32 series
impeller cast iron cast iron cast iron cast iron cast iron
bearing Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Pump housing material cast iron Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Pump Starting method Manual start/electric start Manual start/electric start Manual start/electric start Manual start/electric start Manual start/electric start
Power factor (cosφ) 1 1 1 1 1
Insulation class F F F F F
Fuel tank volume L 6L 6L 6L 6L 6L
Inlet and outlet diameter 50mm 80mm 100mm 150mm 50mm
Max lift 20M 25M 45M 20M 40M
suction lift 6M 6M 6M 7M 6M
Maximum flow 40 cubic 55 cubic meters 80 cubic 150 cubic meters 22 cubic
Shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
L×W×H (mm) 490*400*410 490*400*410 570*430*500 690*510*550 490*400*410
Net weight (Kg) 25KG 30KG 40KG 55KG 30KG

Aluminum Alloy 15HP Gasoline Water Pump For Farm IrrigationAluminum Alloy 15HP Gasoline Water Pump For Farm IrrigationAluminum Alloy 15HP Gasoline Water Pump For Farm Irrigation​
