Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Specifications
Brand Name :
HEWEI
Model Number :
HW-TK
Certification :
YES
Place of Origin :
China
MOQ :
1 piece
Price :
USD 2000~5000 per piece
Payment Terms :
T/T
Supply Ability :
100 pieces per month
Delivery Time :
15 working days
Packaging Details :
carton package, wooden package.
Name :
Thermal Scope
IP Grade :
IP67
Reliability :
Shock 300g/4Hz, 6000times
Human Target 1.7m×0.5m :
Recognition: 500m, Detection: 1800m,
Car Target 2.3m×2.3m :
Identification: 300m; Recognition: 600m, Detection: 2300m
Operating Temperature :
-40℃~+55℃
Description

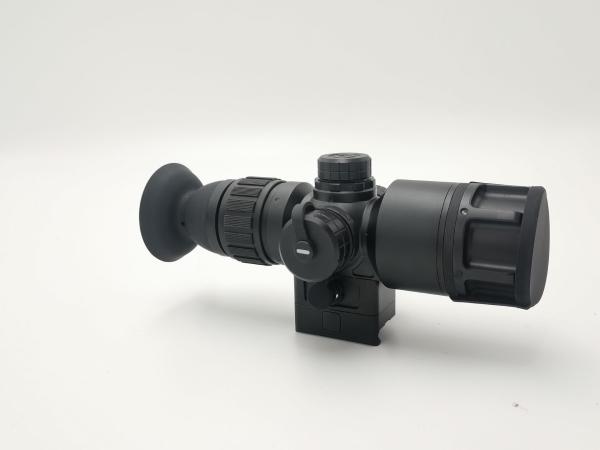

TK is small in size, light in weight, lower in power consumption Thermal Scope

Thermal Scope

1. Product Description

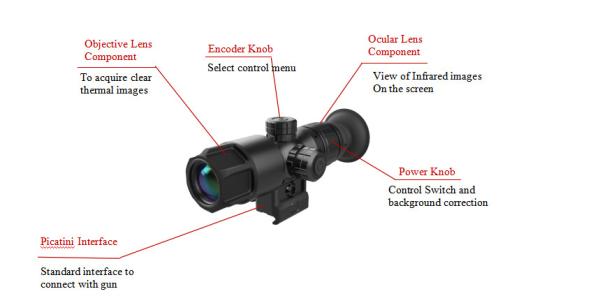

TK Series Thermal Scope has light type (TK-L), mid type (TK-M), and heavy type (TK-H) to match guns with different ranges. Among the products on same level,TK is small in size, light in weight, lower in power consumption, longer identifying distance, and higher reliability. With built-in image transmission module, it can be connected with head-mounted devices by wireless for easy and hidden observing and shooting. The operation is simple and reliable, with automatic gun calibration and probability ranging function.Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Product Features

● Wireless Image Transmission

● IP67 Water And Dust Proof

● Single Roller Operating

● Eye Cup Preventing Light Leaking

● Low Power Consumption

● Auto Zeroing

● Ultra-Far Vision

● High Reliability

Technical Parameters

Item Light Type(TK-L)
TK-L3
Module

Resolution:384×288 17μm

Spectral Band:8~14μm

FOV:14.9°×11.2°
Display 0.38’ OLED 800×600
Eyepiece Diopter -5~+3
Exit Pupil Distance 30mm
Digital Zoom 4x
Optical Magnification 2x
Power Supply 18650*1
Weight(With Battery) ≤0.4kg
Battery Life ≥8h
Dimension(With Eye Cup and Lens Hood) 190×76×82mm
Interface External Power Supply/Analog(PAL)/RS232/WIFI
Operating Temperature -40℃~+55℃
IP Grade IP67
Reliability Shock 300g/4Hz, 6000times

Human Target

1.7m×0.5m

 Identification 200 m
Recognition 500 m
Detection 1800 m

Car Target

2.3m×2.3m

 Identification 300 m
Recognition 600 m
Detection 2300 m

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Company Introduction

In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.

In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.

In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.

Jiangsu Factory
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Shenzhen Research Centre
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Overseas Exhibitions

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Certificates
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Staff Photo

Staff from Jiangsu Factory
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption


Staff from Headquarters
Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption

Staff from Shenzhen research centre

Tk Ip67 Thermal Image Scope Small Size Lightweight Lower Power Consumption
