Led Eod Explosive Ordnance Disposal Robot 150m
Led Eod Explosive Ordnance Disposal Robot 150m
Specifications
Brand Name :
HEWEI
Model Number :
HW-18
Certification :
Yes
Place of Origin :
China
MOQ :
1 set
Price :
USD per set FOB Shenzhen
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
21 working days
Packaging Details :
Wooden pacakge
Name :
EOD Robot
Limited Passage Width :
Limited Passage Width
Over-obstacle Capacity :
It can cross the obstacle of 320mm height.
Control Distance :
Wireless control: ≥150m (visible range); wire control: 100m (optional 200m);
Floodlight :
Two group LED floodlight (one group on the front and back)
Display Screen :
12-inch HB LCD, wide viewing angle, outdoor clear picture
Description

EOD Robot

Model: HW-18

Description

EOD robot consists of mobile robot body and control system.

Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.

Mechanical arm is made up of big arm, telescopic arm, small arm and manipulator. It is installed on kidney basin and its diameter is 220mm. Double electric stay pole and double air-operated stay pole are installed on mechanical arm. Cradle head is collapsible. Air-operated stay pole, Camera and antenna are installed on cradle head. Monitoring system is made up of camera, monitor, antenna, etc.. One set of LED lights is mounted on the front of body and on the back of body. This system is powered by DC24V lead-acid rechargeable battery.

Control system is made up of center control system, control box, etc.

Led Eod Explosive Ordnance Disposal Robot 150m

Technical Parameter

Robot Body
Materials Aircraft-grade aluminum alloy, precision machining

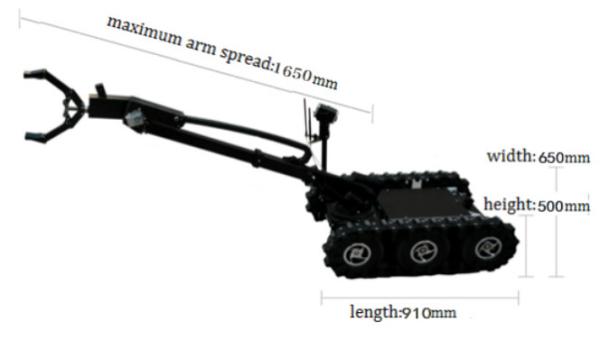

Dimensions L*W*H: 910 * 650 * 500 mm
Weight 90kg (without accessories, package and control box)
Battery DC24V lead acid rechargeable battery
Working time ≥ 5 hours
Maximum Speed ≥1.5m/s
Loading Capacity When loading 140KG, it can move normally (actual measurement).
Lift Capability It can move with clamping weights of 40K and will not drop (actual measurement).
Grade Ability It can climb up the slope of 45° and stop steadily on the slope.
Climbing Stairs Ability With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
Turning Ability In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
Limited Passage Width ≤700mm
Over-obstacle Capacity It can cross the obstacle of 320mm height.
Max. Mechanical Arms Spread 1650mm
Gripper of Manipulator Maximum Expansion Range 250mm
Arm Extension when stretch out and draw back 500mm
Control Distance Wireless control: ≥150m (visible range); wire control: 100m (optional 200m);
Forward Camera Color infrared induction
Backward Camera Color infrared induction
Cradle Head Various focal Camera Color infrared induction
Manipulator Gripper Camera Color infrared induction
Floodlight Two group LED floodlight (one group on the front and back)
Control Terminal
Box Portable, waterproof, dustproof, high strength
Size ≤ L 460 * W 370 *H 260 mm
Weight ≤ 10kg
Display Screen 12-inch HB LCD, wide viewing angle, outdoor clear picture
Operation High-quality rocker handle, human software interface design, easy observation and convenient operation
Display Image It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals
Battery Rechargeable 24V lithium battery, working time ≥ 5.1 hours when fully charged.
