Specifications
Brand Name :
HEWEI
Model Number :
HW-JY-F
Certification :
Yes
Place of Origin :
China
MOQ :
1 piece
Supply Ability :
100 per month
Delivery Time :
10-45 working days
Packaging Details :
Carton package
Visual Amplification :
1×
Exit Pupil Diameter :
15mm
Exit Pupil Distance :
25mm
Diopter :
-3.5~+2.5
Display Mode :
Black-hot/ White-hot/ Orange-hot, Outline, Target highlight, Breathing alert
Compass indication :
Azimuth/ Pitch angle/ Inclination angle
Battery Life（I² Only) :
≥60h
Battery Life (All Functions) :
≥8h
Weight :
≤360g (Without Battery Pack)
Operating Temperature :
-40℃ ~ +60℃
Description

Enhanced Night Vision Goggle

Enhanced Night Vision Viewer 12um Thermal Imaging Extra Large Exit Pupil Diameter 15mm

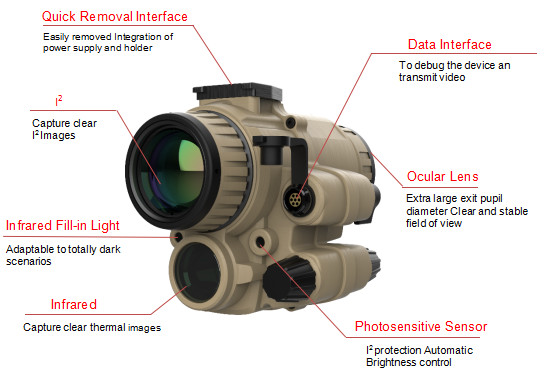

HW-JY-F Enhanced Night Vision Goggle combines I² and thermal imaging technologies to make up for the shortcomings of the former in detecting targets, suitable for a wider range of applications. With corresponding sighting tools, the field of vision and the division of the sighting tool can be precisely matched to the image of HW-JY-F, so as to realize the fast capture and concealed shooting of the target.

Product Features
● Rapid Target Acquisition
● Multiple Fusion Modes Switchable
● 12μm Thermal Imaging
● Low Power Consumption
● Combat Information Input(HUD)
● Light Weight(360g)
● Extra Large Exit Pupil Diameter(15mm)

Technical Parameters

Product Specifications
Visual Amplification 1×
Exit Pupil Diameter 15mm
Exit Pupil Distance 25mm
Diopter -3.5~+2.5
Display Mode Black-hot/ White-hot/ Orange-hot, Outline, Target highlight, Breathing alert
Compass indication Azimuth/ Pitch angle/ Inclination angle
Battery Life(I² Only) ≥60h

Battery Life (All Functions)

 ≥8h
Weight ≤360g (Without Battery Pack)
Operating Temperature -40℃ ~ +60℃
I² Specifications
I² Focal Length 25mm
Focal Length Range 0.25m ~ +∞
I² FOV 40°
Gain Adjustment Support
Infrared Specifications
Detector 12μm 640×512
IR Focal Length 16mm
Infrared FOV 26.9°×20.9°
Gain Adjustment Support
Contrast Control Support

Operating Distance

Human Target

1.7m×0.5m

 Identification 200m
Recognition 400m
Detection 1500m

Vehicle Target

2.3m×2.3m

 Identification 500m
Recognition 1000m
Detection 3000m
