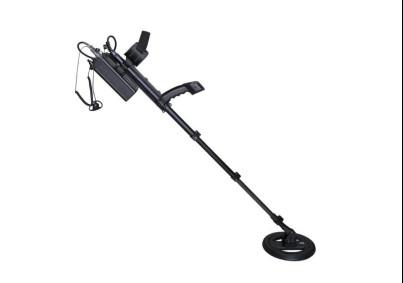

Dual frequency metal mine detector easy operation can be used in fresh water sea water clay magnetic soil beach soil

Description:

Dual frequency metal mine detector is characterized with soil suppression function, can be used in the

shallow sea and beach for landmine detection work. The mine detector could effectively detect the

trace metal plastic landmines, metal shell mines. But it is invalid for other amassed explosives and

the camouflaged trap target without any metal parts.

Dual frequency metal mine detectors using dual-frequency superimposed continuous work and

full wave phasesensitive detection technology, it has high sensitivity for all metals including the ferromagnetic and

non ferromagnetic metals. Metal mine detector has static detection and dynamic detection,

the two modes have high resolution and high level of accuracy in positioning.

Dual frequency metal mine detector is easy to operate, it can be used in fresh water, sea water, clay,

magnetic soil, beach soil and other various environments by using the "Background learning" function to

automatically set the gain control of various background signal parameters,.

Dual frequency metal mine detector can set different background signal’s gain control parameter

automatically, and it has the background function to learn, environment self-adaption function and

under-voltage warning function. Test piece can be used to confirm if the real time detection machine is working.
Dual frequency metal mine detectors' sensitivity could be adjustable by three gears selection.

Performance Parameters:

Detection sensitivity: ≥10cm ( Anti-personnel metal mine)

Positioning accuracy: ≤5cm ( The distance between location and mine edge)

The Searching coil diameter: Φ250mm

Feeler lever rod length adjustable range: 760 - 1400mm

Host weight: ≤3.5 kg

Continuous working hours: ≥ 20 hours (3 pieces of R20P (NO.1) batteries)

Alarm mode: Single headset dual audio frequency warning, and external loudspeaker alarm

Temperature range: - 40℃- + 50℃ (exclude the battery)
