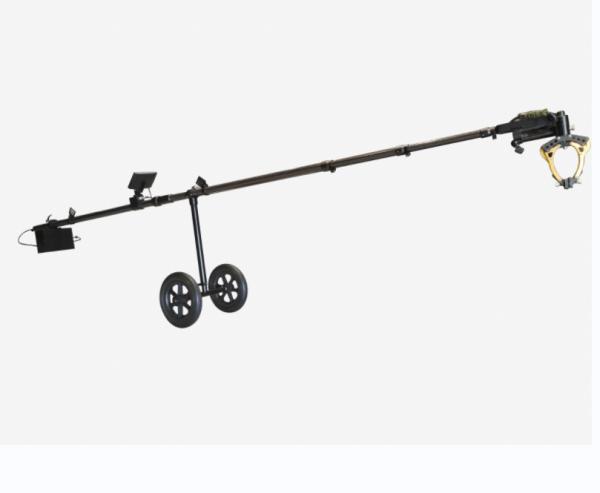

4.7 meters stand-off capability, EOD Telescopic Manipulator
4.7 meters stand-off capability, EOD Telescopic Manipulator
Specifications
Brand Name :
HEWEI
Model Number :
HWJXS-V
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Carton package, ABS Case dimension 146x38x50cm
Certification :
Yes
Name :
EOD Telescopic Manipulator
Weight (with battery) :
16.8 kg
Material :
High-strength light-weight carbon fiber
Pole Length :
2.75 m ~ 4.7m
Claw Max. Opening Size :
20cm
Wheel Diameter :
30cm
Description

4.7 meters stand-off capability, EOD Telescopic Manipulator

Description

Telescopic manipulator is a kind of EOD device. It is comprised of the mechanical claw, mechanical arm, battery box, controller, etc. It can control the claw's open and close.

This device is used for all dangerous explosive articles disposal and suitable for public security, fire fighting and EOD departments.

It is designed to provide the operator with a 4.7 meters stand-off capability, thus significantly increasing operator survivability should a device detonate.

Features

1.High grabbing capacity: it can grab about 20 kg objects.

2.4.7 meters stand-off capability.

3.Rechargeable battery.

4.Battery box designed as counterweight.

5.The mechanical claw can be operated electrically and rotated 360 degree electrically.

6.The height of bracket is adjustable with universal wheels which can be locked.

4.7 meters stand-off capability, EOD Telescopic Manipulator

Technical Specification

Physical Parameter
Weight (with battery) 16.8 kg
Material High-strength light-weight carbon fiber
Pole Length 2.75 m ~ 4.7m
Claw Max. Opening Size 20cm
Max. Grip Weight 2.75m (pole length): 11.5kg
4.7m (pole length): 20kg
Wheel Diameter 30cm
Wheel-center-distance 44cm
Claw rotation 360 degrees
Camera Parameter
Image Sensor 1/2.9 inch ultra-low illumination 2 megapixel CMOS
Built-in HD Lens 2.8mm
Resolution 1080P
Min. illumination Color 0.01Lux@(F1.2,AGC ON)
Backlight compensation AUTO
Frame rate 50Hz:25fps (1920*1080)；60Hz:30fps (1920*1080)
Protection Class IP68
Display Parameter
Display Size 7 inch TFT-LCD screen
Resolution 1080P
Screen Backlight LED
Brightness 500cd/m2
FOV 150°
Voltage 12v
Power 6.5w
Language English
Other Parameter
Working Time 5hours with built-in rechargeable battery
Operating temperature -20℃ to +45℃ ; 0~98%Rh
Storage temperature -20℃ to +45℃ ; 0~98%Rh
Packing weight (device+case) 32.2kg

Company Introduction

In 2008, Beijing Hewei Yongtai Technology Co., LTD was established in Beijing.Focus on the development and operation of special safety equipment, mainly serve the public security law, armed police, military, customs and other national security departments.

In 2010, Jiangsu Hewei Police Equipment Manufacturing Co., LTD was established in Guannan.Covering an area of 9000 square meters of workshop and office building, it aims to build a first-class special safety equipment research and development base in China.

In 2015, a military-police Reserch and development center was set up in Shenzhen.Focus on the development of special safety equipment, has developed more than 200 kinds of professional safety equipment.

Jiangsu Factory

4.7 meters stand-off capability, EOD Telescopic Manipulator

4.7 meters stand-off capability, EOD Telescopic Manipulator

Shenzhen Research Centre

4.7 meters stand-off capability, EOD Telescopic Manipulator

4.7 meters stand-off capability, EOD Telescopic Manipulator



Overseas Exhibitions

4.7 meters stand-off capability, EOD Telescopic Manipulator

4.7 meters stand-off capability, EOD Telescopic Manipulator




Certificates

4.7 meters stand-off capability, EOD Telescopic Manipulator

4.7 meters stand-off capability, EOD Telescopic Manipulator

4.7 meters stand-off capability, EOD Telescopic Manipulator



Staff Photo

Staff from Jiangsu Factory
4.7 meters stand-off capability, EOD Telescopic Manipulator

Staff from Headquarters

4.7 meters stand-off capability, EOD Telescopic Manipulator

Staff from Shenzhen research centre

4.7 meters stand-off capability, EOD Telescopic Manipulator
