7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
Specifications
Brand Name :
HEWEI
Model Number :
HW400
Certification :
ISO.CE.etc
Place of Origin :
Made in China
MOQ :
1 Set
Price :
FOB Shenzhen / Beijing
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100-200 Sets/Month
Delivery Time :
8-15 working days
Packaging Details :
Export Package
Product type :
Portable 3-dimentional imagine through wall radar
Detection number :
3~5
Penetrate material :
Concrete, rocks, wood, none-metal and low water contend material
Boost time :
≤10s
Detection range for static target :
≥12m(penetrate through 24cm concrete wall)
Detection range for moving target :
≥20m(penetrate through 24cm concrete wall thick)
Protection level :
IP67
Angle measurement :
Azimuthal angle120° Pitch angle90°
Operating time :
≥4h
Scan & Display :
3-dimentional imagine, target distance, direction,height and situation information.
Description

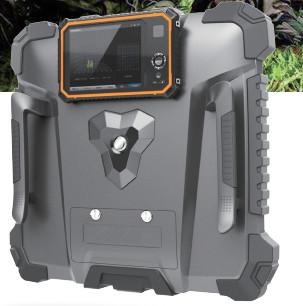

Portable 3D Imaging Through-Wall Radar

Brief Introduction:

HW400 is a new portable through wall radar aiming for emergency rescue, quick detection in rescue/anti-terrorism field. This product can achieve 3-dimentional position in case of multi-target including moving and static targets. It can penetrate common wall material.

Technical Parameters:

Product type Portable 3-dimentional imagine through wall radar
Detection number 3~5
Penetrate material Concrete, rocks, wood, none-metal and low water contend material
Boost time ≤10s
Detection range for static target ≥12m(penetrate through 24cm concrete wall)
Detection range for moving target ≥20m(penetrate through 24cm concrete wall thick)
Protection level IP67
Angle measurement Azimuthal angle120° Pitch angle90°
Operating time ≥4h
Scan & Display 3-dimentional imagine, target distance, direction,height and situation information.
Size ≤500mm*500mm*160mm
Weight ≤7.0kg
Operating temperature -20℃~60℃
Anti-dropping ≥1.0m

7.0kg Portable 3D Imaging Through Wall Radar Azimuth Angle 120° Pitch Angle 90°
