3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution
Specifications
Brand Name :
HEWEI
Model Number :
HWICM-01
Certification :
CE,ROHS,ISO,etc
Place of Origin :
Made in China
MOQ :
1 Set
Price :
FOB Shenzhen / Beijing
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
400-600 Sets/Month
Delivery Time :
7-8 working days
Packaging Details :
Export package, Wooden case
Sensor :
2M effective pixels CCD
Spectrum Range :
200nm – 1200nm
LCD Screen :
3.5” 180 °Rotating
Storage :
SD Card
File Format :
16bit TIFF
Lenses :
78mm quartz for UV; Nikon AF lens for VIS-NIR
Lens Mount :
Nikon F mount
Laser Indicator :
X2 on diagonal of lens
Filter :
254nmBP, 760nmLP, 850nmLP, 950nmLP
Image resolution :
2056x2048
Description

Full-Wave CCD Forensic Evidence Camera

3.5” LCD Full Wave CCD Forensic Evidence Cam 180° Rotating 2056x2048 Resolution

Description:

The U2 is a scientifically designed full-wave CCD forensic evidence camera which adopts digital watermark anti-tampering technology. It is a special product for court evidence, and it is the best choice for field and experiment application. It has high sensitive full-wave optical spectrum which contains UV light, visible light, infrared light. The range of optical spectrum is 190-1200nm. The wave length can be extended to 1700nm.

Features:

  • Spectral range 200-1200nm (UV-VIS-NIR).
  • Built-in LCD, SD card, battery. You can take photo and playback photo without PC.
  • You can view and capture pictures with the built-in 3.5” LCD in real-time.
  • There are several resolutions of CCD available: 2 million pixels, 4 million pixels, 8 million pixels, 16 million pixels for choices.

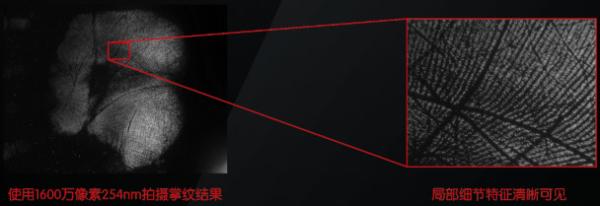

  • 16 million pixels resolution: used to take large area latent, palm print, multi fingerprints or footprint.
  • Designed for forensic and police use. Digital watermark embedded in each photo.
  • No mechanical shutter.
  • Magnified view on the live view shooting mode, make it easy to focus on.
  • Laser indicator to indicate where you are looking.
  • Application: untreated fingerprints, untreated palm prints, document examination.

Specifications:

Sensor 2M effective pixels CCD
Spectrum Range 200nm – 1200nm
LCD Screen 3.5” 180 °Rotating
Storage SD Card
File Format 16bit TIFF
Lenses 78mm quartz for UV; Nikon AF lens for VIS-NIR
Lens Mount Nikon F mount
Laser Indicator X2 on diagonal of lens
Filter 254nmBP, 760nmLP, 850nmLP, 950nmLP
Camera Functions Magnified view (live view shooting and playback)
Bracket exposure
Self-timer
Pseudo color
Image resolution 2056x2048
Transmission Interface USB 2.0
Fixed Mode Tripod
