Specifications
Brand Name :
Syntax
Model Number :
MD1
Certification :
EN60439-4, IEC60529, SAA
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 sets/month
Delivery Time :
15 working days
Packaging Details :
Packed by paper carton
Material :
HDPE / PE (polyethylene, a kind of plastic)
Dimension :
430x380x460mm
IP Protection Rate :
IP67 Waterproof
Color :
Black
Description
Syntax MD1 Three Phase 63A/5P HDPE Portable Distribution Box
IP67 Waterproof Stage Light Distribution Box - 430×380×460mm
Technical Specifications
Attribute Value
Box Model MD1 Portable Distribution Board IP67
Color Black (Orange and Yellow available)
Dimensions 430×380×460mm
Incoming Main Switch 1×5P 63A 400V IP44 Panel Mounted Inlet, protected by 1×3P 63A MCB
Outgoing Circuit 1 3×5P 32A 400V IP44 Panel Mounted Sockets, protected by 3×3P 32A MCBs
Outgoing Circuit 2 3×2P+E 16A 220V Schuko Sockets, protected by 3×1P 16A MCBs
Additional Features Multi-meter included
Component Brands Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by Schneider

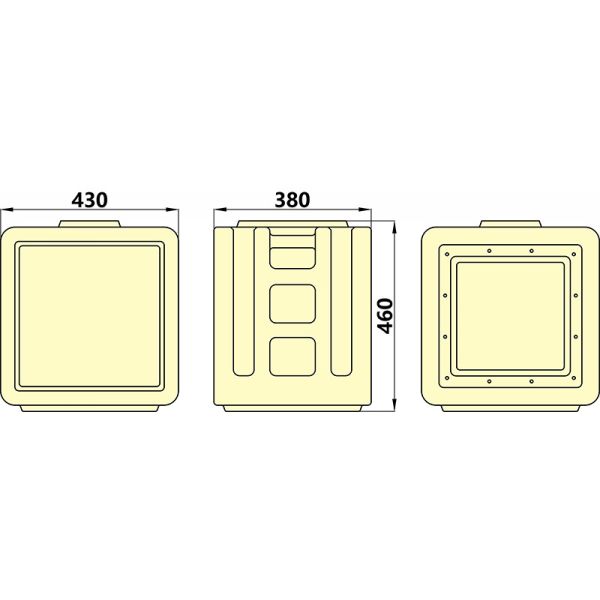

Product Drawings
Syntax MD1 Three Phase 63A/5P HDPE Portable Distribution Box IP67 Waterproof for Stage Light Applications Syntax MD1 Three Phase 63A/5P HDPE Portable Distribution Box IP67 Waterproof for Stage Light Applications
Key Features & Benefits
  • Designed to EN 60439-4, IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Black, Orange, and Yellow colors
  • Constructed from durable HDPE/PE polyethylene material
  • Stackable design for efficient storage and stability
  • Operating temperature range: -20℃ to +75℃
  • Quick assembly and dismantling capabilities
  • Safe and reliable electrical connections
  • Suitable for indoor and outdoor applications
  • Integrated feet for secure stacking
  • 24-month warranty on all parts and manufacturing defects
Premium Construction
This three phase temporary stage light board 63 amp three phase outdoors is specially bespoke for stage temporary power box. The incoming is 63AMP/5P 380v IP44 inlet protected by 1 nos 3P 63A MCB, with a multi-functional meter, and the outgoing is 3 nos 32A/5P 380v IP44 sockets protected by 3 nos 3P 32A MCBs and 3 nos 16A/2P+E 220v Schuko sockets protected by 3 nos 1P 16A MCBs. The boxes is made in PE and IP67 Waterproof, which is perfect for the sports events especially for swimming match. We can bespoke power distro boxes built to order.
Applications
Ideal for various industrial and commercial applications including:
  • Tunnel construction and drilling rigs
  • Marine, railway, and military applications
  • Construction sites and event technology
  • Gravel pits, quarries, and strip mining
  • Chemical plants and industrial facilities
  • Airports and container terminals
  • Large-scale indoor and outdoor events
  • Urban infrastructure projects
  • Power plants and manufacturing facilities
  • Communication equipment and automated production lines
  • Sports stadiums, concerts, and entertainment venues
  • Electric vehicle charging systems
Customization Options
Syntax offers comprehensive customization services for distribution boxes. Our capabilities include CNC perforation for custom device mounting, pre-wiring of plugs, sockets, and circuit breakers, and installation of IP67 waterproof lockable hinged windows to protect electrical components from environmental elements.
Quality Assurance
Syntax distribution boxes utilize cutting-edge technology and state-of-the-art manufacturing techniques. All units provide excellent circuit protection using MCB, RCD, RCCB, or RCBO breakers, ensuring maximum safety for personnel and equipment across all applications.
