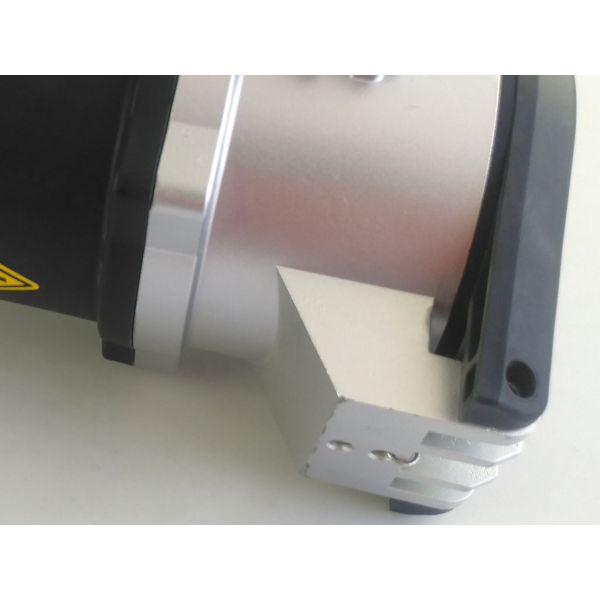

160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
Specifications
Brand Name :
HYPER
Model Number :
75201
Certification :
DIN VDE 0623 EN/IEC 60309-2
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs / month
Delivery Time :
15 days
Packaging Details :
packed by standard paper carton
Rated Current :
160 Amps
Poles :
4 Poles
Rated Voltage :
400 Volts
Earth position :
6h
Frequency :
50-60 Hz
Protection Degree :
IP67 Rainproof
Description

4P 160A IP67 Water Protected High Ampere Connector with Handle and Cover in Black 400V Industrial Sockets part no. 75201

Features:

  • High Current connections from 315 amps to 600 amps
  • Aluminium Tunnel Boxes
  • Explosion Proof range
  • IP55 to IP67
  • if required, pilot cables can be introduced separately into plugs/ enclosures, please add „PK“ to the part number
  • Part no. 75201

Technique Parameter:

Technical information
Ampere 160 A
Poles
4 p
Voltage
400 V
Earth position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type
IP 67

Picture:

160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
160A High Current Plugs And Sockets With Handle Cover 400V Rated Volts
