Specifications
Brand Name :
GENFOR
Model Number :
GFA11-7.0 B3
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Max.Power :
7.5 KVA
Rated Power :
7.0 KVA
Voltage :
110~240V As required
Power Factor :
1.0
Speed :
50Hz 3000/60Hz 3600rpm
Copper wire :
100%
Shaft ouput :
As Request
Shaft Size :
25.5/26mm etc
Match Engine :
192 Diesel/Gasoline
Description

7KW Pull-belt Power Brush Brushless Alternator High Output Alternator AC Dynamo

1. Cast aluminum shell

2. Easy to install with many kinds of machine,such as gasoline/diesel engine

3. 100% copper wire,and cold-rolled silicon steel

7KW Pull - Belt Power Dynamo Alternator , High Capacity Alternator 25.5 / 26mm Shaft Size

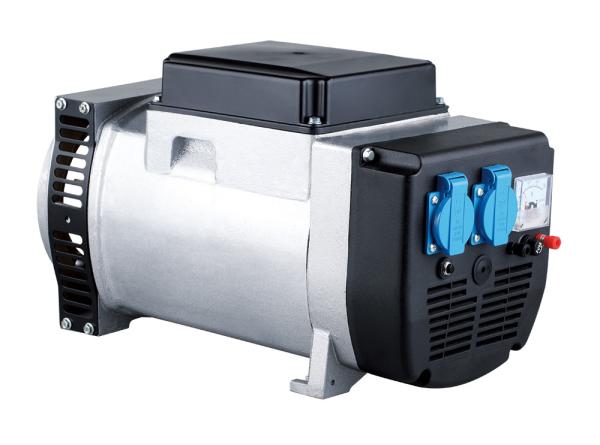

Single-Phase with Eur socket.(socket as request)

7KW Pull - Belt Power Dynamo Alternator , High Capacity Alternator 25.5 / 26mm Shaft Size

Double Bearing type with Socket

7KW Pull - Belt Power Dynamo Alternator , High Capacity Alternator 25.5 / 26mm Shaft Size

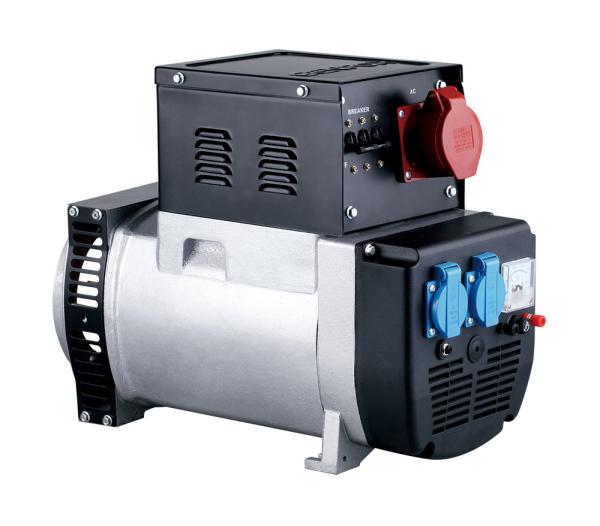

Taper shaft type Three phase with control panel

7KW Pull - Belt Power Dynamo Alternator , High Capacity Alternator 25.5 / 26mm Shaft Size

Single/Three-Phase with Lead output

TECHNICAL DATE

Type

Rated Power (KVA)

Max Power (KVA)

Type

Rated Power (KVA)

Max Power (KVA)

GFA10-2.0 B3

50Hz-3000r.p.m

2.0

2.3

GFA11-5.0 B3

50Hz-3000r.p.m

5.0

5.5

60Hz-3600r.p.m

2.5

2.8

60Hz-3600r.p.m

5.5

6.0

GFA10-2.5 B3

50Hz-3000r.p.m

2.5

2.8

GFA11-6.0 B3

50Hz-3000r.p.m

6.0

6.5

60Hz-3600r.p.m

3.0

3.3

60Hz-3600r.p.m

6.5

7.0

GFA10-3.0 B3

50Hz-3000r.p.m

3.0

3.3

GFA11-7.0 B3

50Hz-3000r.p.m

7.0

7.5

60Hz-3600r.p.m

3.5

4.0

60Hz-3600r.p.m

7.5

8.0

GFA10-4.0 B3

50Hz-3000r.p.m

4.0

4.5

GFA11-8.0 B3

50Hz-3000r.p.m

8.0

8.5

60Hz-3600r.p.m

5.0

5.5

60Hz-3600r.p.m

8.5

9.0

Note:The data for your information only ,and changes based on practicality

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,220/380,230/400

DC Output:12V/8.3A(Optional)

Excitation Type:Brush&Brushless

Remarks:Dimensions marked above are according to Honda engine GX160/ GX390

Package.

We have different original packages for selling in different counties.
we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
