2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V
Specifications
Brand Name :
GENFOR
Model Number :
GFA174-2.0
Certification :
CE
Place of Origin :
China
MOQ :
Sample accept
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
20-25days
Packaging Details :
Carton/box
Shaft ouput :
As Request
Copper wire :
100%
Speed :
50Hz 3000/60Hz 3600rpm
Shaft Size :
As Request
Marterials :
Aluminum Casting
Color :
As Request
Brand :
GENFOR/OEM accept
Voltage :
110~240V As required
Description

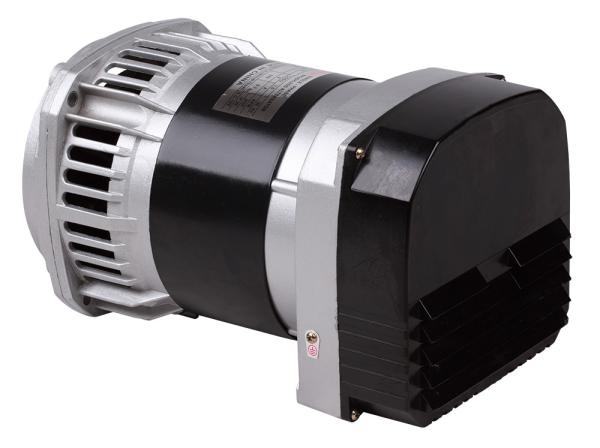

2.5KW 2-Poles High Output Alternator Selft-Exciting Single-Phase Dynamo

Model tyep: GFA174-2.0

Standy Power: 2.5KW

Rated Power: 2.0KW

Shaft Type: Taper Shaft 1:5/1:5.333

1. Cast aluminum shell

2. Easy to install with many kinds of machine,such as gasoline/diesel engine

3. 100% copper wire,and cold-rolled silicon steel

2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V

Single-Phase with Eur socket.(socket as request)

2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V

Double Bearing type with Socket

2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V

Taper shaft type

2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V

Single/Three-Phase with Lead output

Insulation Class:CL.F(△T≦130K)

Power Factor:CosΦ=1(Single-phase);CosΦ=0.8(Three-phase)

Rated Voltage:110,115,120,220,230,240,110/220,115/230,120/240,

DC Output:12V/8.3A(Optional)

Excitation Type:Brushless

2.5KW 2 Poles Single Phase AC Alternator , High Efficiency Alternator 110 - 240V

TECHNICAL DATE

Type

Rated Power

Max Power

Overall&Mounting Dimensions(mm)

A

B

C

E

ΦF

Taper

GFA174-2.0

50Hz-3000r.p.m

2.0

2.3

345

269

80

23/52.3

17/19.17

1:5/

1:5.333

60Hz-3600r.p.m

2.5

2.8

GFA174-2.5

50Hz-3000r.p.m

2.5

2.8

355

279

90

60Hz-3600r.p.m

3.0

3.5

GFA174-3.0

50Hz-3000r.p.m

3.0

3.3

375

299

110


47/63.2


26/25.4


1:5/ 1:5.3333

60Hz-3600r.p.m

3.5

4.0

GFA174-3.5

50Hz-3000r.p.m

3.5

4.0

395

319

130

60Hz-3600r.p.m

4.0

4.5

GFA174-4.0

50Hz-3000r.p.m

4.0

4.5

405

329

140

60Hz-3600r.p.m

5.0

5.5

GFA174-5.0

50Hz-3000r.p.m

5.0

5.5

415

339

150

60Hz-3600r.p.m

5.8

6.5

Note:The data for your information only ,and changes based on practicality


We have different original packages for selling in different counties. Package.

we also can custom the packages as you want..

We have strict packaging to ensure that the goods are not damaged and safely reach your hands.

Delivery.

Generally, it will take 15 to 20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We will recommend the most suitable shipping method for you.
