Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kg
Specifications
Brand Name :
CHINOWING
Model Number :
T26
Certification :
FCC CE KC
Place of Origin :
China
MOQ :
1pcs
Price :
USD$5648.40-USD$7217.40
Payment Terms :
T/T
Supply Ability :
1-10000PCS
Delivery Time :
2-8 working days
Packaging Details :
Plastic suitcase+ carton packing
Channel :
16 physical channel
Remote control range :
+V21:10KM
Frequency :
+V21:800MHz/1.4GHz/2.4GHz
RF power :
V21: 0.1-1w(adjustable)
Remote control latency :
40ms
Battery capcity :
7.4V/3220mAh(RC)+8.4V/6800mAh（PC）
Duration :
9h with full battery capacity
Weight :
1.5kg
Screen :
7inch+industrial touch screen+800CCD sunlight readable
Resolution :
1280*800
Integrated computer :
Panasonic FZ-M1
CPU :
Intel i5 7Y57
ROM :
4G
Storage :
256GB SSD
System :
Windows 10
Dimension :
300mm*158mm*40mm
IP rating :
IP65
Network :
WIFI/Bluetooth/4G
External interface :
USB3.0 *2
Operating temperature :
-20~+60℃
Description

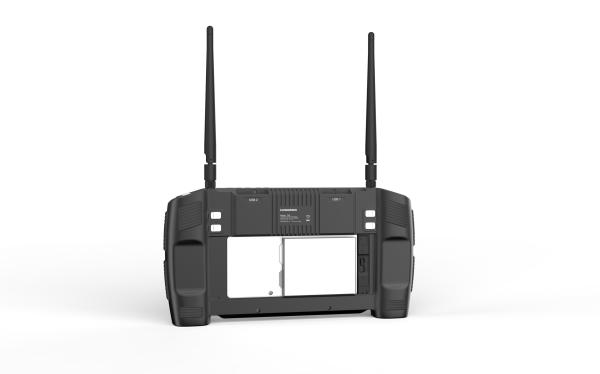

T26 military grade portable command ground control station 1.5kg

The T26 is a lightweight portable command and control system with full integration of the Panasonic FZ-M1 and video&data&RC link.It can be used for mission planning, attitude control,payload control,remote monitoring,real-time video display,etc.In order to gurantee high performance and convenient operation,T26 has a sunlight-readable multi touch display,light weight,16 channels,Windwos 10 opertaing system,and a powerful hardware platform toenable scalability.

The rugged,water and dust-proof design,is especially suitable for the operation in the harsh environment.

Performance upgrade

  • Integration of Panasonic is three computers FZ-M1
  • The original 10 Windows system

  • Video & telemetry & RC& computer in one, 3 frequency modules in one

  • Sunshine readable, brightness 800nits
  • IP65 rating

  • Aviation grade aluminum shell, the overall weight only 1.5kg


Perfect remote control experience

  • Double hall rocker
  • Double round rocker
  • Light alloy buttons


Big long battery life

  • Battery capacity is 3220 mAh+6800 mAh
  • Remote sensing length test about 9 h
  • The web browsing time is about 12 h


Modeling design

  • Aviation aluminum alloy shell, strong and lightweight
  • Product the total weight is only 1.5 kg
  • Around with soft rubber, skid resistance to knock against

Military Grade Diy Ground Control Station , Uav Ground Control System 1.5kgMilitary Grade Diy Ground Control Station , Uav Ground Control System 1.5kgMilitary Grade Diy Ground Control Station , Uav Ground Control System 1.5kgMilitary Grade Diy Ground Control Station , Uav Ground Control System 1.5kgMilitary Grade Diy Ground Control Station , Uav Ground Control System 1.5kg

Parameters

T26 GCS
Channel 16 physical channels ROM 4GB
Remote control range 加 V21:10KM Storage 256GB SSD
Frequency 加V21:800MHz/1.4GHz/2.4GHz System Windows 10
RF power 加V21:0.1W-1W(adjustable) Dimension 300mm*158mm*40mm
Remote control latency 40ms IP rating IP65
Battery capacity 7.4V/3220mAh (RC) +8.4V/6800mAh(PC) Network wifi/bluetooth/4G
Duration 9H with full capacity External interface USB3.0*2
Screen 7inch+industrial touch screen+800CCD sunlight readable Operating temperature -30~60℃
Integrated computer Panasonic FZ-M1
CPU Intel i5 7Y57
