Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer
Specifications
Stock :
1PC
MOQ :
1PC
Price :
US$100.00-800.00
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Shipping Method :
LCL, AIR, FCL, Express
Model NO. :
K900
Certificate :
CE
Gas :
customized
Alarm Type :
Vibration Alarm with Light, Sound
Voltage :
(17-30)VDC
Signal Output: :
4-20mA/ RS485 Optional
Ambient Humidity :
10%Rh - 95%Rh
Ambient Temperature :
-10 Degree-70 Degree
Pressure :
86 Kpa-106 Kpa
Explosion-Proof Grade :
Ex D Iic T6
Warranty :
1 Year
HS Code :
8531100000
Trademark :
KELISAIKE
Origin :
Nanjing, Jiangsu, China
Description

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer​

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

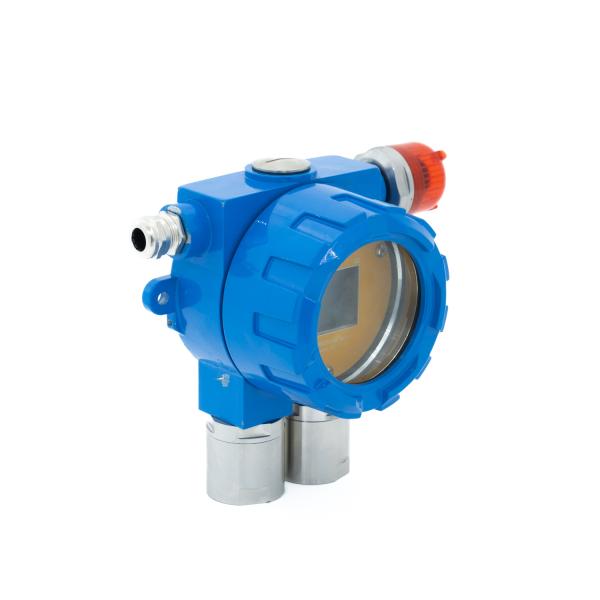

K900 fixed gas detection transmitter can be widely used in metallurgy,petroleum,petrochemical,chemical,shipbuilding and other industries.The instrument adopts explosion-proof design,(4 ~ 20) MA standard signal output, which can be transmitted remotely and directly into DCS system. The detection sensor has the characteristics of high sensitivity, rapid response, long service life and short polarization time, and is at the leading level of similar products in China.

​

Product Detail:

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Parameter:

Working conditions supply voltage (17-30)VDC
power waste < 4W
ambient temperature ( -10~70) °c
ambient humidity 10%RH ~ 95%RH
Pressure range 86 KPa~106 KPa
Output mode output signal (4-20) MA / RS485 optional
Technical indicators Detection gas See the specific table above
response time ≤30S
Detection error ≤ 5% f · s
Zero drift < 2% f · s / year
Explosion proof sign ExdIlCT6
Degree of protection lP65
other transmission distance The longest distance is more than 1000m (RVVP 3 is selected for use with the controller)×1.5 mm2 shielded cable)
Operation mode Infrared remote control
Audible and visual alarm Explosion proof audible and visual alarm lamp can be selected
weight With display ≤ 1.5kg; without display ≤ 1.2kg
Overall dimension 183mm×143mm×107mm (display type)
183mm×143mm×92mm (no visible type)
Installation mode Wall type, pipe type

Common Used Gas Detection List

No. Detection gas Range Accuracy 90% response time Min readout Low/high alarm
1 PH3 0-5ppm ±5%(F.S) ≤25s 0.01ppm 0.3ppm/5ppm
2 O2 0-30%vol ±5%(F.S) ≤15s 0.1%vol 18%vol/23%vol
3 EX(LEL/CH4) 0-100%lel ±5%(F.S) ≤15s 1%lel 25%lel/50%lel
4 CO 0-2000 ppm ±5%(F.S) ≤25s 1 ppm 50ppm/100ppm
5 H2S 0-100 ppm ±5%(F.S) ≤30s 1 ppm 10ppm/20ppm
6 NO2 0-20 ppm ±5%(F.S ≤25s 0.1 ppm 3ppm/10ppm
7 NO 0-250 ppm ±5%(F.S) ≤60s 1 ppm 25ppm/50 ppm
8 SO2 0-100 ppm ±5%(F.S) ≤30s 0.1 ppm 2 ppm /10 ppm
9 CL2 0-20 ppm ±5%(F.S) ≤30s 0.1 ppm 1 ppm /10 ppm
10 NH3 0-200ppm ±5%(F.S) ≤50s 1 ppm 25 ppm /50 ppm
11 H2 0-1000 ppm ±5%(F.S) ≤60s 1 ppm 50 ppm /100 ppm
12 HCN 0-50ppm ±5%(F.S) ≤200s 0.1ppm 10ppm/20ppm
13 HCL 0-20ppm ±5%(F.S) ≤60s 0.1ppm 5ppm/10ppm
14 CH4(IR) 0-5%vol ±5%(F.S) ≤60s 0.01%vol customized
15 CO2(IR) 0-5%vol
(0-5000ppm)		 ±5%(F.S) ≤60s 0.1%vol
(1ppm)		 customized
16 PID(VOCs) 1-1999ppm ±5%(F.S) ≤20 0.1ppm customized
17 C3H8 0-5%vol ±5%(F.S) ≤60s 0.01%vol customized
18 O3 0-10ppm ±5%(F.S) ≤30s 0.02ppm 1ppm/2ppm

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

Industrial Fixed 2 In1 Gas Detector 4-20mA/ RS485 Gas LPG Leak Analyzer

>>> Our Services

1.For all our customers, our products have 1 year warranty and life-long maintenance.

2.All inquiries will be replied in 24 hours.

3.Providing technical support, professional engineers are specialized in dealing with gas monitoring problems you met.

4. OEM and ODM service are welcome

5.KELISAIKE plant is located in Nanjing, only 1 hour by high speedtrain from Shanghai. Welcome to visit the factory.

6.All products are well tested and packed before shipment; the certificate of inspection will be provided.

>>> Why choose KELISAIKE?

1. Mutual benefit : We are a factory. The price is much more competitive than others in the same quality.

2. Professional engineers: With 10+ years history, KELISAIKE has a professional engineering team: 4 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech manufacturing equipments, we make more accurate and stable products.

3. Customize : We have strong R&D team, the custom product as your request are available.

4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥500PCS).

5. Mix order : We accept mix order, different model and small quantity order.

6. After service: (a) 1 Year warranty. (b) If there's any inferior-quality products are found, new ones could be sent to replace at free cost in the next order after confirmation.
