High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv
High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv
High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv
High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv
Specifications
Brand Name :
CPE
Model Number :
C4-1050
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN CRATE
Color :
brown
Material :
Porcelain
Application :
Transmission and distribution of electric power
Standard :
IEC 60168
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

132kv High Voltage Post Ceramic Electrical Porcelain Insulator Reactors Power Line Insulators

Description:

Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.

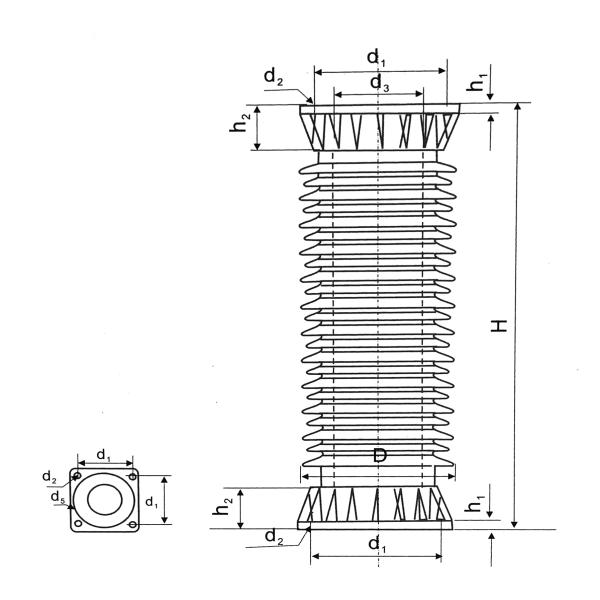

Creepage Bending 主要尺寸 mm Shed 重量
Distance failing Main Dimensions mm No. Weight
mm kN.m ( kg )
H h1 h2 D d1 d2 d3 d4 d5 /
3287 54.9 1400 30 140 475 455 10-Φ15 265 / / Big12small11 310
3287 28 1400 30 140 475 455 18-Φ15 265 / / Big12small11 293
4537 70 1600 25 140 450 410 8-Φ14 220 / / / 321
4583 47 1700 25 135 430 410 16-Φ14 220 / / Big15small15 224
4263 56 1440 25 140 495 455 18-Φ15 265 / / Big164small14 365.4
5156 56 1800 25 140 480 455 18-Φ15 265 / / Big19small18 415.4
5050 70 1700 30 140 485 455 18-Φ15 265 / / Big18small17 375
High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv

High Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kvHigh Voltage Post Ceramic Electrical Porcelain Power Line Insulators 132kv

Application:

Ceramic pillar insulators are used for insulation and support of live parts in outdoor power plants, distribution devices and electrical equipment of power frequency AC substations.

Competitive advantages:

Reasonable insulation structure high reliability of inter-turn insulation.

Small volume light weight

Stainless steel flange low magnetic inductivity high resistivity.

Convenient transportation and flexible installation.

Low loss

Low temperature rise

High mechanical strength, strong weather ability.

Outstanding crack resistance.

Low thermal expansion coefficient
