3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
3.5kg ANSI 52-2 Porcelain Suspension Insulator For Power Line
Specifications
Brand Name :
CPE
Model Number :
ANSI 52-2
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN PALLET
Color :
Brown
Material :
Porcelain C-110
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

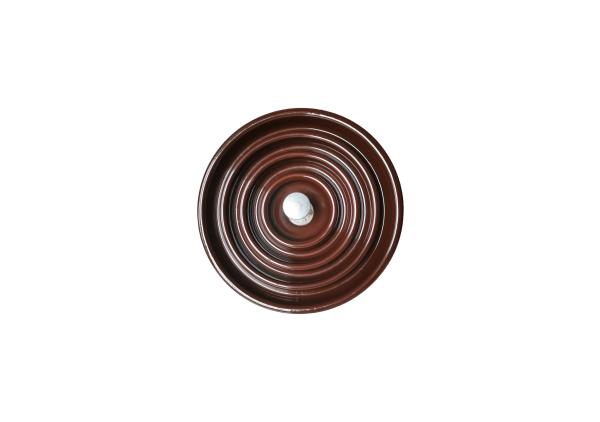

ANSI 52-2 cap and pin Porcelain Suspension Insulator / brown

Description:

ANSI CLASS Disc dia. (mm) Unit spacing height (mm) Creepage distance (mm) Mechnical failing load (KN) Lower frequency flashover voltage Critical impulse flashover voltage Weight (kg)
Dry(kV) Wet(kV) Positive(kV)
52-2 190 146 210 67 65 35 110 3.5

1 the insulator caps are made of ductile iron or cast steel ,we conduct routine magnetic powder test​ on each piece of caps . we guarantee the inside of cap without any defects such as air , hole , crack etc. metal fitting surface are hot galvanized , zinc thickness meet ASTM 135 standard or IEC related standards.

2 the insulation parts are made of high aluminum porcelain C120 . glaze are shinning and free of defect . color can be grey , brown or white .

3 we use excellent Portland cement code No. 52.5 to assemble insulation body with related caps .​ even after years of servicing , the cement still keep good performance.

Applications:

the long rod insulator used for railway system and city power network .

Competitive Advantage:

the insulators have excellent electrical & machincal performance .

we offer up to 4 years quality guarantee as per tender requirement or customer's requirement .

The porcelain glaze are hard and shinning , good self-cleaning advantage and easy for maintenance .

We can design insulators based on customer’s requirement or special technical specifications.
