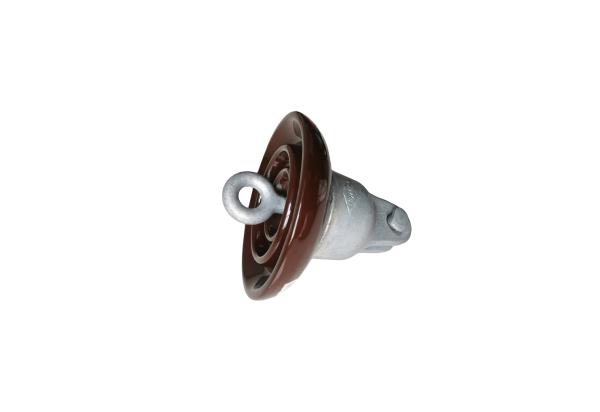

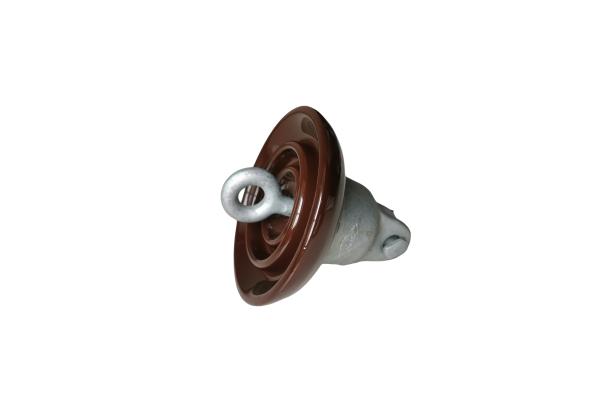

ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
ANSI Standard OEM 4.6kg Suspension Type Insulators
Specifications
Brand Name :
CPE
Model Number :
52-3
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS PER MONTH
Delivery Time :
35DAYS
Packaging Details :
WOODEN PALLET
Color :
Brown
Material :
Porcelain C-110
Application :
Transmission and distribution of electric power
Standard :
ANSI
Size :
Customized Size
Sample :
Provided
Oem :
YES
Pack :
Standard export packing
Description

ANSI Standard suspension porcelain insulator / brown / OEM available

Description:

ANSI CLASS Disc dia. (mm) Unit spacing height (mm) Creepage distance (mm) Mechnical failing load (KN) Lower frequency flashover voltage Critical impulse flashover voltage Weight (kg)
Dry(kV) Wet(kV) Positive(kV)
52-3 254 146 292 67 80 50 110 4.6

The insulator cap are made from high density malleable iron , each piece of caps are well tested with magnetic powder testing .
The insulator cap surface are hot galvanized , Min. zinc thickness are more than 85μm . the galvanization surface are smooth and shinning , and without of any defect.

Features:

1. Porcelain metal cap, steel foot and porcelain upper part surfaces which are in contact with cement shall be coated with a film of thin bitumastic paint.
2. Standard: product drawing, GB1001-86 (cap and suspension insulator technical requirements), GB7253-87
3. Cement adhesive shall conforms to JB4307-86


Applications:

This cap and pin suspension porcelain insulator is used for overhead transmission lines.

Competitive advantage:

Our insulators have very good M & E performance , we offer 2 years quality guarantee .

Every units of insulators are tested qualified , to guarantee all insulators are without any defect.

If customer can provide technial data , We will make related insulators design . ​

OEM product are available.
