Specifications
Place of Origin :
China
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Inletdiameter :
200 - 1200 mm
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Certification :
CE, UL, Rohs
Supply Ability :
100000 Sets/week
MOQ :
1 set
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Brand Name :
Popula
Airflowcapacity :
1000 - 50000 CFM
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Model Number :
DWT-I
Payment Terms :
T/T
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Operatingtemperature :
-20°C to 80°C
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Material :
Steel / Stainless Steel
Description

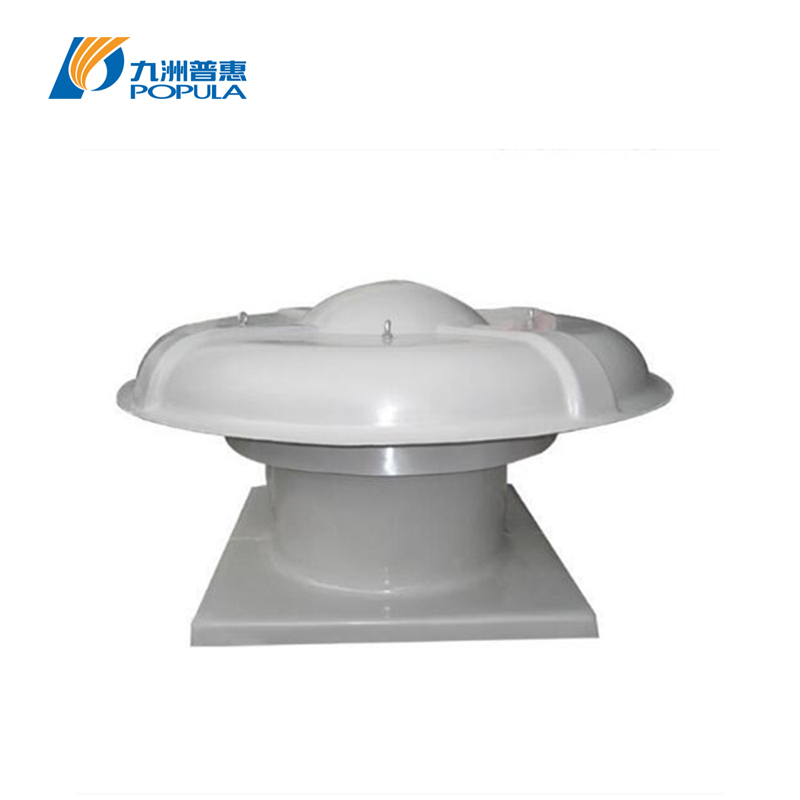

DWT-I Type FRP Axial Flow Roof Fan

The DWT-I Type FRP Axial Flow Roof Fan is a high-performance, corrosion-resistant ventilation unit designed for roof installation. Constructed from fiberglass composite material, it is ideal for low-pressure, high-airflow applications in industrial and commercial environments.

DWT-I Model Features

Material & Structural Properties

· The fan body is constructed from fiberglass composite material, offering excellent corrosion resistance against acids, alkalis, and corrosive chemicals.

· Compact, aerodynamic design for roof installation, with a durable, weatherproof housing.

· Optimized axial flow impeller for high airflow and efficiency, with low noise and vibration.

· Lightweight construction for easy installation and maintenance.

Core Advantages

· Corrosion Resistance: The FRP construction provides long-term protection against corrosive gases and weather conditions, making it ideal for industrial facilities.

· High Airflow, Low Pressure: Designed for high-volume ventilation in warehouses, factories, and large commercial spaces.

· Low Noise & Energy Efficient: Optimized impeller design delivers high airflow with minimal noise and power consumption.

· Easy Installation & Maintenance: Roof-mounted design with simple access for inspection and maintenance.

Transport Medium Restrictions

The conveyed gas must not contain sticky substances. The concentration of dust and hard particles must not exceed 150mg/m³. The gas temperature must be ≤60°C, and the relative humidity can be up to 100%.

Model Selection

The series includes models from 3A to 11.2A, with power ranging from 0.18kW to 7.5kW and speeds from 710r/min to 2900r/min.

Model Power(kW) Rotation(r/min) Air Flow(m³/h) Total Pressure(Pa)
3A 0.18 / 0.37 1450 / 2900 1900~2120 / 2600~3300 110~90 / 222~161
3.5A 0.37 / 0.75 1450 / 2900 2850~3320 / 4150~5320 150~100 / 210~140
4A 0.55 / 1.1 1450 / 2900 4580~5700 / 5300~7450 190~156 / 240~183
4.5A 0.37 / 0.55 1450 / 1450 5520~6067 / 5800~6220 130~100 / 140~110
5A 0.37 / 0.55 960 / 1450 6400~7000 / 5600~8000 130~103 / 181~135
6A 0.55 / 1.1 / 1.5 710 / 960 / 1450 7600~8500 / 9100~11000 / 13000~15000 136~111 / 193~168 / 267~222
7A 0.75 / 1.1 710 / 960 9200~12000 / 12500~17500 177~131 / 202~165
8A 1.5 / 2.2 710 / 960 16000~20000 / 23000~27000 167~129 / 228~165
9A 2.2 / 4 710 / 960 24000~32000 / 25000~34500 177~126 / 246~192
10A 3 / 5.5 710 / 960 35000~46000 / 39000~50000 183~131 / 307~240
11.2A 7.5 960 41000~53855 275~205

Q1: What is the primary application of the DWT-I fan?
A1: It is designed for roof-mounted ventilation in industrial facilities, warehouses, factories, and large commercial buildings requiring high-volume, low-pressure exhaust.
Q2: Why is this fan made of FRP?
A2: The fiberglass composite material provides excellent corrosion resistance against corrosive gases and weather conditions, making it ideal for industrial and outdoor applications.
Q3: Can this fan be installed on any type of roof?
A3: Yes, it is designed for installation on flat or low-slope roofs with standard mounting bases.
Q4: What are the operating limits for temperature and humidity?
A4: The maximum gas temperature is 60°C, and it can operate in high humidity environments up to 100% relative humidity.
Q5: Can the fan handle dust-laden air?
A5: Yes, but the dust and hard particle concentration must not exceed 150mg/m³, and the gas must not contain sticky substances.
Q6: Is this fan suitable for continuous operation?
A6: Yes, it is designed for 24/7 continuous operation with low noise and vibration.
Q7: What type of motor does it use?
A7: It uses a direct-drive motor, with power ratings varying by model.
Q8: How do I select the right model for my project?
A8: Select based on your required airflow (m³/h) and static pressure (Pa). Our technical team can help you choose the best model based on your specific application.
Q9: Does the fan require regular maintenance?
A9: It has minimal maintenance requirements, with easy access to the motor and impeller for inspection and cleaning.
Q10: What after-sales support do you provide?
A10: Each unit includes a detailed installation and operation manual, and we offer full after-sales technical support.
