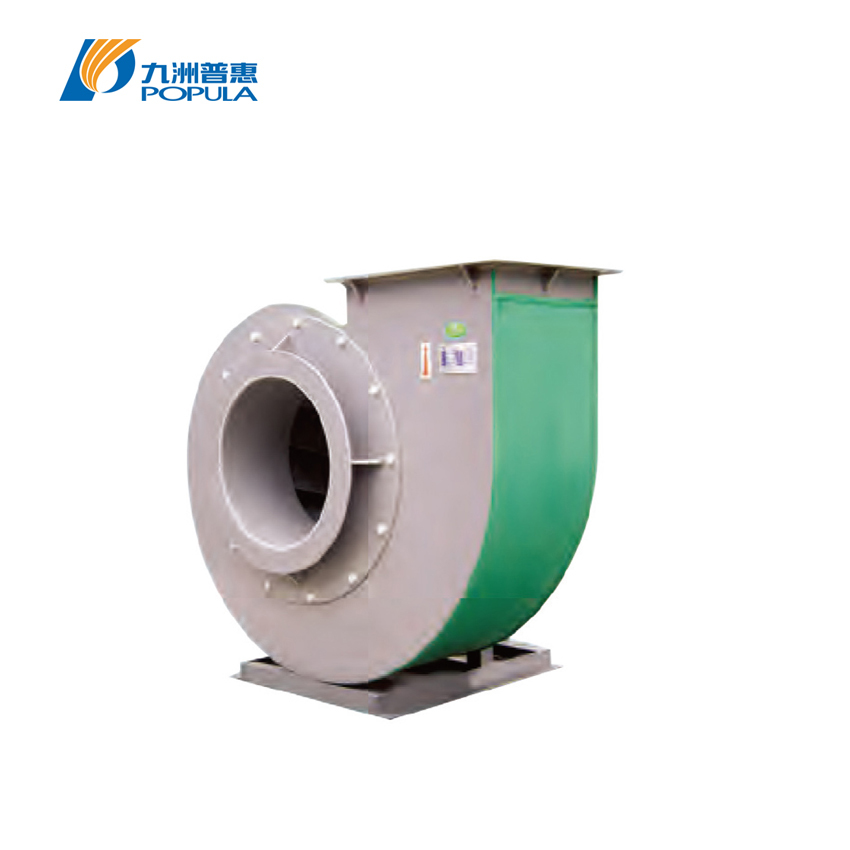

Lightweight Plastic Industrial Fan PVC Fume Extractor Acid Resistant for Mild Chemical Fumes Exhaust
Lightweight Plastic Industrial Fan PVC Fume Extractor Acid Resistant for Mild Chemical Fumes Exhaust
Specifications
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Supply Ability :
100000 Sets/week
Inletdiameter :
200 - 1200 mm
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Payment Terms :
T/T
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Certification :
CE, UL, Rohs
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Operatingtemperature :
-20°C to 80°C
Place of Origin :
China
Brand Name :
Popula
MOQ :
1 set
Protectionclass :
IP54 / IP55
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Powersupply :
220V / 380V / 440V
Model Number :
PVC4-72
Material :
Steel / Stainless Steel
Description

PVC4-72 Type Polyvinyl Chloride (PVC) Centrifugal Fan

The PVC4-72 Type Polyvinyl Chloride (PVC) Centrifugal Fan is a corrosion-resistant industrial fan constructed from rigid polyvinyl chloride plates, heat-pressed and welded together. Based on the performance parameters of the metal 4-72 series, it is designed for ventilation and exhaust of acidic and alkaline corrosive gases in scientific research, chemical, metallurgy, electronics, Clean process, textiles, electroplating, mining, laboratories, and environmental protection equipment.

PVC4-72 Model Features

Material & Structural Properties

· The entire fan body is made of high-quality rigid polyvinyl chloride (PVC), offering excellent resistance to most acids, alkalis, and corrosive media.

· The direct-drive design ensures low mechanical vibration, low noise, and stable operation.

· The PVC material is lightweight, rigid, and resistant to aging, making it ideal for long-term continuous use in corrosive environments.

Core Advantages

· Excellent Corrosion Resistance: PVC construction provides long-term protection against corrosive gases, outperforming standard steel fans in aggressive environments.

· Lightweight & Durable: Low specific gravity reduces installation load requirements, while the PVC material offers excellent structural strength.

· Stable & Efficient Performance: Optimized aerodynamic design delivers high efficiency, low noise, and consistent pressure output.

· Low Maintenance: The monobloc structure is easy to clean and inspect.

Transport Medium Restrictions

The fan cannot be used to handle aromatic compounds, fatty acids, halogenated aromatic derivatives, ketones, or flammable/explosive gases. The conveyed gas must not contain sticky substances; the concentration of dust and hard particles must not exceed 150mg/m³, gas temperature ≤50°C, and relative humidity ≤100%.

Model Selection

The series includes models from 2.8A to 8A, with power ranging from 0.75kW to 7.5kW and speeds from 960r/min to 1450r/min.

Model Power(kW) Rotation(r/min) Air Flow(m³/h) Total Pressure(Pa)
2.8A 0.75 1450 565~1060 278~126
3.2A 0.75 1450 844~1522 304~198
3.6A 1.1 1450 1332~2270 363~237
4A 1.1 1450 2006~3238 491~309
4.5A 1.5 1450 2856~4652 614~406
5A 2.2 1450 3864~6755 760~490
6A 1.5 / 4 / 5.5 960 / 1450 / 1450 4420~7856 / 6677~12005 / 6900~12310 488~307 / 1120~720 / 1186~760
7A 3 / 7.5 960 / 1450 7312~13060 / 10602~19053 736~468 / 1450~884
8A 5.5 960 10452~17213 752~512

Q1: What is the primary application of the PVC4-72 fan?
A1: It is designed for ventilation and exhaust of acidic and alkaline corrosive gases in chemical plants, electroplating workshops, laboratories, and environmental protection facilities.
Q2: How does this fan differ from standard metal centrifugal fans?
A2: Unlike steel fans, the PVC4-72 is constructed entirely of polyvinyl chloride (PVC), which provides excellent resistance to corrosion from acids, alkalis, and other chemicals.
Q3: What are the limitations of the PVC material?
A3: The fan cannot be used to handle aromatic compounds, ketones, or halogenated hydrocarbons, and the maximum gas temperature is 50°C.
Q4: What corrosive media is this fan suitable for?
A4: It works well with most inorganic acids, alkalis, and salts, as long as they do not contain sticky substances.
Q5: What are the operating limits for temperature and humidity?
A5: The maximum gas temperature is 50°C, and the relative humidity can be up to 100%.
Q6: Can the fan handle dust-laden air?
A6: Yes, but the dust and hard particle concentration must not exceed 150mg/m³, and the gas must not contain sticky substances.
Q7: Is this fan suitable for 24/7 continuous operation?
A7: Yes, it is designed for continuous operation with low vibration and noise, making it ideal for industrial processes.
Q8: How do I select the right model for my project?
A8: Select based on your required airflow (m³/h) and static pressure (Pa). Our technical team can help you choose the best model based on your specific application.
Q9: Can you provide custom specifications?
A9: While we offer a standard range, we can discuss customizations for specific corrosive environments or non-standard dimensions.
Q10: What after-sales support do you provide?
A10: Each unit includes a detailed installation and operation manual, and we offer full after-sales technical support.
