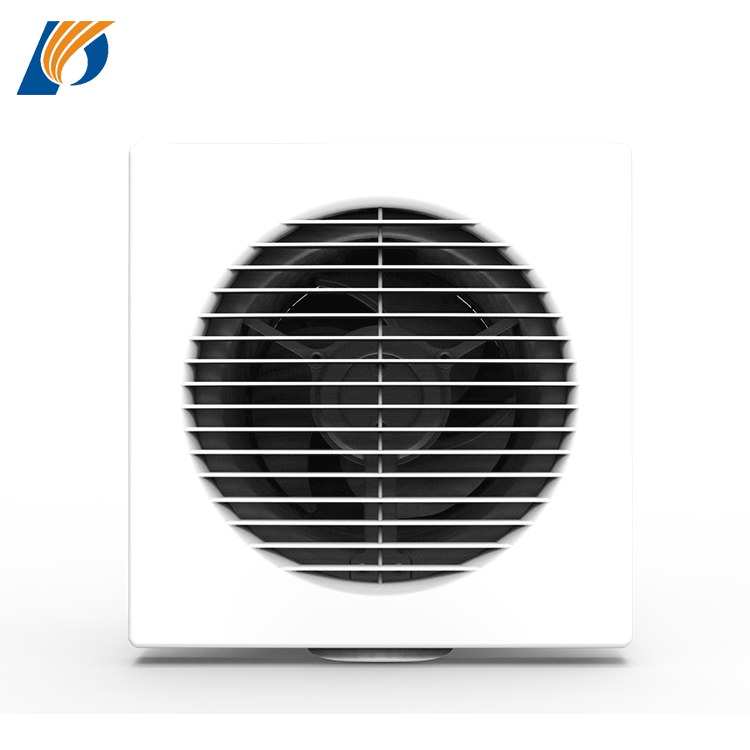

Square Design Window Exhaust Fan Anti Static Anti Aging Window Ventilation Fan 40-45dB
Square Design Window Exhaust Fan Anti Static Anti Aging Window Ventilation Fan 40-45dB
Specifications
Operatingtemperature :
-20°C to 80°C
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Place of Origin :
China
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Brand Name :
Popula
MOQ :
1 set
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Supply Ability :
100000 Sets/week
Inletdiameter :
200 - 1200 mm
Airflowcapacity :
1000 - 50000 CFM
Powersupply :
220V / 380V / 440V
Certification :
CE, UL, Rohs
Material :
Steel / Stainless Steel
Payment Terms :
T/T
Protectionclass :
IP54 / IP55
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Description

APC Series Window Type Exhaust Fan

* The APC series window exhaust fan is a compact, reliable ventilation solution constructed from antistatic, anti-aging ABS plastic, ensuring durability and safety for long-term use. ·

* Equipped with a high-quality ball-bearing motor, it delivers steady, high-volume airflow with low noise levels, making it suitable for residential and commercial spaces. ·

* The fan features a compact, square design with a flush panel, ideal for installation in windows or walls of sitting rooms, offices, shopping malls, and residential buildings. ·

* The series includes three models with varying power, airflow capacities, and installation dimensions to suit different space sizes and ventilation requirements. ·

* Operating on standard 220V power supplies, the fan provides reliable performance in humid environments such as bathrooms and kitchens.

APC Model Features:

Material Properties

The APC series is constructed with antistatic, anti-aging ABS plastic, offering resistance to environmental wear, corrosion, and moisture. The fan’s motor is designed for continuous operation with minimal noise.

Standard models operate on 220V single-phase power, suitable for use in normal and humid ambient temperatures. The fan is designed for use in ventilation systems where compact installation is required.

Benefits

· Low Noise Operation: The high-quality motor ensures quiet operation, making it suitable for use in occupied spaces.

· Durable Construction: The ABS plastic casing is easy to clean, corrosion-resistant, and long-lasting.

· Compact Design: The square form factor allows for easy installation in windows or walls, making it ideal for various residential and commercial applications.

Fan Structure

The fan features a flush panel design with a protective grille and a direct-coupled motor. The compact structure allows for simple installation in standard-sized openings.

Model Selection

The series includes three models: APC10-C1, APC15-C1, and APC20-C1, with power ranging from 18W to 24W and airflow capacities from 36m³/h to 216m³/h. Each model is sized to fit different installation openings (105mm to 185mm).

Model Airflow Direction Power(W) Voltage(V) Volume(m³/h) Noise dB(A) Product Dimensions(mm) Panel Size(mm) Opening Size(mm)
APC10-C1 Exhaust 18 220 36 40 150×150×95 150×150 Ø105
APC15-C1 Exhaust 19 220 144 42 200×200×115 200×200 Ø155
APC20-C1 Exhaust 24 220 216 45 250×250×120 250×250 Ø185

Q1: What are the main applications of the APC window exhaust fan?
A1: It is widely used for ventilation in sitting rooms, offices, shopping malls, residential buildings, bathrooms, and kitchens.
Q2: What is the key feature of the APC series?
A2: The fan features an antistatic, anti-aging ABS plastic casing and a high-quality ball-bearing motor for low-noise, high-volume airflow.
Q3: What power supply options are available?
A3: The fan operates on standard 220V single-phase power supplies, suitable for residential and commercial applications.
Q4: What installation opening sizes are compatible with the APC series?
A4: The series includes models for opening sizes of 105mm, 155mm, and 185mm.
Q5: Can the fan be used in humid environments?
A5: Yes, the fan is suitable for humid areas such as bathrooms and kitchens, helping to prevent moisture buildup.
Q6: Is the fan easy to install?
A6: Yes, the compact square design allows for straightforward installation in windows or walls.
Q7: What maintenance is required for the APC window exhaust fan?
A7: Regular cleaning of the grille and impeller, as well as periodic checks of the motor, are recommended to ensure optimal performance.
Q8: How do I choose the right model for my application?
A8: Consider the required airflow, installation opening size, and space type. The series offers three models with different capacities and dimensions.
Q9: What is the operating temperature range for the fan?
A9: The standard model is suitable for normal and humid ambient temperatures, typically between -10℃ and 40℃.
Q10: What certifications does the APC series have?
A10: The series meets international quality standards. CE-certified versions are available for European customers.
