Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Adjustable Blade Angle Industrial Axial Fan Direct Drive High Pressure High Flow
Specifications
Operatingtemperature :
-20°C to 80°C
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
MOQ :
1 set
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Certification :
CE, UL, Rohs
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Brand Name :
Popula
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Supply Ability :
100000 Sets/week
Airflowcapacity :
1000 - 50000 CFM
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Material :
Steel / Stainless Steel
Place of Origin :
China
Inletdiameter :
200 - 1200 mm
Payment Terms :
T/T
Description

POG High Quality Adjustable Pitch Axial Fan

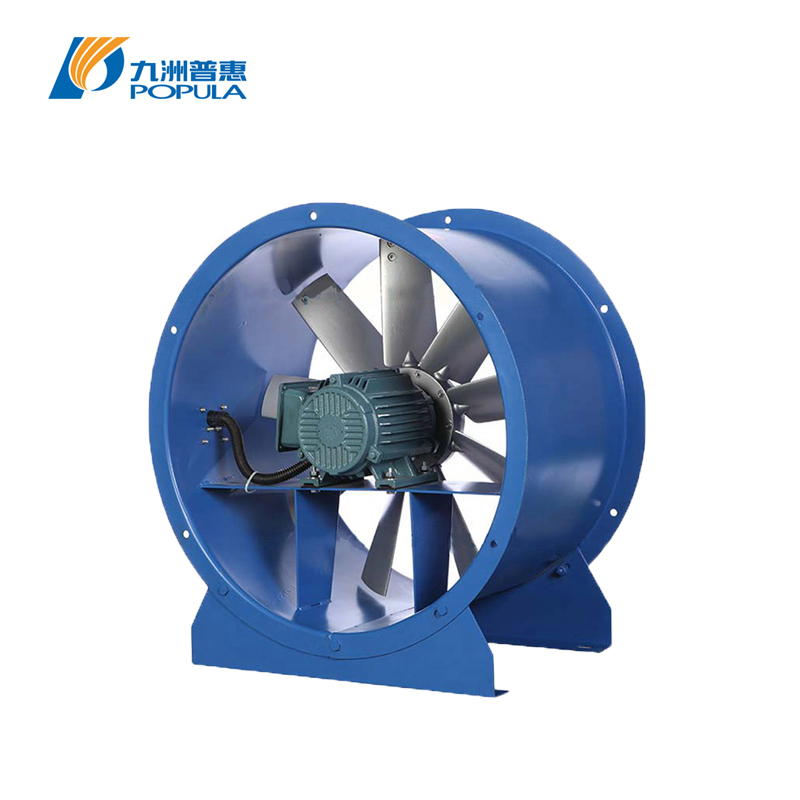

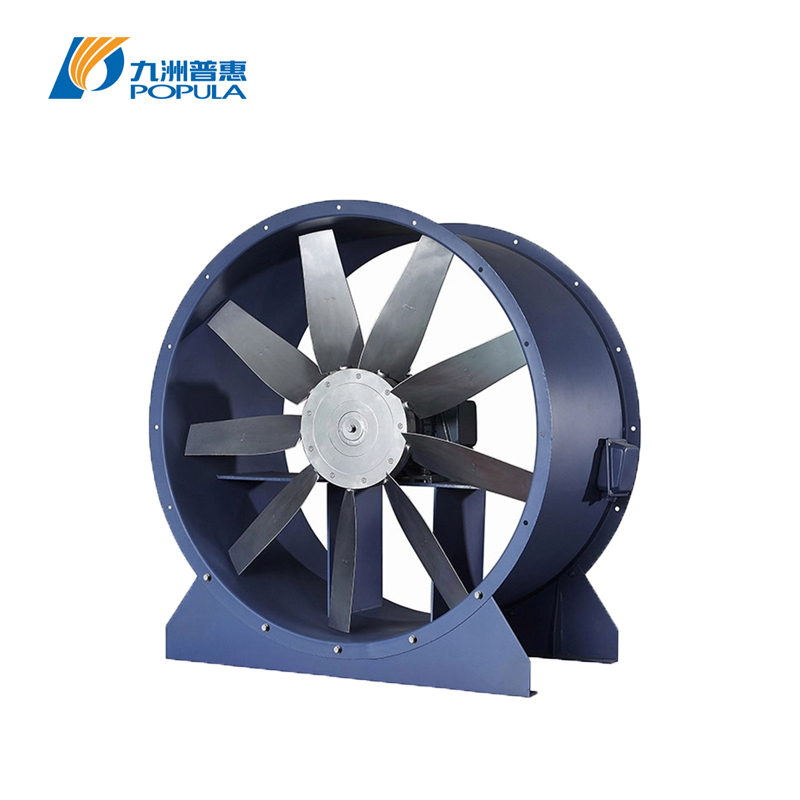

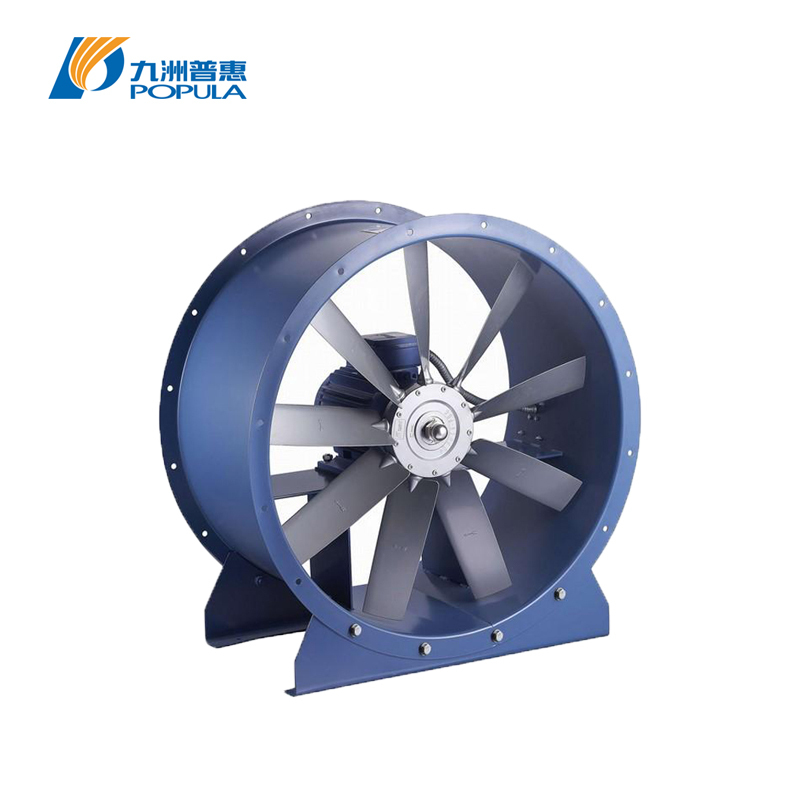

* Model No.3A to No12A of POG type axial fan is assembled with adjustable aluminum impeller, cylindrical steel casing, streamlined air inlet and foot-mounted direct-drive motor. ·

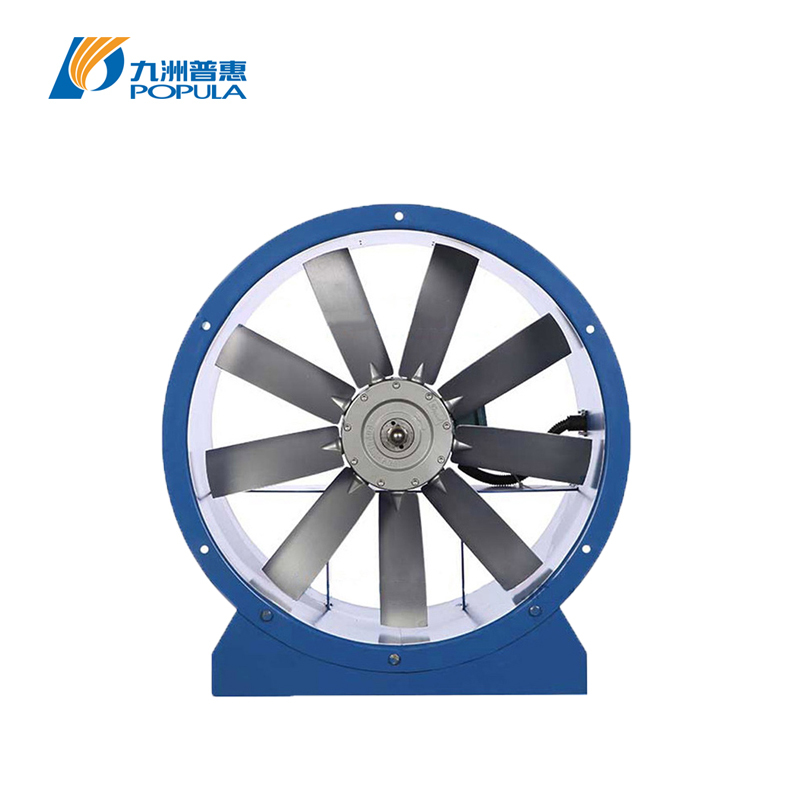

* The impeller consists of multiple high-strength airfoil blades and central hub; each blade can be manually adjusted to different installation angles for flexible airflow regulation. ·

* These industrial ventilation axial fans are fabricated from premium carbon steel plate; all impellers finish strict static & dynamic balance calibration, featuring outstanding aerodynamic efficiency, high static pressure and low operating noise. ·

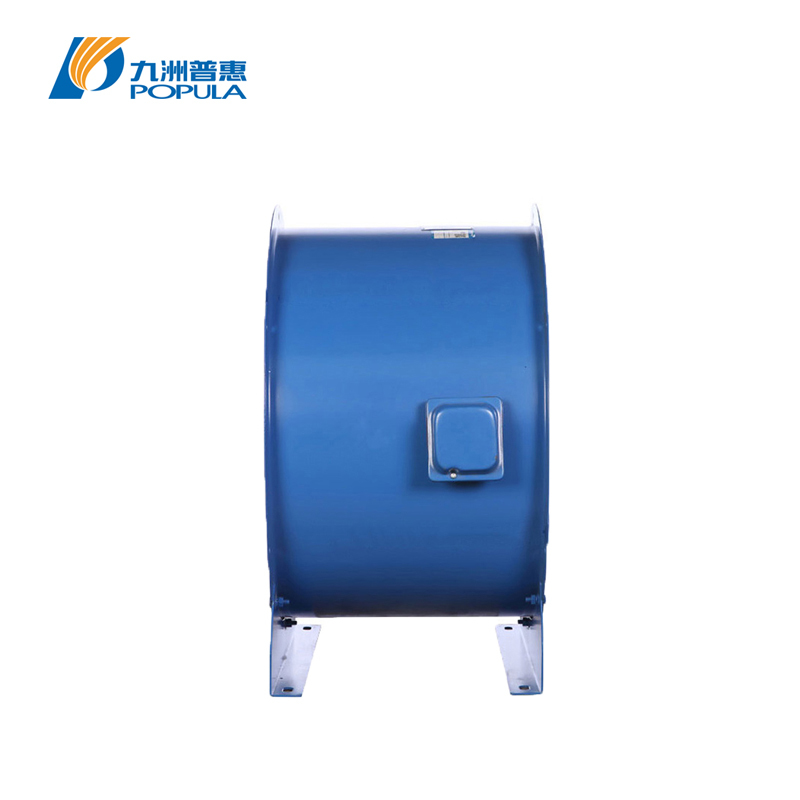

* The fan barrel casing adopts integrated fixed cylindrical welding structure with integrated base support, stable for wall-mounted or floor fixed installation. * Smooth circular inlet design guides airflow uniformly into impeller; the fan supports forward & reverse bidirectional ventilation to satisfy air supply or exhaust demand.

POG Model Features:

Material Properties

With adjustable blade pitch, large air volume, high pressure, energy saving and reversible airflow function, POG axial fans are ideal ventilation equipment for petroleum refining, alcohol processing, paint spraying & drying, rubber production, food and pharmaceutical workshops, factory warehouses and underground facilities.

Standard POG series is equipped with common three-phase asynchronous motor; flameproof YB-series explosion-proof motor can be optionally configured for flammable & volatile waste gas extraction on request. Anti-corrosion SUS304 stainless steel customized version is available for weak corrosive gas conveying.

Benefits

Standard POG fan is suitable for transporting non-corrosive and non-toxic clean air. Equipped with explosion-proof motor, B-POG explosion-proof fan can exhaust volatile flammable gas. The conveyed medium shall not contain sticky substance or coarse solid particles, medium dust impurity ≤150mg/m³ and medium temperature not higher than 50℃.

Fan Structure

Explosion-proof B - POG and anti-corrosion F - POG keep consistent airflow performance, specification parameters and installation outline dimension with standard carbon steel POG series, only motor or casing material is changed.

Model Selection

All POG models from 3A~12A support multi-speed matching and multi-angle blade adjustment; different rotating speed and blade pitch directly change fan flow & pressure to match on-site ventilation demand. Full technical parameters refer to the specification table of POG series.

Model Power(kW) Rotation(r/min) Adjustable Blade Angle Volume(m³/h) Pressure(Pa)
3A 0.12 2800 20° 2184~1811 114~157
3A 0.37 2800 35° 3866~3261 179~211
3A 0.55 2800 27° 4204~3392 224~285
3A 0.75 2800 30° 4998~4094 321~356
3.5A 0.09 1400 30° 2307~1818 77~107
3.5A 0.12 1400 35° 2499~2047 80~112
4A 1.1 2800 25° 6080~4960 285~398
4A 1.5 2800 35° 7600~6150 305~428
4A 0.18 1400 32° 3800~3075 77~107
4A 0.25 1400 35° 4675~3900 80~112
5A 1.5 2800 18° 9354~8023 242~321
5A 2.2 2800 25° 11032~9400 337~410
5A 0.37 1400 28° 6809~5495 103~129
5A 0.55 1400 30° 8096~6631 147~163
6A 3 2900 17° 15217~12125 283~537
6A 5.5 2900 21° 18898~15673 432~729
6A 0.75 1450 27° 10611~8338 140~193
6A 1.1 1450 32° 12294~9455 187~222
7A 2.2 1450 33° 22170~16939 239~295
7A 3 1450 38° 23973~18777 294~322
7A 0.55 960 29° 11821~8705 90~117
7A 0.75 960 33° 13477~11345 118~131
8A 4 1450 24° 24327~18162 295~404
8A 7.5 1450 37° 36427~29916 503~532
8A 1.1 960 24° 16409~13560 140~173
8A 1.5 960 29° 18535~15244 169~197
9A 5.5 1450 24° 39902~33582 296~422
9A 11 1450 33° 48488~38655 543~620
9A 2.2 960 27° 26795~18695 178~232
9A 3 960 33° 31170~24568 232~265
10A 7.5 1450 23° 40805~29579 312~528
10A 18.5 1450 35° 61360~47436 638~712
10A 4 960 32° 37375~30479 263~300
10A 5.5 960 35° 40540~33861 297~323
11.2A 7.5 960 33° 54117~45622 340~356
11.2A 11 960 38° 57421~50499 364~384
12A 15 960 35° 78463~63230 394~461
12A 18.5 960 40° 86505~75764 451~488



Q1: What are the main applications of the POG axial fan?
A1: It is widely used for ventilation in petroleum refining, paint spraying, drying, rubber production, food processing, pharmaceutical manufacturing, factories, workshops, warehouses, and basements.

Q2: What is the maximum allowable operating temperature?
A2: The fan is suitable for air temperatures not exceeding 50℃.

Q3: Can the fan handle dust particles?
A3: Yes, it can handle air streams with dust and hard particle concentrations not exceeding 150mg/m³.

Q4: What blade angle options are available?
A4: The series offers multiple adjustable blade angles (17° to 40°) to optimize airflow and pressure performance.

Q5: Is the fan suitable for corrosive gases?
A5: No, the standard model is designed for non-corrosive, non-flammable air. Specialized corrosion-resistant variants are available upon request.

Q6: What certifications does the POG series have?
A6: The series meets international quality standards. CE-certified versions are available for European customers.

Q7: What maintenance is required for the POG axial fan?
A7: Regular checks of the motor, blades, and bearings, as well as cleaning of the casing to remove dust buildup, are recommended.

Q8: How do I choose the right model for my application?
A8: Consider the required airflow, static pressure, installation space, and power supply. The series offers a range of models with different power, speed, and airflow combinations.

Q9: Can the fan be used for reversible ventilation?
A9: Yes, the fan features reversible ventilation capabilities, allowing for both forward and reverse airflow.

Q10: What is the noise level of the fan?
A10: Noise levels vary depending on the model and operating speed, with larger models typically producing higher noise levels.
