Carbon Steel Diagonal Flow Fan Inline Pipeline Ventilation Blower Explosion Proof
Carbon Steel Diagonal Flow Fan Inline Pipeline Ventilation Blower Explosion Proof
Specifications
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Place of Origin :
China
Operatingtemperature :
-20°C to 80°C
Payment Terms :
T/T
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Brand Name :
Popula
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Material :
Steel / Stainless Steel
Certification :
CE, UL, Rohs
Delivery Time :
2 two days for sampe order and 10 days for bulk order
MOQ :
1 set
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Supply Ability :
100000 Sets/week
Inletdiameter :
200 - 1200 mm
Description

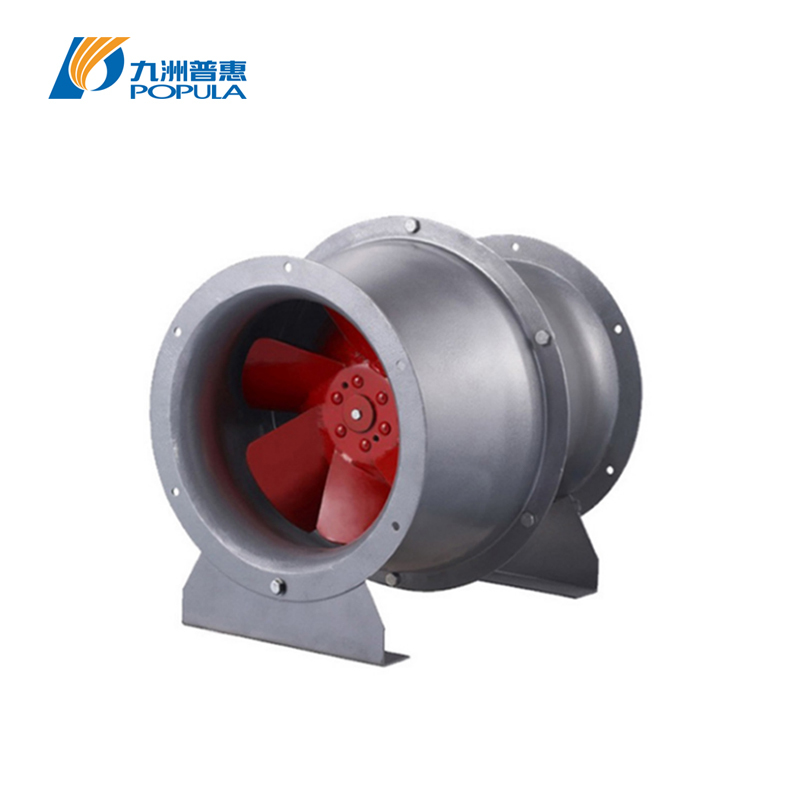

GXF High Quality Diagonal Flow Fan

* Model No.3.0F to No.8.0S of GXF type diagonal flow fan is composed of composite airfoil impeller, tapered cylindrical casing, streamlined inlet and foot-mounted direct-coupled motor. ·

* The impeller is assembled with multi-piece optimized oblique airfoil blades and wheel hub, combining the merits of axial fan and centrifugal fan. ·

* These pipeline diagonal flow ventilation fans are made of high-quality carbon steel sheet; all impellers go through strict static & dynamic balance correction, delivering superior aerodynamic efficiency, medium pressure and low running noise. ·

* The fan casing adopts integrated tapered fixed welding structure with integral base bracket, specially designed for direct pipeline inline installation without extra duct transition. ·

* Curved smooth inlet ensures uniform airflow into impeller to improve overall ventilation efficiency.

GXF Model Features:

Material Properties

With compact inline structure, moderate pressure, wide performance range and low noise, GXF diagonal flow fans are ideal equipment for pipeline air boosting, air supply and exhaust ventilation, widely used in industrial & mining enterprises, hotels, museums, stadiums, high-rise and conventional civil buildings.

Standard GXF series matches ordinary three-phase asynchronous motor; explosion-proof variant (B - GXF) with flameproof YB motor is optional for flammable gas pipeline ventilation; F - GXF stainless steel version is available for weakly corrosive flue gas delivery.

Benefits

Standard GXF diagonal fan is applicable to deliver clean non-corrosive ambient air. Equipped with explosion-proof motor, B - GXF fan can handle volatile combustible gas exhausting. The conveyed medium should be free of sticky substances and bulky grit, solid impurity & dust content ≤100mg/m³, operating medium temperature ranging from -20℃ to 50℃.

Fan Structure

B - GXF explosion-proof and F - GXF anti-corrosion fans retain identical airflow parameters, overall dimension and installation size as standard carbon steel GXF fan, only motor or shell material is modified accordingly.

Model Selection

GXF series includes S(low-speed) and F(high-speed) types with different rotation speeds to adjust flow and pressure.

Model Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa) Noise dB(A)
3.0F 0.25 1400 864~2559 179~125 148~77 ≤64
3.5S 0.18 910 908~2725 107~75 99~55 ≤60
3.5F 0.37 1400 1372~4116 243~170 234~120 ≤67
4.0S 0.25 910 1836~3642 151~89 142~49 ≤67
4.0F 0.75 1400 2825~5603 359~211 336~118 ≤78
4.5S 0.37 910 2383~4506 186~141 176~102 ≤68
4.5F 1.1 1400 3664~6932 441~332 417~242 ≤82
5.0S 0.75 910 3416~7257 226~143 212~79 ≤71
5.0F 2.2 1420 5338~11339 552~350 518~192 ≤84
6.0S 1.5 960 7332~13677 332~246 300~122 ≤79
6.0F 5.5 1450 11075~20660 758~561 685~277 ≤90
7.0S 3 960 9232~18309 440~333 413~225 ≤81
8.0S 7.5 960 19645~32524 637~476 564~276 ≤85

Q1: What are the main applications of the GXF diagonal flow fan?
A1: It is widely used for duct pressurization, air supply/exhaust, and ventilation in mining enterprises, hotels, museums, sports venues, and high-rise buildings.
Q2: What is the operating temperature range?
A2: The fan is suitable for air temperatures between -20℃ and 50℃.
Q3: Can the fan handle dust particles?
A3: Yes, it can handle air streams with dust and solid impurities ≤100mg/m³.
Q4: Why is it suitable for small-space installation?
A4: Its compact, cylindrical design allows for direct inline installation in ducts, making it ideal for confined spaces.
Q5: What are the key performance advantages?
A5: It combines the high airflow of axial fans and high static pressure of centrifugal fans, delivering efficient performance in duct systems.
Q6: Is the fan easy to install?
A6: Yes, the inline design allows for straightforward installation in existing ductwork.
Q7: What noise levels can be expected?
A7: Noise levels range from ≤60 dB(A) to ≤90 dB(A), depending on the model and operating speed.
Q8: How do I choose the right model for my duct system?
A8: Consider the required airflow, static pressure, duct size, and available installation space. The series offers a range of models with different capacities.
Q9: What maintenance is required for the GXF fan?
A9: Regular checks of the motor, impeller, and bearings, as well as cleaning of the casing to remove dust buildup, are recommended.
Q10: What certifications does the GXF series have?
A10: The series meets international quality standards. CE-certified versions are available for European customers.
