Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Fire Smoke Exhaust Fan High Volume Axial Fan For Industrial Buildings HVAC Duct Systems
Specifications
Operatingtemperature :
-20°C to 80°C
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Place of Origin :
China
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Certification :
CE, UL, Rohs
Brand Name :
Popula
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Supply Ability :
100000 Sets/week
Material :
Steel / Stainless Steel
Payment Terms :
T/T
Protectionclass :
IP54 / IP55
MOQ :
1 set
Inletdiameter :
200 - 1200 mm
Powersupply :
220V / 380V / 440V
Description

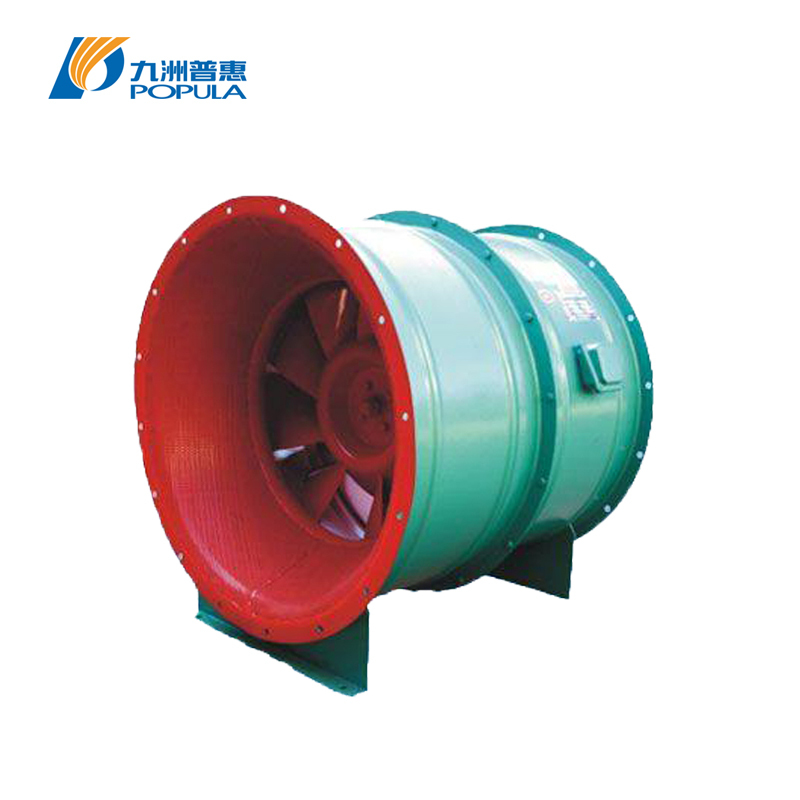

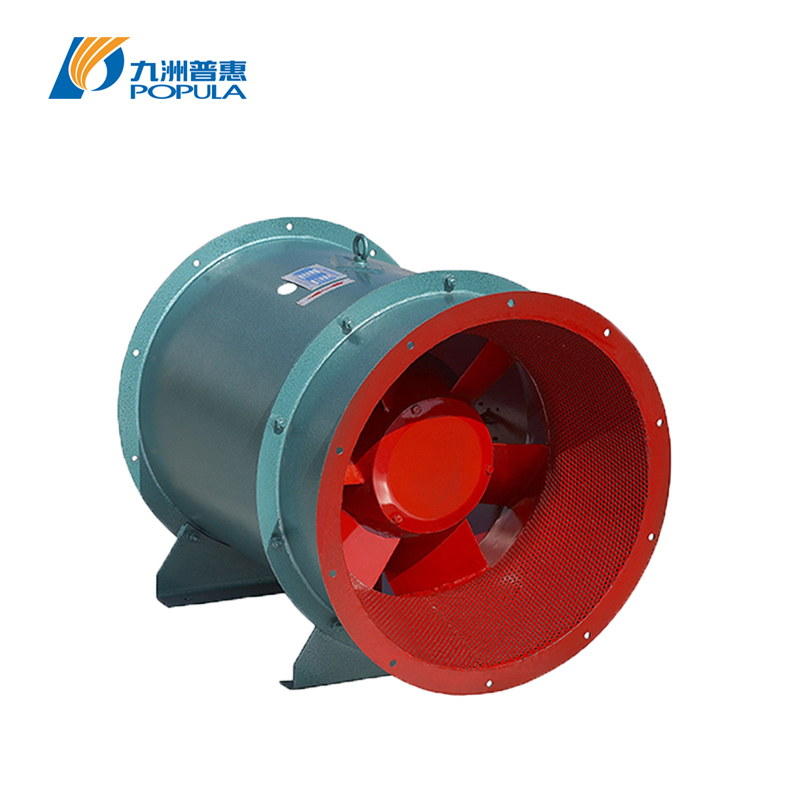

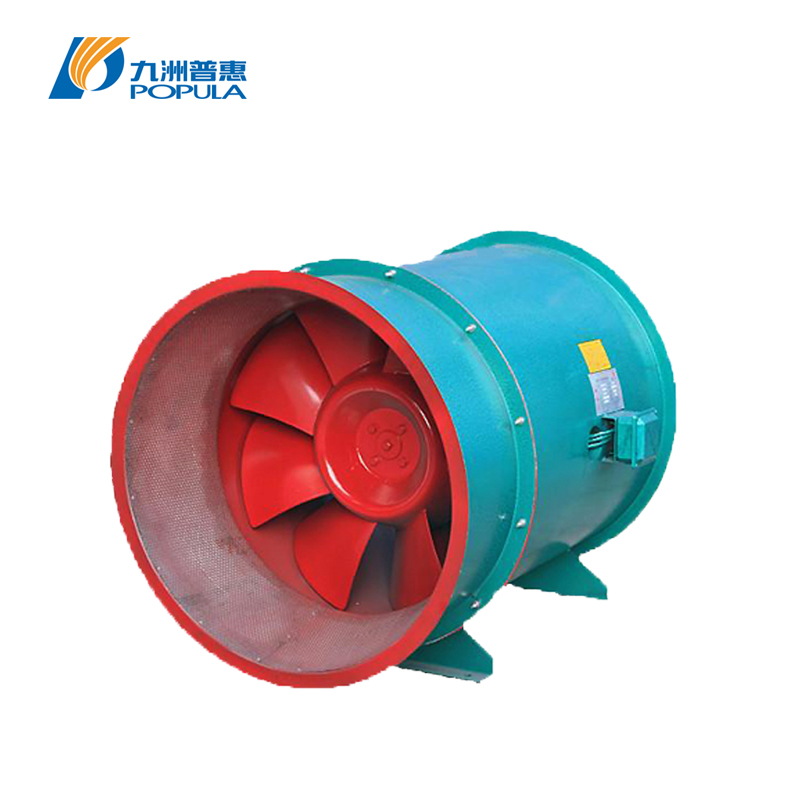

HL3-2A/HLF-6 High Efficiency Low Noise Mixed Flow Fan

* Model No.5~No.9 of HL3-2A/HLF-6 mixed flow fan consists of optimized mixed-flow airfoil impeller, cylindrical/rectangular casing, streamline air inlet and direct-coupled foot-mounted motor. ·

* The impeller is assembled with multi-piece swept mixed-flow blades and central hub, combining high-pressure advantage of centrifugal fan and large-volume feature of axial fan. ·

* These energy-saving mixed flow ventilators are fabricated from premium carbon steel plate; all impellers pass strict static & dynamic balance calibration, with outstanding aerodynamic efficiency, compact volume and lightweight body. ·

* Two structural types available: HL3-2A (cylindrical round flange casing for pipeline inline installation), HLF-6 (square cabinet casing with rectangular flange for duct matching). ·

* Optimized internal runner ensures smooth airflow into impeller to cut wind resistance and reduce operating noise.

HL3-2A/HLF-6 Model Features:

Material Properties

Featured by compact structure, small footprint, high static pressure, big air volume, energy efficiency and low noise, this mixed flow fan can replace low & medium pressure centrifugal fans below 2000Pa. Widely applied for ventilation, air exchange and dust removal in industrial plants, commercial & civil construction projects.

Standard configuration is 380V three-phase general asynchronous motor; explosion-proof variant (B-HL3/B - HLF) equipped with YB flameproof motor and SUS304 stainless steel customized version are optional for corrosive or flammable waste gas exhausting as required.

Benefits

Standard HL3-2A & HLF-6 fan is suitable for conveying clean, non-corrosive and non-explosive harmless air. With explosion-proof motor, the explosion-proof model can exhaust volatile combustible gas. The transported medium cannot contain sticky substance and coarse granular dust, dust impurity ≤150mg/m³ and medium operating temperature ≤80℃.

Fan Structure

Explosion-proof B-type and anti-corrosion F-type mixed flow fans share identical airflow parameters, performance data and installation dimension with standard carbon steel HL3-2A/HLF-6 fan, only driving motor or shell material is modified.

Model Selection

Each model from No.5~No.9 supports multiple speed options to adjust flow and total pressure for different pipeline resistance.

Model Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Total Pressure(Pa) Static Pressure(Pa)
4.0A 0.4/0.55 380 2900 3303-3994 1302-1139 1057-894
4.5A 0.75/1.1 380 2900 4297-5292 1691-1470 1371-1143
5.0A 1.5/2.2 380 2900 5338-6693 2137-1807 1719-1409
5.6A 3/4 380 2900 7294-9108 2783-2375 2243-1831
6.0A 4/5.5 380 2900 8595-10794 3205-2740 2592-2126
6.5A 5.5/7.5 380 2900 10638-13223 3825-3213 3139-2517
7.0A 7.5/11 380 1450 12590-15793 2179-1831 1800-1422
7.5A 11/15 380 1450 15203-19004 2625-2195 2164-1736
8.0A 15/18.5 380 1450 18045-22557 3093-2588 2546-2054
8.5A 18.5/22 380 1450 21130-26413 3593-3010 2953-2392
9.0A 22/30 380 1450 24458-30572 4126-3457 3385-2752
10A 30/37 380 1450 31609-39511 4639-3868 3853-3097
11A 37/45 380 960 43271-53989 2833-2344 2329-1831
11.2A 45/55 380 960 48834-61042 3146-2605 2579-2035
12A 55/75 380 960 54175-67719 3401-2800 2749-2170
12.5A 110/160 380 960 83329-103908 3861-3163 3075-2461

Q1: What are the core application scenarios of this mixed flow fan?
A1: It is widely used for air supply, exhaust and dust removal in industrial factories and civil buildings such as malls, office buildings and underground garages.
Q2: What installation forms does the fan support?
A2: It can adopt top-mounted centrifugal installation and side-mounted centrifugal installation to adapt to different on-site layout requirements.
Q3: What's the working voltage of all models?
A3: All standard models adopt 380V three-phase industrial voltage to match industrial power supply standards.
Q4: What's the advantage compared with traditional centrifugal fans?
A4: It has smaller size, lighter weight, higher efficiency, lower noise and obvious energy-saving effect, with more convenient installation.
Q5: Can it be used for long-distance duct ventilation?
A5: Yes, it has high static pressure performance, which can overcome duct resistance to realize long-distance air delivery.
Q6: How to choose between HL3-2A and HLF-6 types?
A6: HL3-2A is barrel-shaped for duct inline installation; HLF-6 is box-type for wall-mounted or cabinet fixed installation, you can choose according to installation position.
Q7: What's the speed classification of the series?
A7: Small models (4.0A-6.5A) run at 2900r/min for high-pressure small-space scenarios; large models (7.0A-12.5A) run at 1450/960r/min for large-flow low-noise demands.
Q8: Is customized explosion-proof version available?
A8: Yes, explosion-proof motors and explosion-proof structural optimization can be customized for flammable and explosive workshops.
Q9: What maintenance work is needed routinely?
A9: Regularly clean dust on the impeller and casing, check bearing lubrication and motor operating temperature to keep stable performance.
Q10: What international certifications can be provided?
A10: The standard version can get CE certification for European markets, and relevant test reports can be provided on demand.
