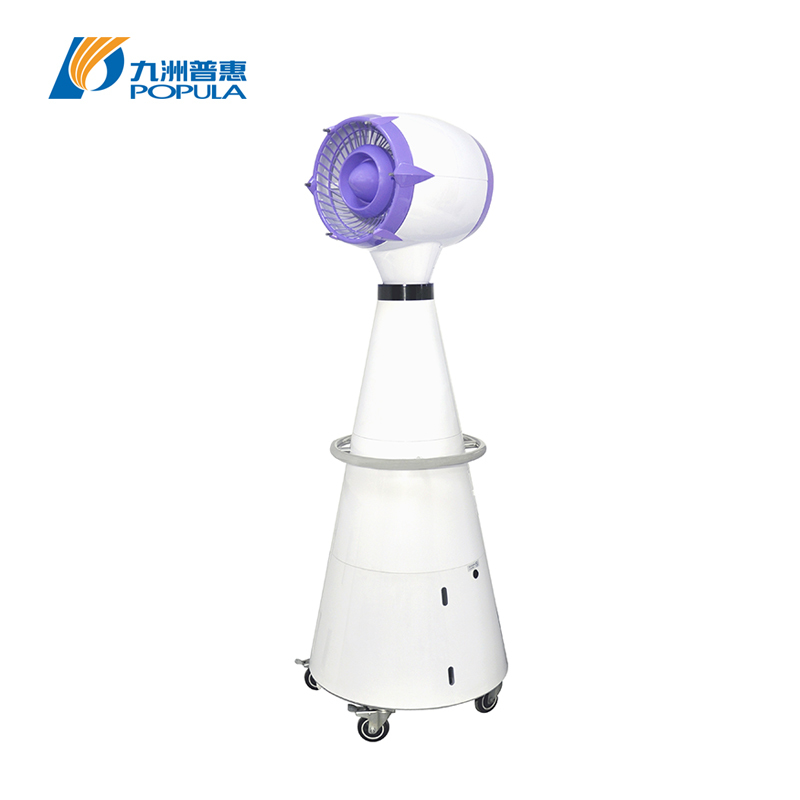

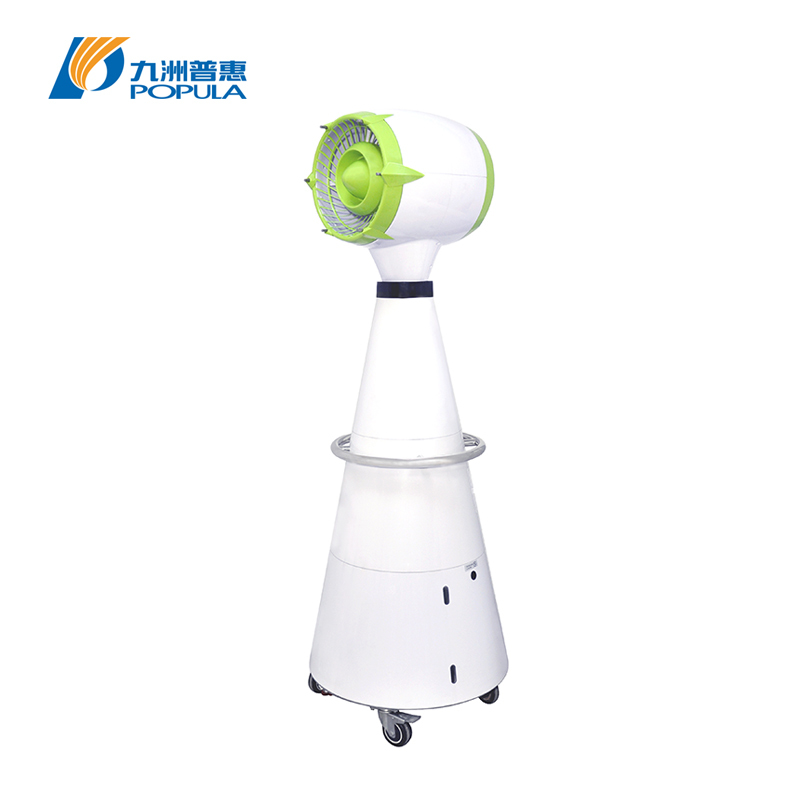

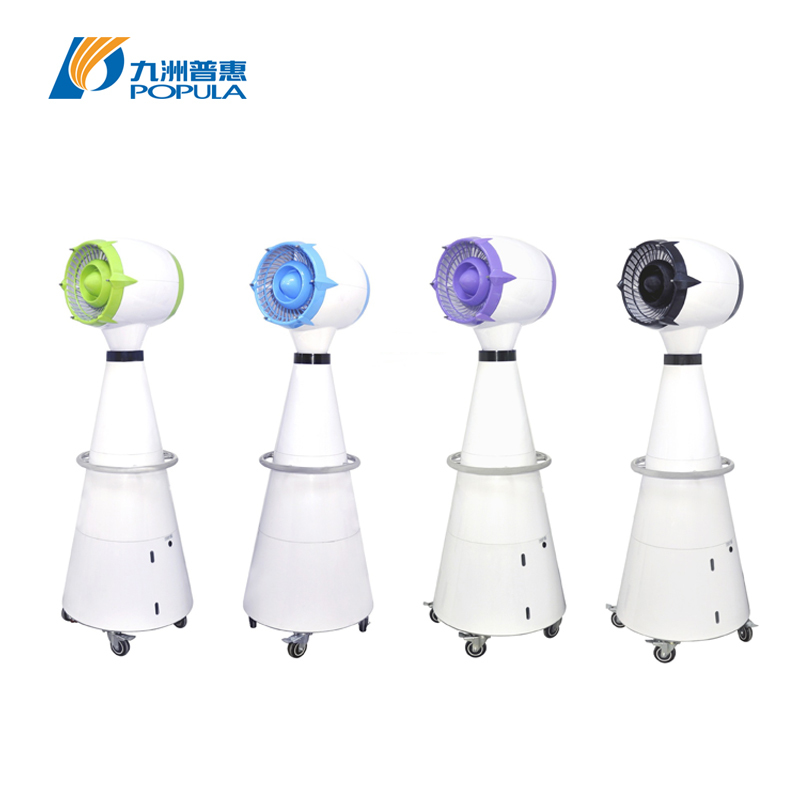

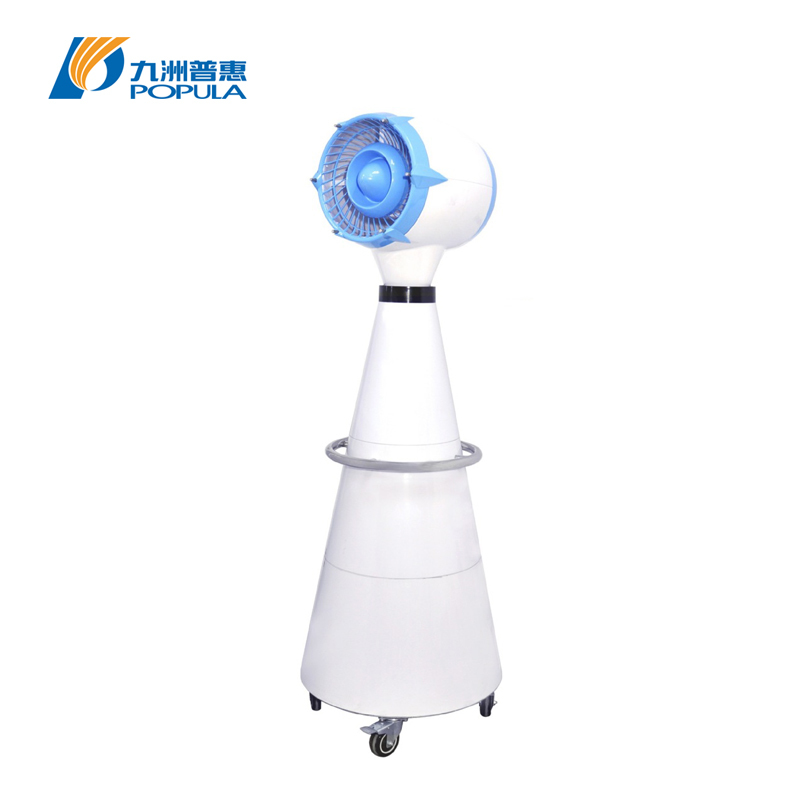

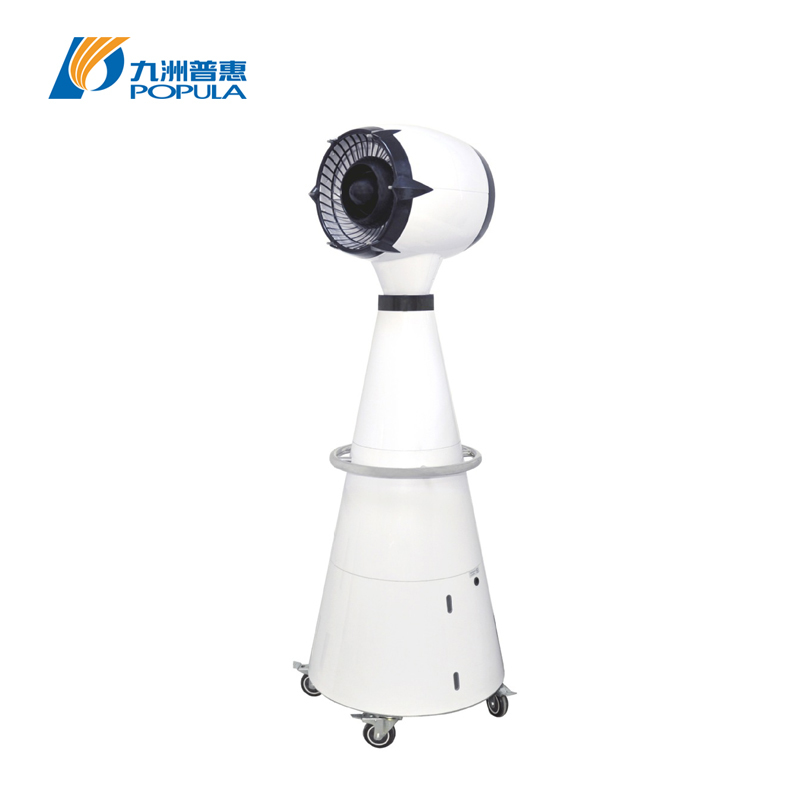

A-4PT Misting Cooling Fan

A-4PT mobile pressure-type mist cooling machine adopts pressure atomization principle, equipped with DC variable speed motor and large-capacity water tank, supports water tank self-contained water supply or external continuous water intake. It produces ultra-fine water mist for outdoor & large-space cooling, dust suppression and humidification, with CE & IPX5 waterproof certification.

Core Product Features

Upgraded DC Motor & Stepless PMM Speed Regulation High efficiency & energy saving; the mist spraying distance can be adjusted freely.

Pressure Atomization Principle Finer mist particles, faster cooling effect; mist particle diameter ranges 10~30μm.

Water Inlet Filter Assembly Prevents foreign matter from entering water pump; replaceable composite filter cartridge.

Novel Mobile Trolley Design Push-ring detachable; machine surface can paste custom advertising stickers.

Layered Main Body, Water & Electricity Separation Eliminate potential electric safety hazards.

Large Built-In Water Tank 8L capacity supports continuous operation up to 8 hours; reserved external water inlet for long-time non-stop running.

Low-pressure Anti-clogging Nozzle Built-in stainless steel filter screen, easy to disassemble, clean and maintain.

Main Core Components

Filter Tube Nozzle Brass / stainless steel body; built-in stainless steel filter screen & multi-section detachable structure for easy washing and anti-blocking.

DC Submersible Water Pump High temperature & corrosion resistant eco-friendly housing; built-in water shortage protection to avoid dry burning; high flow rate, stable water circulation.

EC DC Self-Priming Diaphragm Pump Independent patented structure, stable pressure output; low power consumption, low noise; self-priming function automatically exhausts air inside pipelines; easy installation & maintenance, no frequent hydraulic oil replacement.

Front Composite Filter Cartridge 3-in-1 composite structure with imported PP cotton + activated carbon; impurity & bacteria removal rate ≥99%; reusable after cleaning within half a year.

Working Principle

Filtered clean water is pressurized by pump and delivered to special micro nozzles to generate micro-fine mist. The built-in fan blows mist outward and diffuses into target area to achieve evaporative cooling.

· Air supply distance: 2 ~ 13 m

· Oscillating angle: 120°

· Cooling range: 3 ~ 8℃ (Tested under ground temperature ≥50℃)

Package Information

· Main unit package size(L×W×H): 152×54.5×56 cm

· Main unit: Net weight 31.5 Kg / Gross weight 39.5 Kg

· Water tank package size(L×W×H): 72×72×53 cm

· Water tank: Net weight 19.5 Kg / Gross weight 22.5 Kg

· Loading quantity: 20GP = 36 sets; 40HQ = 86 sets; 2 pcs per carton

Typical Application Scenarios

Outdoor catering, open-air events, exhibition venues, factory workshops, livestock farms, garden landscapes, parking lots, construction site dust suppression, amusement parks.

Usage Reminders

· IPX5 waterproof grade, suitable for semi-outdoor environment; avoid direct heavy rain long-term soaking.

· Use clean tap water; regularly clean filter cartridge and nozzles to prevent scaling and blockage.

· Support two water supply modes: built-in water tank & external continuous water supply pipe.
