Explosion Proof High Pressure Centrifugal Fan Material Handling Blower 6.3A 2930r/Min
Explosion Proof High Pressure Centrifugal Fan Material Handling Blower 6.3A 2930r/Min
Specifications
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Operatingtemperature :
-20°C to 80°C
Airflowcapacity :
1000 - 50000 CFM
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
MOQ :
1 set
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Material :
Steel / Stainless Steel
Brand Name :
Popula
Payment Terms :
T/T
Protectionclass :
IP54 / IP55
Certification :
CE, UL, Rohs
Powersupply :
220V / 380V / 440V
Place of Origin :
China
Supply Ability :
100000 Sets/week
Inletdiameter :
200 - 1200 mm
Description

9-14 High Pressure Centrifugal Fan

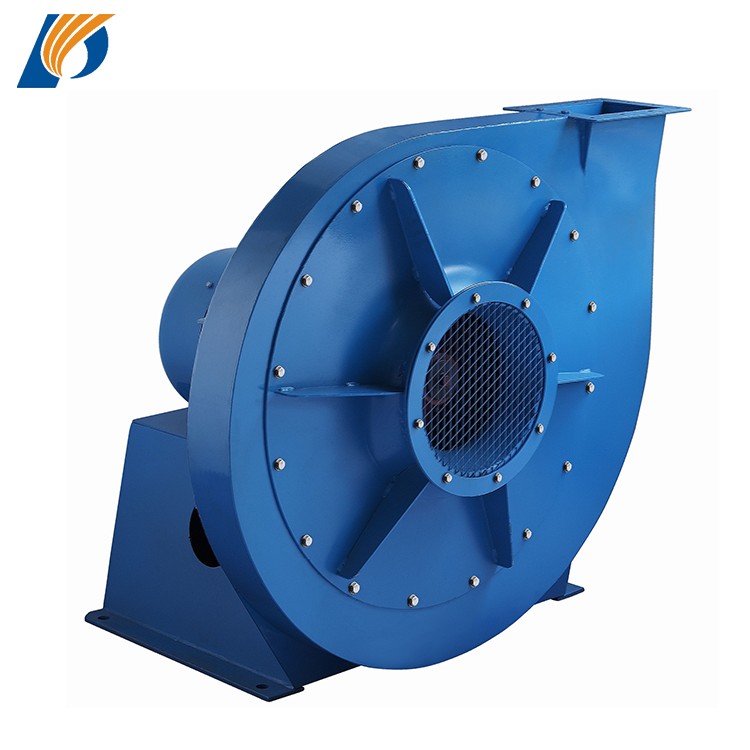

* Model 6.3A of 9-14 high pressure centrifugal fan is Type-A direct driven unit, composed of high-pressure backward curved impeller, thickened carbon steel scroll housing, circular streamlined air inlet and foot-mounted direct-coupled motor. ·

* The impeller is equipped with multiple heavy-duty backward curved high-pressure blades and wheel disc; all impellers pass strict static & dynamic balance inspection to realize ultra-high pressure output and stable running performance. ·

* The fan casing adopts integrated thick steel welding construction to withstand high wind load; three optional outlet installation angles (0°/90°/180°) for flexible on-site pipeline layout matching. ·

* Optimized internal flow channel effectively reduces airflow loss and improves overall pressure efficiency for forced air supply and granular material pneumatic conveying.

9-14 Model Features:

Material Properties

With ultra-high static pressure and sturdy compact structure, 9-14 series fans are specially developed for forced ventilation of smelting furnaces and pneumatic raw material transportation in various processing industries.

Standard model is equipped with Y-series three-phase asynchronous motor (11kW / 15kW optional); explosion-proof B-9-14 variant fitted with YB flameproof motor is available on request for flammable medium conveying working conditions.

Benefits

Standard 9-14 fan is applicable to deliver non-corrosive, non-self-ignition harmless clean air; explosion-proof version can transport slightly combustible granular gas. Conveyed medium must be free of sticky substance, dust and hard particulate impurity ≤150mg/m³, medium operating temperature ≤80℃.

Fan Structure

Explosion-proof B-9-14 keeps identical airflow parameters, overall dimension and foundation mounting size with standard carbon steel 9-14 fan, only the driving motor is replaced to explosion-proof specification.

Model Selection

For 6.3A model running at 2930r/min, one configuration comes with 11kW Y160M1-2 motor, delivering air volume between 2167 and 3667 cubic meters per hour under total pressure ranging from 7533Pa to 8213Pa; the other option adopts 15kW Y160M2-2 motor, with airflow of 3734~5500m³/h and total pressure from 4767Pa up to 7467Pa.

Model Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa)
6.3A 11 2930 2167~3667 8213~7533
6.3A 15 2930 3734~5500 7467~4767

Q1: What are the main applications of the 9-14 fan?
A1: It is widely used for high-pressure forced ventilation in smelting furnaces, industrial processes, and material conveying.
Q2: What gas conditions is the fan suitable for?
A2: It handles non-corrosive, non-spontaneously combustible gases with temperatures ≤80°C and dust/solid impurities ≤150mg/m³.
Q3: What power options are available for the 6.3A model?
A3: The 6.3A model is available with 11kW and 15kW power configurations.
Q4: What is the operating speed of the fan?
A4: The fan operates at 2930 r/min, delivering high airflow and pressure.
Q5: Can the fan be used for material conveying?
A5: Yes, the fan is suitable for both gas ventilation and material conveying applications.
Q6: Is the fan built for continuous operation?
A6: Yes, the robust design is suitable for continuous use in industrial environments.
Q7: How do I choose between the 11kW and 15kW models?
A7: Consider the required airflow and pressure. The 15kW model delivers higher airflow at slightly lower pressures compared to the 11kW model.
Q8: What maintenance is required for the 9-14 fan?
A8: Regular checks of the motor, impeller, and bearings, as well as cleaning of the casing to remove dust buildup, are recommended.
Q9: What certifications does the 9-14 series have?
A9: The series meets international quality standards. CE-certified versions are available for European customers.
Q10: Is the fan suitable for use in high-temperature environments?
A10: The fan is designed for gas temperatures up to 80°C.
