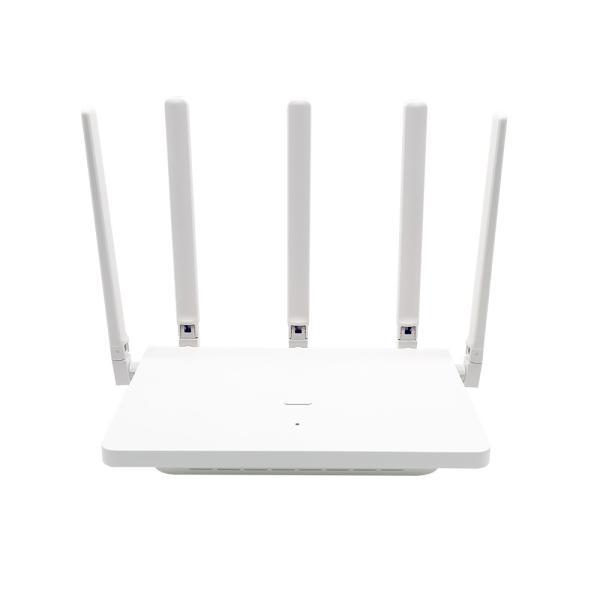

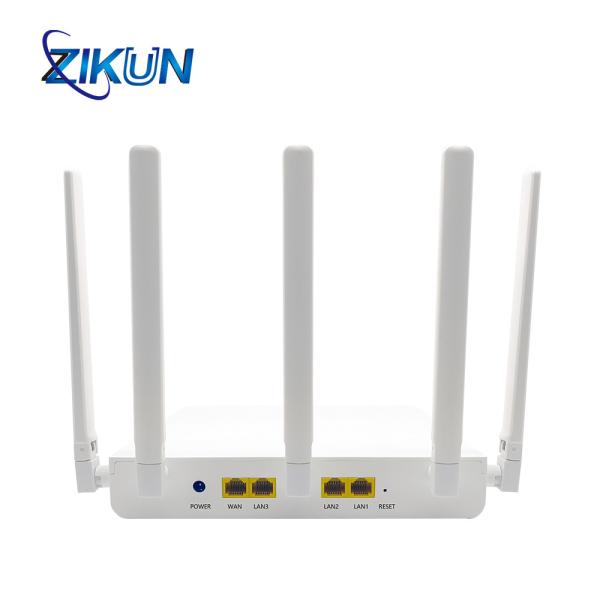

AX3000 Wifi 6 Router High Speed Wireless 2.4G 5G Dual Band Wifi Router Support Easy Mesh
AX3000 Wifi 6 Router High Speed Wireless 2.4G 5G Dual Band Wifi Router Support Easy Mesh
AX3000 Wifi 6 Router High Speed Wireless 2.4G 5G Dual Band Wifi Router Support Easy Mesh
AX3000 Wifi 6 Router High Speed Wireless 2.4G 5G Dual Band Wifi Router Support Easy Mesh
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-R560E
MOQ :
1-200
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-7 work days
Flash :
128MB
Memory :
256MB
Antenna :
5*External Antennas
Size :
21.5*16.3*5cm
Port :
1GE WAN+3GE LAN
Description

AX3000 wifi 6 router High-speed Wireless 2.4G 5G dual band wifi router Support Easy Mesh

Main Features:
Adopt RTL8198D solution, RTL8192XBR+RTL8832CR, main frequency up to 1.3GHZ;
Independent WIFI6 chip RTL8198D, speed up to3000Mbps;
Using high-speed 256MB DDR3, with 128MB SPI NAND Flash;
1WAN+3LAN 1000M adaptive network port, support automatic flip;
Support "one key" MESH networking;
External high-gain WIFI antenna, wireless signal 360℃ full cover;

AX3000 Wifi 6 Router High Speed Wireless 2.4G 5G Dual Band Wifi Router Support Easy Mesh

Hardware Parameters

CPU

CPU:RTL8198D

WiFi Chip: RTL8192XBR+RTL8832CR
FLASH Size 256MB
DDR Size 128MB
2.4G WiFi 2*2(Support IEEE 802.11b/g/n/ax ,Rate Up to 576Mbps)
5G WiFi 2*2(Support IEEE 802. 11a/ac/ax ,Rate Up to 2400Mbps)

Antenna

 WiFi 2.4G:2 x 5dBi External Antennas
WiFi 5G:3 x 5dBi External Antennas

Interfaces

Ethernet

 3x 10/ 100/ 1000M LAN interface(Auto MDI/MDIX)
1x 10/ 100/ 1000M WAN interface(Auto MDI/MDIX)
LEDs POWER ,Status
Button 1x Reset Button
WPS Button 1x WPS button(Mesh Button)
DC Input DC input 12V

Software Function

WAN Function 1x GE Ethernet WAN
Support Router mode and Bridge Mode
Support Mesh Client and Repeater Mode
WAN connection type : DHCP, PPPoE,Static IP

Firewall

 Basic Firewall Functions and ALG
DMZ ,Port Mapping, Port Forwarding ,Virtual Server
DDNS
URL Filter
Support QoS
Support WiFi AP/Repeater Mode

Remote

Management

Function

 On-line Device Management
Uploading, storing, and presenting equipment operating parameters, network quality diagnostic data, and logs
Provide a web management backend for device management and policy Routing configuration
FOTA
Mesh Function Support Easy Mesh
