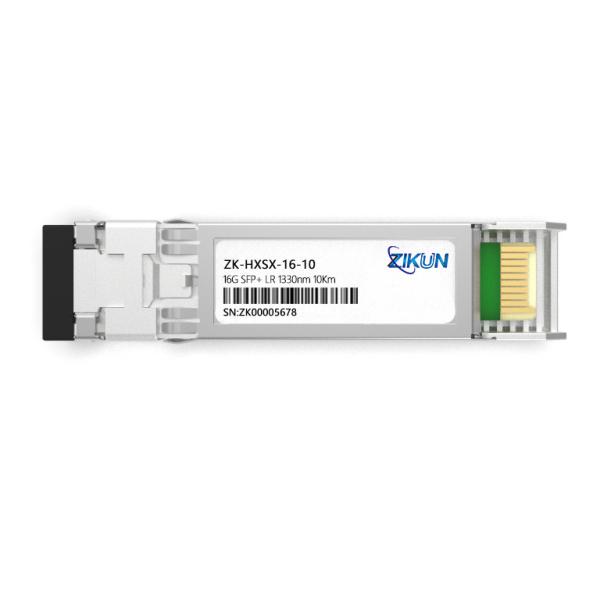

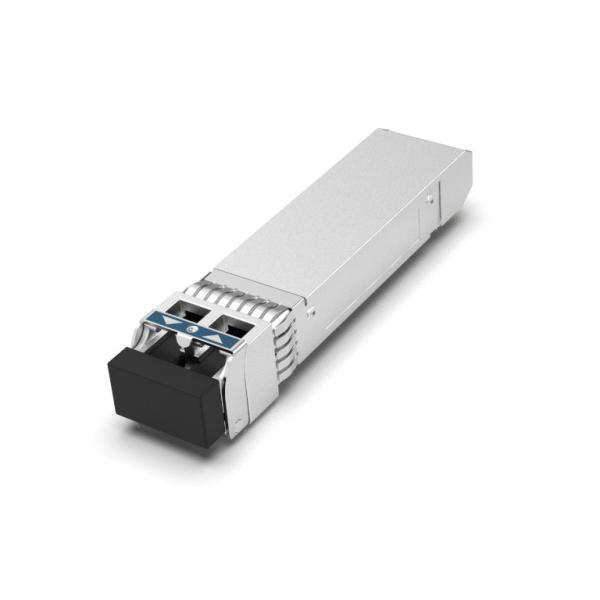

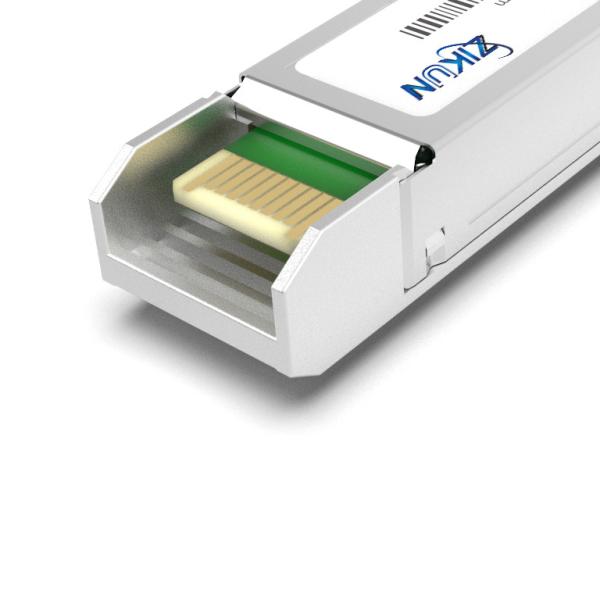

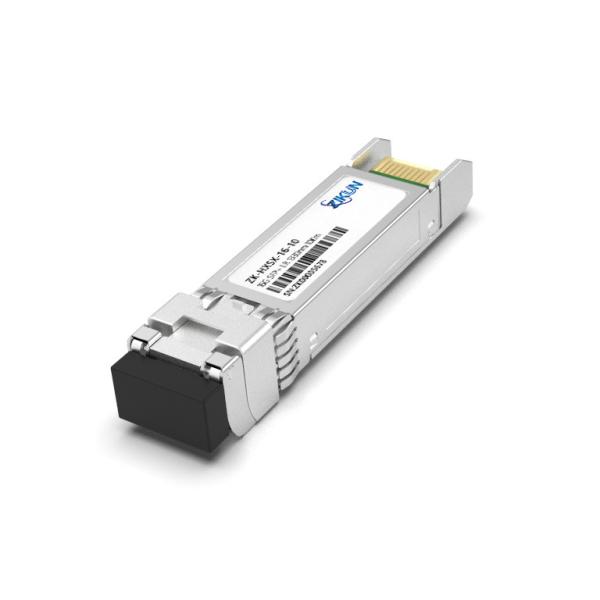

14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
14.025gb/s SFP Module 16G LR 1330nm 10Km SFP+ Optical Transceiver
Specifications
Brand Name :
ZIKUN
Model Number :
ZK-HXSX-16-10
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
Fiber Optic Transceivers
Data Rate (Gb/s) :
14.025
Wavelength (nm) :
1310
Reach(km） :
10
LD :
DFB
Tx Power (dBm) :
-5~2
Rx Sens (dBm) :
<-12
Description

SFP Module 16G SFP+ LR 1330nm 10Km Optical Fiber Optic Transceiver

Product Features

⚫ Up to 14.025Gb/s data links

⚫ Hot-pluggable SFP+ footprint

⚫ Duplex LC type pluggable optical interface

⚫ Uncooled 1310nm DFB Laser

⚫ Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s

⚫ Up to 10 km on 9/125um SMF

⚫ All-metal housing for superior EMI performance

⚫ Meet ESD requirements ,resist 8KV direct contact voltage

⚫ RoHS- 10 compliant and lead-free

⚫ Support Digital Monitoring interface

⚫ Single +3.3V power supply

⚫ Compliant with SFF+MSA and SFF-8472

⚫ Case operating temperature : 0°C to +70°C/ -40°C to +85°C

Ordering Information

Product

Number

Data

Rate

(Gb/s)

Wavelength

(nm)

Reach (km)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperature

(C)

ZK-HXSX-16-10C

14.025

1310

10

DFB

-5~2

PIN

<-12

0~70

ZK-HXSX-16-10I

14.025

1310

10

DFB

-5~2

PIN

<-12

-40~85
