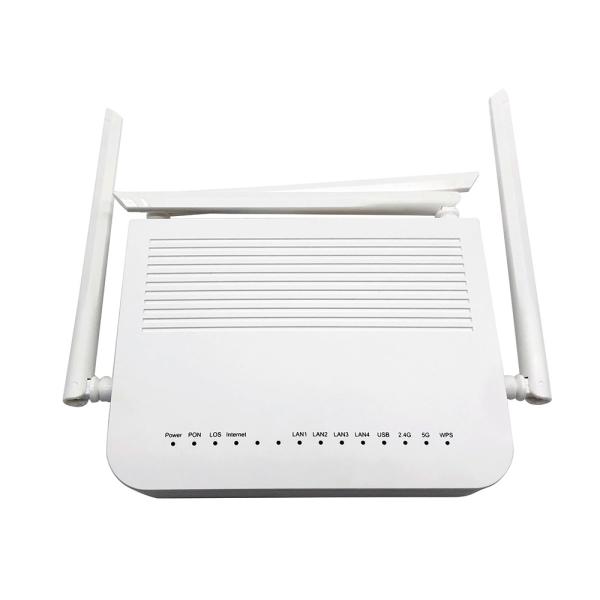

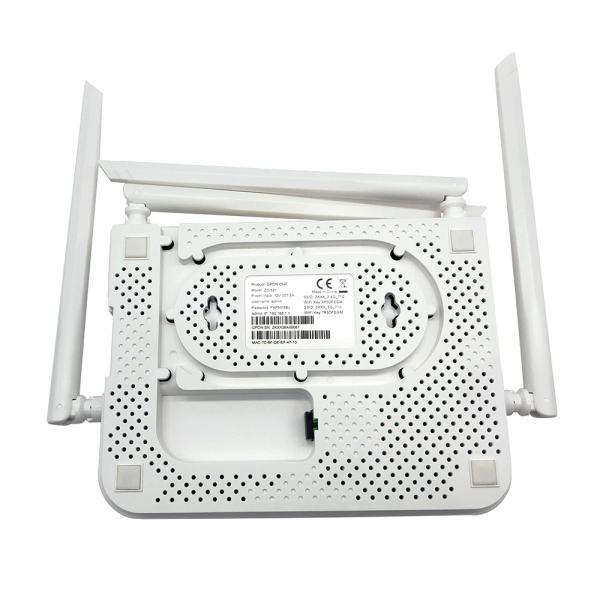

FTTH ONT XPON ONU Dual Band 1USB WIFI 4GE ZC-521 With 4 Extenal Antenna
FTTH ONT XPON ONU Dual Band 1USB WIFI 4GE ZC-521 With 4 Extenal Antenna
FTTH ONT XPON ONU Dual Band 1USB WIFI 4GE ZC-521 With 4 Extenal Antenna
FTTH ONT XPON ONU Dual Band 1USB WIFI 4GE ZC-521 With 4 Extenal Antenna
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-521(4*extenal antenna)
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
Type :
XPON ONU
User Network Interface(UNI) :
4GE+2.4G&5G WIFI+1USB
Optical connector :
SC/APC
Use :
FTTH
Antenna :
4*Extenal Antenna
Receiving Sensitivity :
-28.5dBm
Description

ZC-521 XPON ONT 4GE+2.4G&5G WIFI+1USB

ZC-521 offers 4* GE, 1USB and 2*2 11n+2*2 11ac wifi. It can provide serivces for video and highspeed internet access.

ZC-521 is a dual-mode(XPON) optical network terminal (ONT) supports automatic switching between GPON and EPON modes, is designed for the fiber to the home (FTTH) scenarios.

ZC-521 complies with the ITU-T G.984 standard and IEEE802.3ah Standard, It has 10Mbps/100Mbps/1000Mbps adaptive GE interfaces, complying with IEEE802.3-2005 standards.

Main Features

• Ideal solution for FTTH solution xPON

• 4 * gigabit LAN ports

• 1167Mbps wireless speed

• 2.4G & 5G dualband Wi-Fi

• High compatible to OLTs

• 4* 5 dBi high gain antennas

• OMCI /OAM / TR069 remote management

PON interface(NNI):1 x PON interface
Optical port

GPON/EPON mode adaptive

ITU-T G.984 GPON standards,Support for backward compatibility with IEEE 802.3ah EPON

Single mode fiber
Optical connector SC/APC
Receiving Sensitivity -28.5dBm
Overload optical power -7dBm
Transmitting Optical Power 1.5~3.5dBm
Transmit rate

GPON:2.488Gbps downstream; 1.244Gbps upstream

EPON:1.25Gbps downstream；1.25Gbps upstream
Wavelength Receiving(DOWN):1490nm；Transmitting(UP):1310nm
Authentication consistent with the SN ,Password,LOID or LOID+Password authentication defined in G.984.3;MAC authentication
User Network Interface(UNI):4GE+2.4G&5G WIFI+1USB

Ethernet Port

 • Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, VLAN transparent transmission
• Q-in-Q
• MAC address learning
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

WLAN

 • IEEE 802.11 b/g/n (2.4G)
• IEEE 802.11 a/n/ac (5G)
• 2 × 2 MIMO (2.4G&5G)
• Antenna gain: 5 dBi,4*extenal antenna
• 2.4G&5G concurrent
• Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G)
USB port • USB2.0,USB backup
Product Function

GPON

 • ITU-T G.984
• ITU-T G.988
• Flexible mapping between GEM port and T-CON
• Priority level queuing and scheduling of the upstream traffic
• AES-128 encryption
• FEC
• Upstream traffic classification based on VLAN ID and 802.1p
