AX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUN
AX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUN
AX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUN
AX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUN
Specifications
Brand Name :
ZIKUN
Model Number :
ZC-530NX6
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
5-15 work days
GPON interface（NNI） :
XG-PON interface
Optical connector :
SC/UPC
User Network Interface（UNI） :
4GE+1POTS(option)+AX3000 WiFi 6+1USB2.0+1USB3.0
WLAN :
2 × 2 MIMO (2.4G)，2 × 2 MU-MIMO (5G)
Antenna gain :
5 dBi，five external antenna
Transmission technology :
OFDMA,MU-MIMO,1024QAM,180MHz frequency bandwidth
USB port :
USB2.0/USB3.0
Dimensions ( W x Dx H) :
20CM*12.5CM*3.8CM
Weight :
About 400g
Description

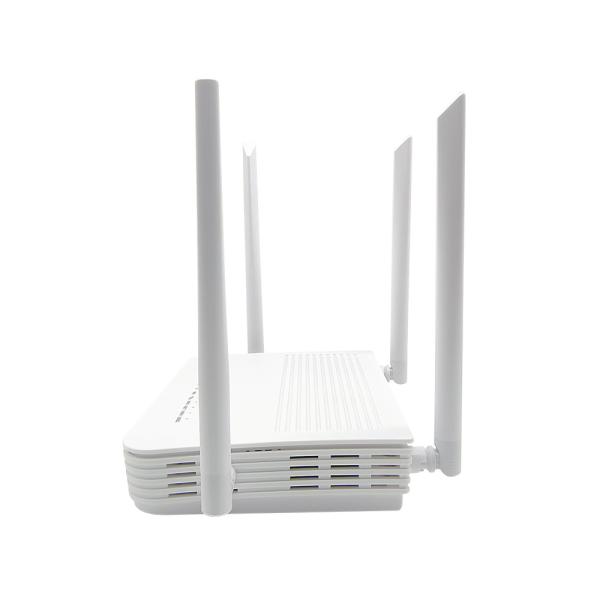

ZIKUN GPON ONU AX3000 WiFi6 ONT ZC-530NX6 4GE XG-PON OUN

ZC-530NX6 XG-PON ONU with 4GE+1POTS(option)+AX3000 WiFi port terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through ZIKUN OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah,ITU-T G.984.x and technical requirement of GPON Equipment from China Telecom.


AX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUNAX3000 GPON ONT ONU WiFi6 4GE Optical Network Terminal XG PON OUN

Hardware Parameters

Chipset: ZX279131
Size:
18.7CM*12.6CM*4CM(withoutexternalantennaandpads)
FLASH 256MB
power adapter DC 12V/1.5A
DDR 512MB
case material ABS

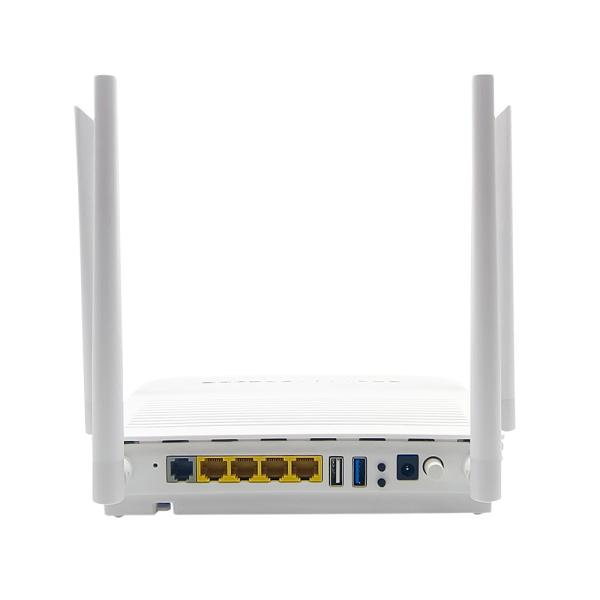

Port

1*XGPON

1*reset

4*GE

1*WPS

1*USB2.0+1*USB3.0

1*Power on/off

1*DC

1*WLAN

1*VoIP Port(can choose )
chip ZX279131+MT7976+MT7916
Uplink rate 2.5Gbps
Downlink rate 10Gbps
WiFi Transmission rate 3000Mbps
operating system Linux
Indicator light power supply, registration, optical port, Internet access, network port 1~4, wireless, telephone (optional)
Antennel 5 antennal
wireless bandwidth

5G:20M/40M/80M/160M

2.4G:20M/40M

Function

 TR069,APPcore remote control,andlink Smart Home Management,Real-time monitoring of soft probe data

packing list

OUN*1pcs,manual*1pcs,power adapter*1pcs
