Specifications
Brand Name :
Chen'yi
Model Number :
MDI-PTMEG-1
Place of Origin :
Chian
MOQ :
3mt
Price :
45-55RMB/KG
Payment Terms :
TT/Wechat/Alipay
Packaging Details :
25KG, 200KG
Sample :
Accepted
MOQ :
250KG
custom :
Accepted
Cerfification :
Rohs /Reached/CE/ISO
Main product :
Polyurethane Sponge Adhesive
Main product 2 :
Rubber Adhesive
Main product 3 :
Polyurethane Adhesive for Plastic Tracks
Address :
Jiangmen Guangdong province
Description
Key materials castable polyurethane elastomers Noise-Reduction PU Adhesive for Vehicle Interior Parts
Polyurethane Elastomer (MDI-Polyester Type) – Durable & Versatile Industrial-Grade Material

Polyurethane Two-component Solvent-free Adhesive - UNI-BOND 3000 A/B (2-k system)

This product is a two-component, solvent-free, environmentally friendly adhesive. It has passed SGS certification, European and American ROHS standards, phthalate testing, and Shenzhen’s “Quality Control Standard for Synthetic Material Sports Surface Layers.” It is primarily used for bonding various rubber floors, prefabricated running tracks, PVC floors, wooden floors, ceramics, and aluminum honeycomb panels. It is widely applied in industrial and civil settings such as gyms, libraries, sports venues, soundproofing building materials, and more.

Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery

Technical Specifications
Product Series MDI-PTMEG
model M240/60D M240/95A M240/90A M240/85A M240/80A
NCO% 11.25 9.2 8.2 5.95 5.4
VIS/70C 350.00 450.00 500.00 1300.00 1700.00
CURATIVE BDO BDO BDO BDO BDO
RATIO 11.30 9.30 8.30 6.00 5.50
POT LIFE 3MIN 4MIN 6.5MIN 12MIN 15MIN
HARDNESS 60D 96A 93A 83A 81A
TENSILE STRENGTH 38 42 42 35 35
ELONGATION 410 450 420 450 480
Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Key Features & Technical Highlights
Balanced Hardness & Flexibility

Spans from rigid (95A) to flexible (75A), suitable for products requiring structural support or impact absorption.

Example: T150/95A is ideal for high-stress rollers, while T150/75A is perfect for soft-grip handles.

Superior Mechanical Properties

Maintains solid tensile strength (up to 55 MPa) and significant elongation (up to 520%), ensuring resilience under mechanical stress and repeated use.

Offers good tear resistance and abrasion resistance, contributing to long product life.

Controlled Processability

Pot life ranges from 3.5 to 18 minutes, providing flexibility for various manufacturing processes, from quick casting to detailed molding.

Viscosity at 70°C is optimized for processing, ranging from 650 to 2500 cP, facilitating easy handling and molding.

Eco-Friendly Advantage (Biodegradability)

The PCL-based structure offers a degree of biodegradability under specific conditions, making it a more sustainable choice for environmentally conscious products.

Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Industrial & Consumer Applications
Application Scene Recommended Model Performance Advantage
Marine & Offshore Equipment M240/60D / M240/95A Excellent hydrolysis resistance protects against saltwater corrosion, ideal for seals, buoys, and cable jackets.

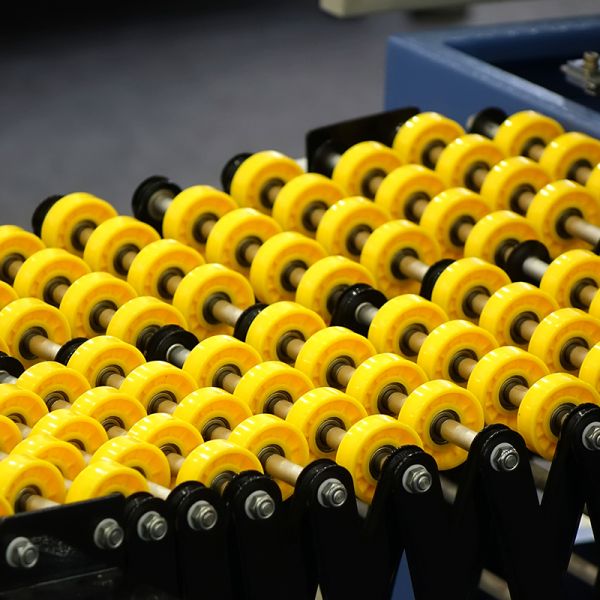

High-Performance Rollers M240/90A / M240/85A High resilience and abrasion resistance ensure long life in printing, paper, and textile machinery rollers.
Hydraulic Seals & Gaskets M240/85A / M240/80A Low compression set and flexibility ensure reliable sealing in hydraulic and pneumatic systems, even at low temperatures.
Mining & Material Handling M240/95A / M240/90A Superior wear and tear resistance extend the life of screening panels, chute liners, and conveyor belt scrapers.
Shock Absorption Components M240/85A / M240/80A High elasticity and elongation effectively absorb impact energy in machinery mounts and vibration dampers.

Why Choose Our MDI-PTMEG Elastomer?
  • Longevity in Harsh Conditions: Offers 3–5x longer service life than standard polyester urethanes in wet and humid environments.
  • Material Versatility: Suitable for demanding industries such as marine, mining, material handling, and food processing.
  • Customization: Adjustable NCO% (5.4–11.25%) and curing ratios allow for precise customization to meet specific operational requirements.
Technical Support & Services

We provide comprehensive technical support, including material selection guidance and process optimization recommendations. Download our detailed technical datasheet for complete curing parameters and safety handling instructions.

Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Loading and Packaging Process

We offer flexible packaging solutions to meet your needs, whether you're testing a sample or preparing for large-scale production.

Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Company Overview
Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Quality Assurance & Research
Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Manufacturing & Storage
Tpu Elastomer Polyurethane Seals / Gaskets for Heavy Duty Machinery
Frequently Asked Questions
What is the target application for your prepolymer?
Please specify your industry and end-use, e.g., footwear (soles), industrial rollers, seals, or other elastomeric components. This helps us recommend the optimal formulation and curing system.
What are your specific performance requirements?
Please indicate your target values for hardness (Shore A/D), tensile strength, elongation at break, and abrasion resistance. Our standard M240/60D offers excellent specifications, but we can customize to meet your needs.
Do you require a specific curing agent or system?
We typically recommend BDO or other curatives. Let us know if you have a preferred curative or if you need technical assistance in selecting the best one for your process.
What is your required sample quantity for testing and evaluation?
We provide free samples (typically 1-2 kg) for R&D purposes. Please specify the quantity needed to conduct your initial trials.
What certifications or quality standards are mandatory for your project?
Our products are SGS and ROHS certified. Inform us if you need additional certifications like ISO, REACH, or specific industry standards.
What is your estimated monthly or annual consumption volume?
Providing your forecasted volume (kg/month or tons/year) allows us to structure the most competitive pricing and ensure supply chain stability.
What is your target price per kilogram?
While we strive to offer the best value, sharing your budget helps us find a solution that meets both your performance and cost requirements.
Do you require technical support during the product development or production phase?
Our technical team can provide guidance on formulation optimization, processing parameters, and troubleshooting. Let us know your level of support needed.
