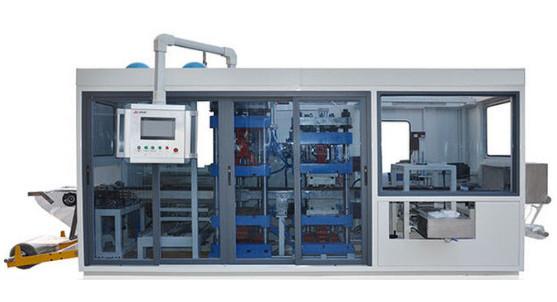

780mm X 620mm Plastic Thermoforming Machine 35 Times/Min Speed High Transparent
780mm X 620mm Plastic Thermoforming Machine 35 Times/Min Speed High Transparent
Specifications
Model Number :
TTF-A
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Price :
Depends on different model
Packaging Details :
Without package or wooden
Certification :
CE
Automatic :
Automatic
HS Code :
8477590000
Structure :
Forming
Mainly Used :
Plastic trays, containers, boxes, lids
Speed :
35 times/min
Forming Area :
780mm X 620mm
Description

Description Of TTF-A Series :

TTF series is mainly used to produce all kinds of high transparent, high tensile turn-up and flat products. Which combined forming,cutting and stacking in one line.

Main Technical Paraments
Model TTF-400A TTF-520A TTF-780A
Max. Forming Area 400 x 300mm 520 x 400mm 780 x 620mm
Max. Forming Depth 60mm 100mm 100mm
Sheet Thickness 0.3-1.8mm
Max. Forming Speed 35times/mins 30times/mins 26times/mins
Air Pressure 0.6-0.8Mpa
Air Consumption 2m³/min 3m³/min 3.6m³/min
Water Consumption 0.7m³/h
Max. Sheet Width 450mm 570mm 810mm
Suitable Sheet PP, PS, PET, PVC, HIPS etc.
Rated Power 58kw 100kw 195kw
Power Supply AC, 380V, 50Hz Three-phase four-wire
Procedure Forming-Cutting-Stacking
Dimension (LxWxH) 6000x4000x2500 9700x4600x2700 12000x2800x2800
Weight 5.2T 9T 15T


Advantages :

  1. Forming, punching,cutting and stacking in one line.
  2. Driven by servo motor, stable operation, low noise, high efficiency.
  3. Suitable for producing plastic trays, containers, boxes, lids, etc.
Machine Main Parts
Touch Screen, PLC, Air Switch Delta, Taiwan
Servopack, Servo Motor Delta, Taiwan
Circuit Breaker, AC Contact Schneider, France
Cylinder AirTAC, Taiwan
Heater Epstein, Germany
Proximity Switch Turck, Germany
Forming Valve MAC, America
Filter CKD, Japan
