Single Panel Plastic Extrusion Line With Double Working Position Screen Changer Penetrating Type Bolts
Single Panel Plastic Extrusion Line With Double Working Position Screen Changer Penetrating Type Bolts
Specifications
Model Number :
JW-DB
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Depends on different model
Payment Terms :
L/C, T/T
Supply Ability :
4 sets / 90 days
Delivery Time :
90 days
Packaging Details :
Without package or wooden
Panel :
Single
Working Poistion :
Double
Condition :
New
Warranty :
1 Year
Automatic grade :
Automatic
Name :
HDPE/MDPE Plastic Pipe Making Machine Extrusion Production Line
Description

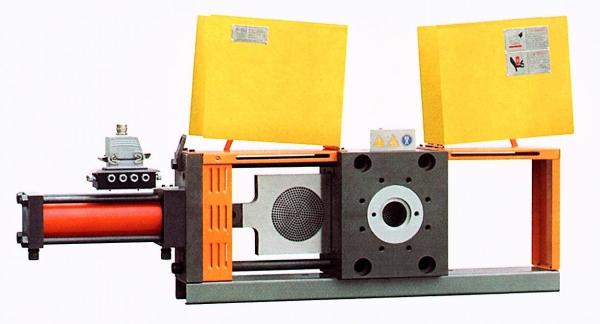

Single-Panel With Double Working Position Screen Changer Penetrating Type Bolts

Descriptions :

  • Extruder screw can draw from the screen changer directly, it’s convenient to remove and clean.

  • Adopts advanced pressure adaptive sealing technology, through the pressure of polymers to drive seal components, to achieve the best sealing effect and change screen more quickly.

  • Penetrating type bolts connect the extruder.

  • Modular combinations, suitable for different standard extrusion machine and convenient to clean.

  • Inner heating device for safe and energy-saving. Fully enclosed wires for elegant appearance.

Main Technical Parameters
Model Output(kg/h) Filter Size(mm) Filtration Area (mm²) Withstanding Pressure(Mpa) Heating Zone Heating Power
JW-DB-50 50-100 ⌀55 1960 30 2 5
JW-DB-70 80-150 ⌀75 3850 30 2 6
JW-DB-100 150-350 ⌀105 7850 30 3 6
JW-DB-120 250-400 ⌀125 11300 30 3 6.4
JW-DB-150 350-600 ⌀155 17670 25 3 7
JW-DB-180 450-1000 ⌀185 25440 25 3 8
JW-DB-200 550-1300 ⌀205 31415 20 3 12
JW-DB-250 850-1700 ⌀255 49087 20 3 13
JW-DB-300 1100-2000 ⌀205 70685 20 3 14
