High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables
Specifications
Model Number :
polyester yarn
Brand Name :
longtai
Place of Origin :
Jiangxi, China, GUA
MOQ :
1000
Price :
$1.30-1.80
Denier :
1000D
Linear Density :
1110 tex
Length Per Kilogram :
9000 m/kg
Breaking Strength :
≥65 N
Elongation :
≥13% (Standard), ≥22% (Low shrinkage)
Heat Shrinkage :
4-6% (Standard), 0.5-1.5% (Low shrinkage)
Material :
100% Polyester
Yarn Type :
Non-twisted
Bobbin ID :
95, 128 mm (Standard), 52, 76 mm (Optional)
Bobbin Height :
170, 185, 200, 215 mm (Standard), 110, 285 mm (Optional)
Yarn OD :
200-250 mm
Yarn Weight :
2-6 kg
Core Material :
Paper
Max RPM :
4000 rpm
Dual Form :
Available (2×1000D, 2×1500D, 2×2000D)
Description

High Tenacity Polyester Binder Yarn 1000D 1110 Tex as binder for optical cables

Product Description

POLYESTER BINDER YARN

Polyester yarns are manufactured from first quality materials. Used mainly as binder for optical cables, they have very high tenacity and minimal shrinkage. We deliver the yarn wound on cardboard tube, under high pressure to allow the yarn to be used with high-speed servers. Each type has standard or low shrinkage to choose. Polyester yarn is non-twisted.


It can be also delivered under DUAL form with 2 independent yarns wound in the same tube, doubling your machine capacity.

We develop and produce binder yarns to meet the development of fiber optic cable design. Today’s small and compact cables offer little or no margin for material shrinkage. Therefore, we have introduced an ultra-low shrinkage polyester binder yarn. The range of binder yarns also includes a swellable WB binder yarn.

Available Colors: White, Red, Yellow, Black

Specification

Standard & Low shirinkage

Weight
(Denier)		 Linear Density
(tex)		 Length Per Kilogram
(m/kg)		 Breaking Strength
(N)		 Elongation
(%)		 Heat Shrinkage
(177°C, 10min, pre-tension 0.05cN/dtex)
(%)
1000 1110 9000 ≥65 ≥13 (Standard yarn), ≥22(Low shrinkage yarn) 4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn)
1500 1660 6000 ≥95
2000 2220 4500 ≥125
3000 3330 3000 ≥185


Dual Form

Weight
(Denier)		 Linear Density
(tex)		 Length Per Kilogram
(m/kg)		 Breaking Strength
(N)		 Elongation
(%)		 Heat Shrinkage
(180°C, 10min)
(%)
2×1000 2x1110 9000 ≥65 ≥13 (Standard yarn), ≥22(Low shrinkage yarn) 4-6 (Standard Yarn), 0.5-1.5 (Low shrinkage yarn)
2x1500 2x1670 6000 ≥95
2x2000 2x2220 4500 ≥125

Values shown are for references only. For more accurate figures, please ask for technical data sheets.

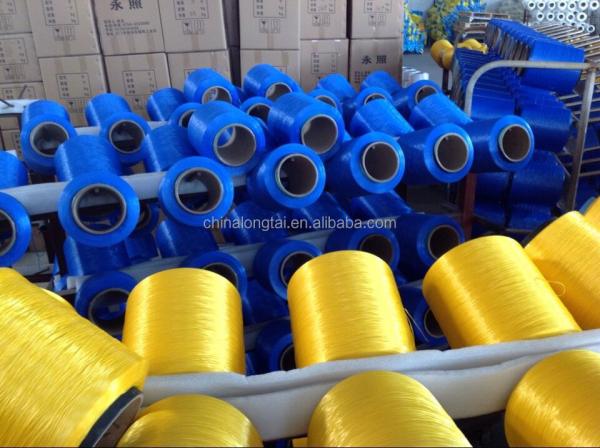

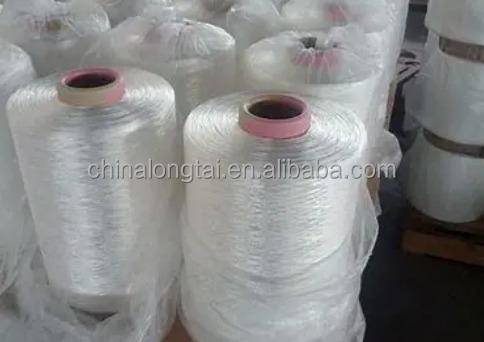

Product show

High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical CablesHigh Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical CablesHigh Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables

Packaging & Shipping

Bobbin ID
(mm)		 Bobbin Height
(mm)		 Yarn OD
(mm)		 Yarn Weight
(kg)		 Core
Standard 95, 128 Standard 170, 185, 200, 215 200-250 2-6 Paper
Optional 52,76 Optional 110, 285
Application

Polyester Binder Yarn is used for binding of SZ-stranded optical fibers at high speed. They are available in Low Shrinkage (LS) and Ultra Low Shrinkage (ULS) versions.

High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables

Key features

  • High grade polyester
  • Spool may exceed 4000 rpm
  • Dual-end versions available
  • Ultra low shrinkage version available
  • Optimal use in concentric binders

FAQ
1.Q: Can we change it to our own logo?

A: Sure, we can help you to add your logo and free desigh for you.

2.Q:What is your products' quality?

A: Our factory has advanced machines, we can produce yarn in conical cone machines directly, and the yarn will be much more even and have better strength. Quality guarantee, the bulk cargo will be definitely same as the samples.

3.Q:Can you offer samples?

A:Of course, we can offer free sample, but the shipping cost will be your own account.

4.Q:Do you have after-sales service?

A: Yes, we can offer you after-sales service,And you can contact us if you have any question.

5.Q:How long can I get the price?

A:The Prices will be quoted within 24hours after we get your inquiry with detailed information.

Company Information

High Tenacity Polyester Binder Yarn 1000D 1110 Tex for Optical Cables

Jiangxi Longtai New Material Co., Ltd. was established in April 2002.The company successfully Listed in China OTC market in Oct.,2015 with Stock No. 836898.Specialized in the development and sales of all kinds of New Materials, Wire & Cable Materials, and Agriculture Products.The Factory monthly output can achieve 1000Mts and more than 30% of the products are exported to Europe, America, Japan,Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company:such as ROHS, REACH-SVHC, Halogen Free. We always sincerely welcome any domestic and overseas customers with great enthusiasm.
